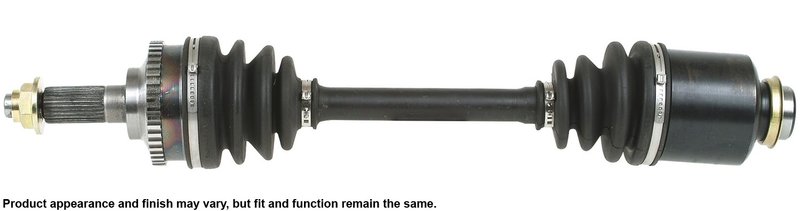

Cardone 66-8075 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Mazda Millenia

Cardone CV Axle Assembly 66-8075 is a new front right driveline replacement for select Mazda Millenia applications. It is built with attention to axle straightness, boot durability, and seal integrity to support smooth operation and reduced vibration.

Key Features

• Fits 1995-2002 Mazda Millenia, front right
• Fits 1995 Mazda Millenia, front right, from chassis #138177
• ABS ring included with 44 teeth
• Splined input and output shaft connection style with 28 splines on each end
• Compressed length: 23.125 in.
• Spindle nut included; 32 mm hex head, M22 x 1.5 thread, stake-style locking type
• New axle retaining nut supplied for installation
• Neoprene boot design with added bellows where needed to resist cracking and stress
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease is used for long-term joint protection

Product Details

Cardone engineers its CV drive axles to address common failure points found in original units, including boot cracking, grease loss, contamination, and vibration from shaft runout. Each shaft is individually verified for straightness to help maintain vibration-free performance at speed. For Mazda Millenia front right service, part number 66-8075 provides a direct replacement solution that supports ABS function through the included tone ring and maintains proper driveline geometry.

This part cross-references Mazda OE numbers GF012550X and GR052550XA for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during turns
• Grease leakage around the axle boot or suspension area
• Front-end vibration during acceleration
• ABS warning light after axle replacement when the sensor ring is damaged or missing
• Grinding or binding caused by a worn outer CV joint

Installation Notes

• Do not let the axle hang unsupported during service.
• Use a torque wrench and tighten the spindle nut to the vehicle manufacturer’s specification.
• Do not reuse the old prevailing-torque lock nut; install the supplied new nut.
• Replace transaxle seals when servicing CV axle assemblies to help prevent leaks.
• Inspect ABS sensor wiring and the ring during installation to avoid signal issues.

Quality Assurance

Cardone’s CV axle engineering process focuses on fit, runout control, and boot durability to help the assembly meet OE-level performance expectations. The brand’s testing and verification process is designed to support consistent driveline operation in Mazda Millenia front right applications.
