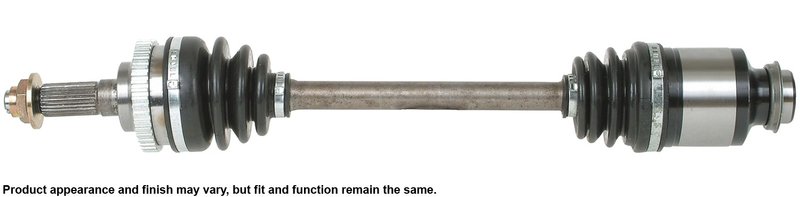

Cardone 66-8112 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Kia Sephia

Cardone 66-8112 is a new CV axle assembly engineered for front right applications on the 1995-1997 Kia Sephia. Built for OE-style driveline performance, this axle is designed to deliver smooth power transfer, stable operation, and reliable fitment for the Kia Sephia front right CV axle replacement job.

For shoppers searching for a 1995 Kia Sephia front right CV axle, a 1996 Kia Sephia axle assembly, or a 1997 Kia Sephia CV drive axle, this Cardone unit combines application-specific dimensions with verified shaft straightness for reduced vibration.

Key Features

• Part number 66-8112 CV axle assembly for front right fitment
• Fits 1995-1997 Kia Sephia, front right
• ABS ring included with 44-tooth count
• Compressed length: 24.25 in.
• Splined input shaft with 28 splines
• Splined output shaft with 26 splines
• Spindle nut included; M22 x 1.5 thread size, 32 mm hex head
• Stake-style axle nut locking type
• Neoprene boot design with added bellows where needed to resist cracking and stress
• High-temperature, high-torque grease for driveline service
• Transmission seal diameter is precision-machined after heat treatment for proper sealing

Product Details

Cardone’s CV axle assembly line is built around testing and engineering practices developed from original-drive-axle failure analysis. The result is a replacement axle designed to address common wear points such as boot cracking, seal wear, and vibration from shaft runout. Each shaft is individually verified for straightness to help maintain smooth operation at speed, while the boot and clamp design support a secure seal at the joint.

This part cross-references Kia OE numbers OK24T25500 and OK24V2550X for the same application. Cardone 66-8112 is a direct-fit driveline service part for the Kia Sephia front right position.

Common Problems This Part Can Address

• Clicking or snapping during turns from a worn outer CV joint
• Grease leakage around the axle boot or suspension area
• Vibration during acceleration caused by axle runout or imbalance
• ABS warning light issues related to a damaged sensor ring or axle-mounted ABS components
• Grinding or thumping noises from a failing front axle assembly

Installation Notes

• Fits 1995-1997 Kia Sephia, front right.
• Do not let the axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the retaining nut and tighten to the vehicle manufacturer’s specification.
• Do not reuse a prevailing-torque lock nut; replace it during installation.
• Install new transaxle seals when replacing CV axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone engineers its CV drive axles to meet or exceed OE performance targets through application-specific testing, straightness verification, and improved boot and seal design. The 66-8112 is a new part and includes the components listed in the product data for a complete axle replacement.
