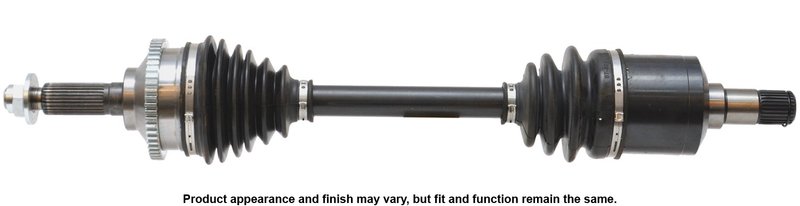

Cardone 66-8128 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Kia Sedona

Cardone 66-8128 is a new CV axle assembly engineered for front left applications on select 2002-2005 Kia Sedona models. It is built with attention to axle straightness, boot durability, and seal integrity to support smooth driveline operation and consistent ABS performance.

Key Features

• Fits 2002-2005 Kia Sedona, front left
• ABS ring included with 54 teeth for proper speed signal operation
• New axle retaining nut supplied for service convenience
• Splined 28-tooth input and output shaft connections
• Compressed length: 26.375 in.
• Stake-style spindle nut locking design; 32 mm hex head, M22 x 1.5 thread
• Neoprene boot design with added bellows where needed to reduce stress and cracking
• High-temperature grease formulated for driveline heat and torque loads
• Boot clamps are pneumatically crimped for a secure seal
• Transmission seal diameter is precision-machined after heat treatment for proper sealing

Product Details

Cardone’s CV axle program is based on testing and engineering methods developed to address common causes of CV joint failure. For this application, the axle shaft is individually verified for straightness to help reduce vibration, while the boot and grease package are selected to support long service life under driveline load. The Cardone 66-8128 is a direct replacement choice for Kia Sedona front left axle service, and it cross-references Kia 0K52Y25600 and 1K52Y2560X for the same application.

Common Problems This Part Can Address

• Clicking or snapping noise during turns from a worn outer CV joint
• Grease leakage from a ruptured boot
• Vibration caused by axle runout or shaft imbalance
• ABS warning light triggered by a damaged sensor ring or related axle component
• Thumping or driveline vibration from a failing front axle assembly

Installation Notes

• Fits 2002-2005 Kia Sedona, front left.
• Do not let the axle hang unsupported during service; this can damage the inner joint.
• Use a torque wrench on the spindle nut and tighten to the manufacturer specification.
• Do not reuse a prevailing-torque lock nut; install the supplied new nut.
• Replace transaxle seals when servicing CV axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone designs its CV drive axles to meet or exceed original equipment performance targets through application-specific engineering and inspection. Each shaft is checked for straightness to help ensure vibration-free operation at speed, and the boot and seal details are built to support reliable driveline service.
