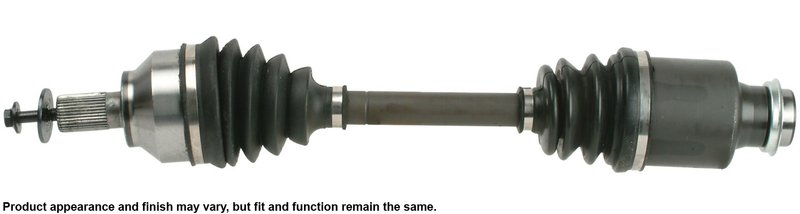

Cardone 66-8163 CV Axle Assembly - Front Right

Cardone CV Axle Assembly for Mazda 3

Cardone CV Axle Assembly Part Number 66-8163 is a new front right driveline replacement for select 2004-2005 Mazda 3 applications. It is engineered for OE-level fit and smooth operation, with attention to axle straightness, boot durability, and seal performance.

Key Features

• Fits 2004 Mazda 3, front right
• Fits 2005 Mazda 3, front right, before 01/06/2005
• ABS ring included for proper wheel speed signal integration
• New axle retaining nut supplied for installation
• Neoprene boots use added bellows where needed to reduce stress and ozone cracking
• Shafts are individually verified for straightness to help reduce vibration
• High-temperature grease is formulated for torque and heat demands
• Transmission seal diameter is precision-machined after heat treatment for consistent sealing
• Input shaft connection style: splined, 28 spline count
• Output shaft connection style: splined, 36 spline count

Product Details

This Cardone CV axle assembly is built for the front right position on the Mazda 3 and is designed around the failure points commonly seen in original CV axles. Cardone’s CV Drive Axle line focuses on boot durability, joint protection, and shaft runout control to support smooth driveline operation. Part number 66-8163 includes an ABS ring and spindle nut, making it a practical replacement for a worn or noisy axle on the 2004 Mazda 3 and 2005 Mazda 3 before 01/06/2005.

This part cross-references Mazda OE numbers such as GG252550XB and GG2525500C for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during turns
• Grease leakage around the axle boot and suspension area
• Front-end vibration during acceleration
• ABS warning light after axle replacement when the sensor ring is damaged or missing
• Grinding or wobble from a worn outer CV joint

Installation Notes and Tips

• Fits 2004 Mazda 3, front right, and 2005 Mazda 3, front right, before 01/06/2005
• Do not let the axle hang unsupported during service; this can damage the inner joint
• Use a torque wrench on the retaining nut and tighten to manufacturer specifications
• Do not reuse a prevailing-torque lock nut
• Install new transaxle seals when replacing CV axle assemblies to help prevent leaks
• Inspect the ABS sensor, wiring, and ring during installation to avoid speed signal issues

Quality Assurance

Cardone engineers and tests CV drive axles to address common OE failure causes, including boot cracking and shaft runout. Each shaft is verified for straightness to support vibration-free performance at speed, and the boot and seal design is built for consistent driveline service life.
