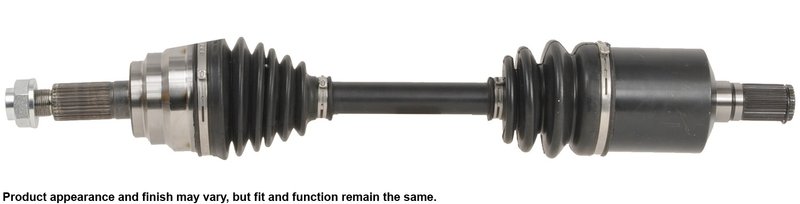

Cardone 66-8195 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Mazda 6

Restore smooth driveline operation with this Cardone CV axle assembly, part number 66-8195. It is built for the front left position on 2009-2013 Mazda 6 models and is engineered to deliver vibration-free performance with OE-style fit and function.

Cardone’s CV axle engineering focuses on the common causes of axle and boot failure, helping support long service life in daily driving conditions. For Mazda 6 front left CV axle replacement, 66-8195 provides a direct-fit solution with the details buyers look for in a reliable driveline repair.

Key Features

• Fits 2009-2013 Mazda 6, front left
• Part number 66-8195 for easy identification
• New axle retaining nut included for installation convenience
• 31-spline input and 31-spline output shaft connection
• Self-lock axle nut locking type
• 36mm spindle nut hex head size with M24 x 1.5 thread
• Neoprene boots with added bellows where needed to resist stress and cracking
• Boot clamps are pneumatically crimped for a secure seal
• High-temperature, high-torque grease supports dependable joint operation
• Shafts are individually verified for straightness to help reduce vibration

Product Details

Cardone CV axle assemblies are engineered from testing and remanufacturing experience to address repeat failure points found in original drive axles. This assembly uses precision-machined sealing surfaces after heat treatment, helping promote long seal life, while the verified shaft straightness supports smooth operation at speed. The result is a front left Mazda 6 CV axle replacement designed around driveline durability and consistent performance.

This part cross-references Mazda GP402560X for the same application. If you are searching for a 2009-2013 Mazda 6 front left CV axle assembly, Cardone 66-8195 is the direct replacement to review.

Common Repair Symptoms

• Clicking or snapping noise during turns
• Grease on the chassis or suspension from a torn boot
• Grinding noise from the front end while driving
• Vibration or thump during acceleration
• Wobble or binding during cornering

Installation Notes

Do not let the CV axle hang unsupported during service, as this can damage the inner joint. Always replace the axle nut rather than reusing a prevailing-torque lock nut, and torque the new nut to the manufacturer specification with a torque wrench. When replacing CV drive axle assemblies, install new transaxle seals to help prevent leaks. If the ABS warning light appears after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone builds this CV axle assembly using engineering and inspection practices focused on OE-level performance. Each shaft is checked for straightness, and the assembly uses materials and sealing details selected to support reliable driveline operation in the Mazda 6 application.
