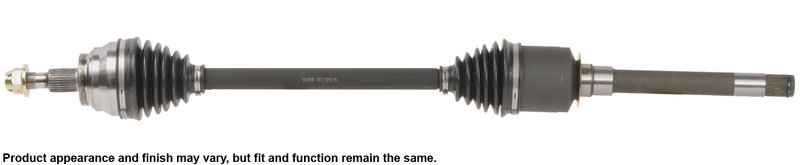

Cardone 66-9296 CV Axle Assembly - Front Right

Mercedes-Benz Front Right CV Axle Assembly

Restore smooth power transfer with the Cardone CV Axle Assembly, part number 66-9296, for select Mercedes-Benz GL-Class and M-Class applications. This front right axle is built for direct replacement service and is engineered to address common CV axle failure points such as boot cracking, grease loss, and vibration.

Key Features

• Fits select 2006-2012 Mercedes-Benz GL350, GL450, GL550, GL320, ML350, ML450, ML550, ML320, ML500, and ML63 AMG front right applications
• Cardone CV Axle Assembly, part number 66-9296
• ABS ring included for proper wheel speed signal operation
• New axle retaining nut included for service convenience
• Neoprene boots use added bellows where needed to help resist stress and ozone cracking
• High-temperature, high-torque grease supports long-lasting joint performance
• Shafts are individually verified for straightness to help reduce vibration
• Boot clamps are pneumatically crimped for a secure seal
• Transmission seal diameter is precision-machined after heat treatment for proper sealing surface finish

Product Details

Cardone’s CV axle engineering focuses on the failure points that commonly affect original equipment units. The boot design, grease selection, and shaft verification process are all aimed at delivering consistent driveline operation under everyday load and highway speed. This makes the 66-9296 a practical replacement for Mercedes-Benz GL350, GL450, GL550, ML350, ML450, ML550, ML320, ML500, and ML63 AMG front right service where OE-style fit and function matter.

This part cross-references Mercedes-Benz OE numbers 1643301901 and 1643302401 for the same application.

Common Problems This Part Can Address

• Clicking or snapping noises during turns
• Grease on the chassis or suspension from a torn CV boot
• Front-end vibration during acceleration
• ABS warning light after axle replacement if the sensor ring is damaged or missing
• Grinding or binding caused by worn CV joints

Installation Notes

• Fits 2010-2012 Mercedes-Benz GL350, front right
• Fits 2007-2012 Mercedes-Benz GL450, front right, without Off Road Package
• Fits 2011-2012 Mercedes-Benz GL550, front right
• Fits 2011 Mercedes-Benz ML350, front right
• Fits 2010-2011 Mercedes-Benz ML450, front right
• Fits 2011 Mercedes-Benz ML550, front right
• Fits 2007-2011 Mercedes-Benz ML63 AMG, front right
• Fits 2008-2010 Mercedes-Benz GL550, front right, without Off Road Package
• Fits 2006-2010 Mercedes-Benz ML350, front right, without Off Road Package
• Fits 2008-2010 Mercedes-Benz ML550, front right, without Off Road Package
• Fits 2009 Mercedes-Benz GL320, front right, without Off Road Package
• Fits 2009 Mercedes-Benz ML320, front right, without Off Road Package
• Fits 2007-2008 Mercedes-Benz GL320, front right
• Fits 2007-2008 Mercedes-Benz ML320, front right
• Fits 2008 Mercedes-Benz ML550, front right, with Off Road Package
• Fits 2006-2007 Mercedes-Benz ML500, front right

Do not let the axle hang unsupported during service, as this can damage the inner joint. Use a torque wrench on the spindle nut and tighten to manufacturer specifications; do not use an impact wrench for final installation. Replace the prevailing torque lock nut rather than reusing the old one, and install new transaxle seals when replacing CV drive axle assemblies.

Quality Assurance

Cardone applies CV axle testing and engineering methods developed to meet or exceed OE performance targets. Each shaft is checked for straightness and runout to help prevent vibration, and the boot and seal details are designed to support durable, leak-resistant operation.
