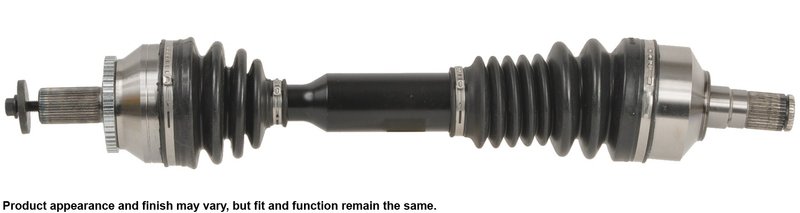

Cardone 66-9338 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Volvo XC90

Restore front-end driveline performance with this Cardone CV axle assembly, part number 66-9338. It is built for the front left position on select Volvo XC90 models and is engineered to address common causes of CV axle failure, including boot cracking, grease loss, and vibration.

Compatible with 2007-2014 Volvo XC90 front left applications, this CV axle assembly is designed for direct replacement service on the specified chassis breakpoints. Cardone’s CV axle engineering focuses on straightness verification, seal durability, and joint protection for consistent operation in daily driving.

Key Features

• Part number 66-9338 for select Volvo XC90 front left applications
• ABS ring included with 48 teeth for proper speed signal operation
• New axle retaining nut supplied for service convenience
• Neoprene boot design with added bellows where needed to reduce stress and cracking
• High-temperature, high-torque grease for joint protection under load
• Shafts individually verified for straightness to help reduce vibration
• Precision-machined transmission seal diameter after heat treatment for improved seal life
• Boot clamps are pneumatically crimped for a secure boot-to-housing seal

Product Details

Cardone’s CV axle assembly line is built around remanufacturing and engineering practices developed from CV drive axle testing. For this application, the axle uses a splined input shaft with 31 splines, a splined output shaft with 40 splines, and a bolt-style axle nut locking type. The compressed length is 21.692 inches, and the package includes the complete axle and instruction sheet. This part cross-references Volvo 36000509 and 36000937 for the same application.

Fits 2008-2014 Volvo XC90, front left. Fits 2011 Volvo XC90, front left, to chassis #597532. Fits 2007 Volvo XC90, front left, from chassis #367134. Fits 2007 Volvo XC90, front left, from chassis #354799. Use this Cardone 66-9338 axle when replacing a worn or noisy front left CV axle on the listed Volvo XC90 vehicles.

Common Problems This Part Can Address

• Clicking or snapping noise during hard turns and acceleration
• Grease leakage from a ruptured outer CV boot
• Front-end vibration caused by axle runout or shaft imbalance
• ABS warning light triggered by damaged sensor ring or related components during axle service
• Grinding or clunking from a worn outer CV joint

Installation Notes

• Do not let the CV axle hang unsupported during service; support the shaft to avoid joint damage.
• Use a torque wrench on the retaining nut and tighten to the vehicle manufacturer’s specification.
• Do not reuse a prevailing-torque lock nut; replace it with the supplied new nut.
• Install new transaxle seals when replacing CV axle assemblies to help prevent leaks.
• If the ABS light remains on after installation, inspect the sensor ring, sensor, and wiring for damage.

Quality Assurance

Cardone applies CV axle testing and engineering methods aimed at OE-level performance. Each shaft is checked for straightness and runout control to help deliver vibration-free operation across the speed range. The design also addresses common failure points such as boot cracking and seal wear for dependable service on Volvo XC90 front left driveline repairs.
