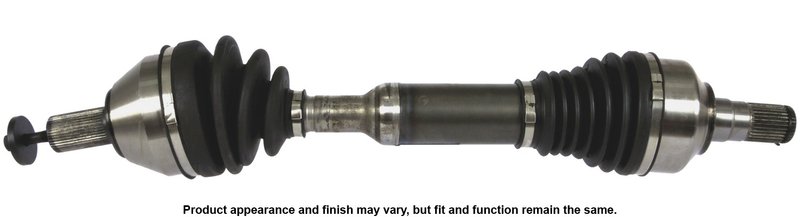

Cardone 66-9682 CV Axle Assembly - Front Left

Cardone CV Axle Assembly for Volvo XC60

Cardone 66-9682 is a new CV axle assembly for the front left position on select Volvo XC60 models. It is engineered for OE-style performance with attention to shaft straightness, boot durability, and seal fit for dependable driveline operation.

Key Features

• Fits 2010-2015 Volvo XC60, front left
• Fits 2016 Volvo XC60, front left
• New axle retaining nut included for installation convenience
• Neoprene boots with added bellows where needed to reduce stress and cracking
• High-temperature, high-torque grease for driveline service demands
• Boot clamps are pneumatically crimped for a secure boot-to-housing seal
• Shafts are individually verified for straightness to reduce vibration
• Input shaft: 31 splines; output shaft: 40 splines

Product Details

The Cardone CV Axle Assembly 66-9682 is built for the front left side of the Volvo XC60 and is designed around the common failure points seen in CV drive axles. Cardone uses engineering and testing methods focused on boot life, shaft runout control, and joint durability to help maintain smooth power transfer from the transaxle to the wheel. This part number, 66-9682, is a direct replacement choice for drivers servicing a Volvo XC60 front axle application.

This part cross-references Volvo 36001813 and 36002544 for the same application.

Common Repair Symptoms

• Clicking or snapping noise during turns
• Grease on the chassis, suspension, or inside wheel area
• Front-end vibration during acceleration
• Grinding noise from the front driveline
• ABS warning light after axle replacement if sensor components were disturbed

Installation Notes

• Do not let the CV axle hang unsupported during service.
• Use a torque wrench on the spindle nut and tighten to manufacturer specifications.
• Do not reuse a prevailing-torque lock nut; replace it with the supplied nut.
• Install new transaxle seals when replacing CV axle assemblies.
• Inspect nearby ABS sensor wiring and rings before final assembly.

Quality Assurance

Cardone builds this CV axle assembly with verified shaft straightness, precision-machined seal surfaces, and boot designs aimed at resisting cracking and contamination. The result is a replacement axle intended to maintain smooth, vibration-free operation in Volvo XC60 front left applications.
