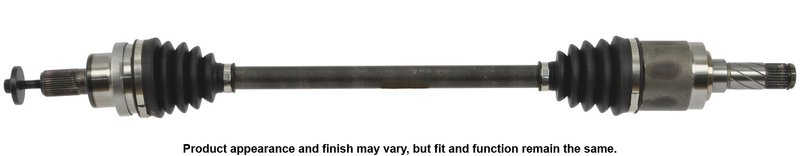

Cardone 66-9778 CV Axle Assembly - Rear Left or Rear Right

Cardone CV Axle Assembly for Volvo Rear Applications

Restore smooth power transfer with this Cardone CV axle assembly, engineered for rear Volvo applications with attention to straightness, seal integrity, and joint durability. Part number 66-9778 is built for Volvo S60, S80, V60, XC60, and XC70 rear left or rear right positions where a direct replacement CV axle is needed.

Key Features

• Fits rear left and rear right applications on select Volvo S60, S80, V60, XC60, and XC70 models
• ABS ring included with 44 teeth for proper wheel speed signal operation
• New axle retaining nut supplied for easier installation
• Splined input and output shaft connections for correct driveline engagement
• Neoprene boot design with added bellows where needed to reduce stress and cracking
• High-temperature, high-torque grease supports long-lasting joint performance
• Shafts are individually verified for straightness to help reduce vibration
• Transmission seal diameter is precision-machined after heat treatment for improved seal life

Detailed Description

Cardone 66-9778 is a new CV axle assembly designed for rear driveline service on Volvo vehicles. It is built around Cardone’s engineering approach to common CV failure points, including boot cracking, seal wear, and shaft runout. The assembly includes an ABS ring and spindle nut, and the axle uses a bolt-style locking nut design. With a compressed length of 29.45 inches, 26-spline input, and 36-spline output, it is specified for the listed rear positions on Volvo S60, S80, V60, XC60, and XC70 models.

This part cross-references Volvo 36000156 and 36000931 for the same application.

What It Helps Fix

• Clicking, snapping, or grinding noises from the rear driveline
• Grease leakage around the axle boot or chassis area
• Vibration caused by axle runout or shaft imbalance
• ABS warning light issues related to a damaged sensor ring or axle sensor area
• Binding or clunking from a worn rear CV joint

Installation Notes and Tips

Fits 2016 Volvo S60, rear right; 2016 Volvo S60, rear left; 2016 Volvo V60, rear left; 2016 Volvo V60, rear right; 2011-2015 Volvo S60, rear right; 2011-2015 Volvo S60, rear left; 2007-2015 Volvo S80, rear left; 2007-2015 Volvo S80, rear right; 2015 Volvo V60, rear right; 2015 Volvo V60, rear left; 2008-2015 Volvo XC70, rear right; 2008-2015 Volvo XC70, rear left; 2010-2014 Volvo XC60, rear right; 2010-2014 Volvo XC60, rear left.

Do not let the CV axle hang unsupported during service. Use a torque wrench on the retaining nut and replace the old prevailing-torque nut rather than reusing it. When replacing the axle, install new transaxle seals to help prevent leaks. If the ABS light remains on after installation, inspect the sensor ring, sensor, and nearby wiring for damage.

Quality Assurance

Cardone engineers and tests CV drive axles to meet or exceed original equipment performance targets. Each shaft is checked for straightness, and the boot and seal details are designed to address common failure causes seen in CV axle service.
