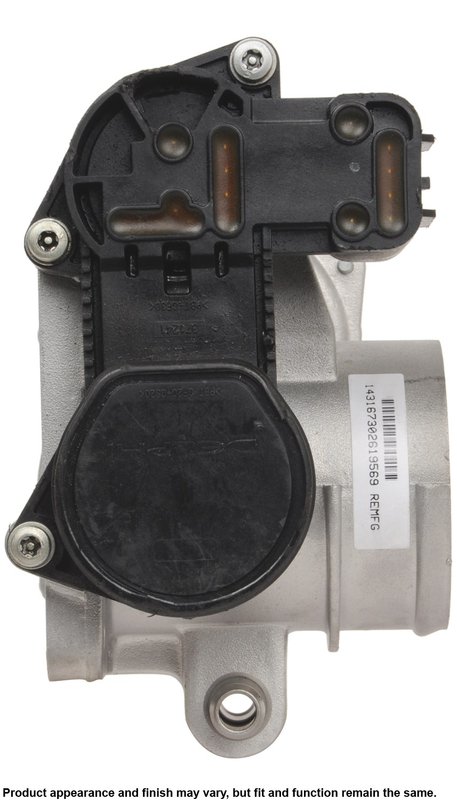

Cardone 67-3026 Fuel Injection Throttle Body

Remanufactured Electronic Throttle Body

The Cardone 67-3026 Fuel Injection Throttle Body is a remanufactured electronic throttle body built for precise air control and OE-style fitment. It is engineered for 2006-2008 Chevrolet Aveo and Aveo5, 2007-2008 Pontiac G3, 2006-2008 Pontiac Wave and Suzuki Swift+, plus 2006-2007 Pontiac Wave5 applications.

As part of the Cardone Fuel Injection Throttle Body line, this unit is remanufactured from an original equipment core and renewed to meet application-specific standards for drivability and throttle response.

Key Features

• Remanufactured original equipment-style throttle body for direct-fit replacement
• Electric throttle actuation with integrated throttle position sensor
• Round inlet and outlet design
• Aluminum housing with gray/unfinished finish
• Ultrasonic cleaning process helps preserve throttle bore shape for consistent airflow
• Final testing includes response time and airflow checks at multiple points
• High and low throttle position sensors are tested to match OE characteristics across the operating range
• Package includes the electronic throttle body and instruction sheet

Detailed Description

Cardone remanufactures each electronic throttle body through disassembly, inspection, cleaning, and renewal of worn or damaged components. Sensors, gears, connectors, and seals are evaluated and replaced as needed to restore reliable operation. The throttle body is then tested for critical functions so it can regulate incoming air accurately under normal driving and torque-management conditions. This part number, 67-3026, is a direct replacement for OE reference 96417720 on listed Chevrolet, Pontiac, and Suzuki vehicles.

This throttle body is used by the engine management system to control airflow for idle, acceleration, cruise control, traction control, stability control, and other torque-management functions. For 2006-2008 Chevrolet Aveo and Aveo5, as well as Pontiac G3, Pontiac Wave, Pontiac Wave5, and Suzuki Swift+, it provides the correct electronic throttle control architecture for the application.

What It Helps Fix

• Throttle response problems caused by a worn electronic throttle body
• Idle instability or erratic engine speed
• Check engine light related to throttle position sensor or throttle actuator faults
• Fail-safe or reduced-power operation triggered by throttle control errors
• Airflow inconsistency from a contaminated or damaged throttle bore

Installation Notes

• A relearn calibration procedure is necessary after installation of the replacement throttle body.
• Consult the vehicle service manual after installation for the correct relearn steps.
• Do not bypass the coolant hoses unless the OE service information specifically calls for rerouting.
• Throttle body spacers are not recommended for this application.
• Fits 2006-2008 Chevrolet Aveo, N/A; 2006-2008 Chevrolet Aveo5, N/A; 2007-2008 Pontiac G3, N/A; 2006-2008 Pontiac Wave, N/A; 2006-2007 Pontiac Wave5, N/A; and 2006-2008 Suzuki Swift+, N/A.

Quality Assurance

Cardone uses a proprietary remanufacturing process that evaluates each component against engineering standards before it is renewed or replaced. The throttle bore is cleaned with a specialized process to help prevent surface deformation, and every final assembly is tested for critical operating functions. The remanufacturing process also reduces the energy and raw material required to produce a new part by 80%.
