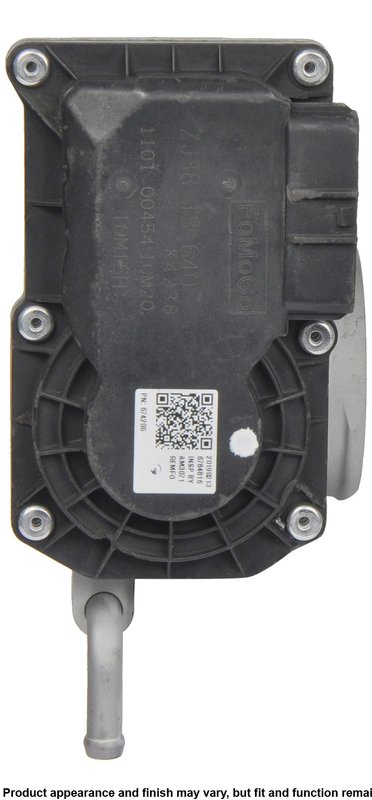

Cardone 67-4206 Fuel Injection Throttle Body

Electronic Throttle Body for Mazda 2

Cardone 67-4206 is a remanufactured electronic fuel injection throttle body built for 2011-2014 Mazda 2 applications. It restores throttle control with OE-style fitment, integrated sensor testing, and airflow verification for a direct replacement on the specified vehicle range.

Key Features

• Remanufactured original equipment replacement for a precise vehicle fit
• 45.00 mm bore diameter with round inlet and round outlet design
• Aluminum housing with steel and plastic components, finished in gray
• Integrated high and low throttle position sensors tested across the full operating range
• Airflow and response time tested at multiple points during final assembly
• Ultrasonic cleaning process helps preserve throttle bore surface geometry for proper airflow
• Package contents include the electronic throttle body and instruction sheet
• Cross-reference: Mazda ZJ3813640 for the same application

Product Details

This Cardone Fuel Injection Throttle Body, part number 67-4206, is remanufactured to match the original electronic throttle body used on the Mazda 2. The unit regulates incoming air through electric actuation and integrated position sensors, supporting engine idle control, acceleration response, and torque-management functions used by the vehicle’s control modules. Cardone’s remanufacturing process includes disassembly, inspection, renewal or replacement of worn components, and final functional testing to help deliver consistent operation.

Fits 2011-2014 Mazda 2, N/A. This part number 67-4206 is an OE replacement for drivers searching for a remanufactured throttle body for Mazda 2 2011-2014 models.

Common Issues This Part Can Address

• Throttle response problems caused by worn internal sensors or actuator components
• Check engine light triggered by electronic throttle body faults
• Fail-safe or reduced-power operation after throttle control failure
• Idle instability related to throttle bore or sensor wear
• Airflow inconsistency from contamination or bore surface damage

Installation Notes

A relearn calibration procedure is required after installation of the replacement throttle body. Consult the vehicle service manual for the correct reset and calibration steps before returning the Mazda 2 to service. Do not bypass the coolant hoses unless the OE application specifically calls for rerouting instructions; coolant routing is used to help prevent freezing in cold conditions where equipped.

Quality Assurance

Each Cardone remanufactured electronic throttle body is disassembled, inspected, and renewed or replaced as needed to meet engineering standards. The throttle position sensors are tested to match OE characteristics, and final assemblies are checked for response time and airflow at multiple points. The remanufacturing process also reduces raw material and energy use compared with producing a new part.
