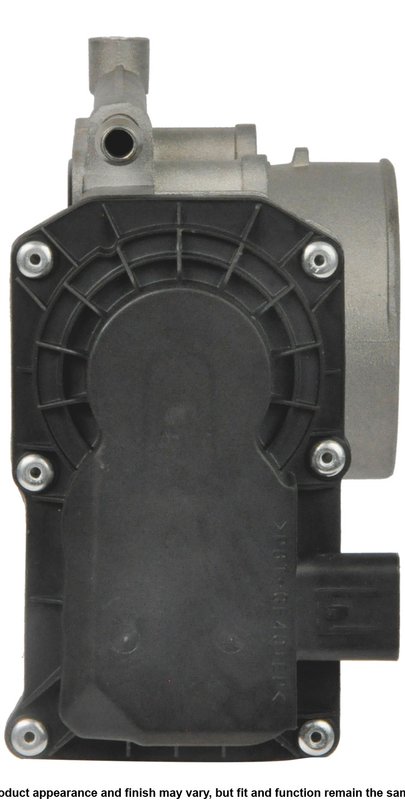

Cardone 6E-4204 Fuel Injection Throttle Body
| Brand | Cardone 6E-4204 |
|---|---|
| FAA_A1 | The new electronic throttle body is engineered and manufactured t |
| FAA_A10 | No, bypassing the coolant hoses is not recommended. there are cas |
| FAA_A11 | Not all throttle bodies have this feature, where the throttle val |
| FAA_A12 | The throttle body is also part of the cruise control, traction co |
| FAA_A2 | When installing the new electronic throttle body, there is no nee |
| FAA_A3 | The electronic throttle body is a powertrain component that has a |
| FAA_A4 | When an electronic throttle body fails, the controlling module wi |
| FAA_A5 | The most common failure in an electronic throttle body is the int |
| FAA_A6 | A relearn calibration procedure is necessary after installation o |
| FAA_A7 | Swapping your throttle body for one with a bigger bore is not rec |
| FAA_A8 | We do not sell throttle body spacers, nor do we recommend the use |
| FAA_A9 | The purpose of the attached coolant hoses is to keep the throttle |
| Product line | New Fuel Injection Throttle Body |
| Fits | Mazda · 7 vehicles |
OE-matched design. Engineered to match the original throttle body layout.
Complete assembly. Built and tested for quick installation and reliable performance.
No modifications needed. Installs without altering the vehicle.
Cross-references L32113640B, L32113640C and L32113640D for the same application. See all 6.
Electronic Throttle Body for Mazda 3, 5, and 6
Cardone New Fuel Injection Throttle Body 6E-4204 is a 100% new electronic throttle body built to match the original O.E. design and function. It is engineered for direct installation on select Mazda 3, Mazda 5, and Mazda 6 applications, with air metering and sensor operation calibrated for the vehicle’s engine management system.
Key Features
- Built as a complete assembly for quicker installation and consistent operation
- Matches O.E. design and dimensions for direct replacement use
- Integrated plate, motor, and position sensors regulate incoming air through PCM or TAC commands
- Designed for accurate airflow and engine performance across driving conditions
- No vehicle modification required for installation
- Relearn calibration procedure required after installation
Product Details
The Cardone New Fuel Injection Throttle Body line focuses on electronic throttle bodies manufactured to original-equipment standards for fit and function. Part number 6E-4204 is built and tested as a complete unit, helping ensure the throttle valve, motor, and integrated sensors work together as intended on the application. This part cross-references Mazda OE numbers such as L32113640B and L32113640C for the same application.
Compatible With 2004-2005 Mazda 3, N/A; 2006-2007 Mazda 5, N/A; and 2003-2005 Mazda 6, N/A. Search terms such as Mazda 3 throttle body replacement, Mazda 6 electronic throttle body, and Mazda 5 fuel injection throttle body all point to this direct-fit application. The part number 6E-4204 is also useful when verifying the correct replacement against the original unit.
Common Issues This Part Can Address
- Throttle response problems caused by a failing electronic throttle body
- Check engine light triggered by throttle position sensor faults
- Fail-safe or reduced-power operation after throttle body failure
- Unstable idle air control related to throttle valve or sensor wear
- Airflow errors that affect acceleration and engine performance
Installation Notes
Install the throttle body without modifying the vehicle. After replacement, perform the required relearn calibration procedure so the control module can relearn throttle position values. If the original unit used coolant hoses, follow the vehicle-specific routing instructions provided with the application; bypassing coolant hoses is not recommended. Some applications also use an ice-breaker function, but this feature is based on vehicle application and is not present on every throttle body.
Quality Assurance
Each Cardone 100% New electronic throttle body is manufactured and tested as a complete assembly to match O.E. design standards for fit, airflow, and sensor operation. The part number 6E-4204 is built for direct replacement on the listed Mazda applications, with components selected to align with original equipment requirements.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Mazda | 5 | — | — | N/A | New Fuel Injection Throttle Body |
| 2006 | Mazda | 5 | — | — | N/A | New Fuel Injection Throttle Body |
| 2005 | Mazda | 3 | — | — | N/A | New Fuel Injection Throttle Body |
| 2005 | Mazda | 6 | 2.3L | L4 | N/A | New Fuel Injection Throttle Body |
| 2004 | Mazda | 3 | — | — | N/A | New Fuel Injection Throttle Body |
| 2004 | Mazda | 6 | 2.3L | L4 | N/A | New Fuel Injection Throttle Body |
| 2003 | Mazda | 6 | 2.3L | L4 | N/A | New Fuel Injection Throttle Body |
