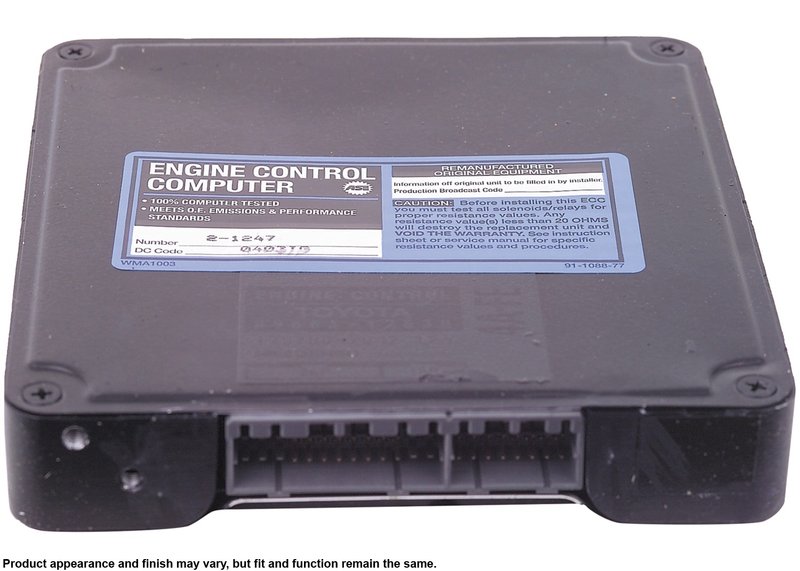

Cardone 72-1247 Engine Control Module

Remanufactured ECM for Toyota Corolla

Cardone 72-1247 is a remanufactured engine control module built for specific Toyota Corolla applications. It is designed to restore factory-style engine management with the correct connector layout, aluminum housing, and pre-programmed operation for listed vehicles.

Fits 1990-1993 Toyota Corolla, N/A. Fits 1992 Toyota Corolla, N/A. Fits 1993 Toyota Corolla, N/A. Fits 1990-1991 Toyota Corolla, N/A with Federal Emission System.

Key Features

• Remanufactured Original Equipment-style ECM for direct vehicle fit
• Cardone part number 72-1247 for listed Toyota Corolla applications
• 2 connectors with rectangle connector shape
• 16 and 26 terminal configurations with pin/male and blade/male terminals
• Aluminum housing for OE-style module construction
• Pre-programmed at the factory; no flash programming required
• Reverse-engineered remanufacturing process addresses original design weaknesses
• Critical components are re-soldered or replaced, then computer tested

Product Details

This Cardone Engine Control Module is part of the Cardone remanufactured electronic and powertrain control module line, which focuses on restoring OE-level function through inspection, repair, and testing. The module is built from a remanufactured original equipment core and validated for durability and performance before release. For Toyota Corolla owners searching for a replacement ECM, Cardone 72-1247 provides a direct-fit solution for the listed 1990-1993 applications, including Federal Emission System coverage where specified.

This part cross-references Toyota 8966112530 for the same application.

What It Can Help Fix

• Engine no-start conditions caused by a failed ECM
• Intermittent drivability problems tied to module faults
• Check engine light concerns related to control module failure
• Fuel and ignition control issues from damaged electronics
• Problems traced to poor internal solder joints or failed module components

Installation Notes

Before replacing the original ECM, verify the root cause of the failure. Common causes include poor grounds, power supply issues, wiring harness damage, and shorted solenoids or relays. Confirm the Toyota engineering or OE number matches the application before installation. This module is pre-programmed at the factory and does not require flash programming.

Quality Assurance

Each unit is computer tested, and application-specific validation is used to confirm durability and performance. Cardone’s remanufacturing process also reduces the energy and raw materials needed versus producing a new part, supporting a more efficient rebuild process.
