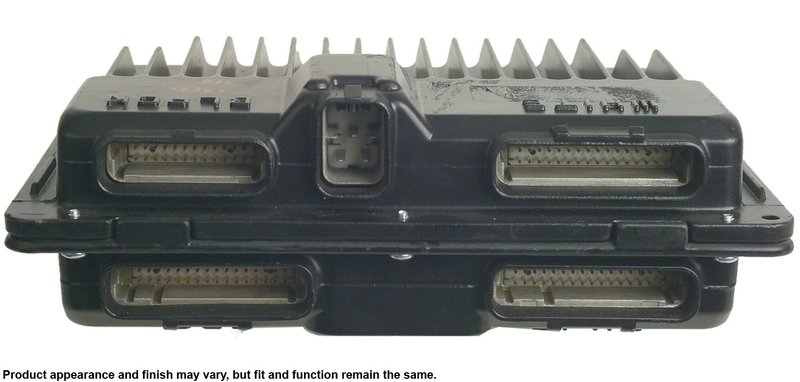

Cardone 77-9684F Vehicle Control Module

Cardone 77-9684F Vehicle Control Module

Restore engine management performance with the Cardone 77-9684F Vehicle Control Module. This remanufactured control module is built for 1997 Chevrolet, GMC, Isuzu, and Oldsmobile applications that require vehicle-specific flash programming and accurate VIN and mileage data during setup.

Cardone’s Vehicle Control Module line focuses on direct-fit replacement, computerized testing, and electrical reliability for drivability-critical repairs. The 77-9684F is a remanufactured module with a metal housing and connector/terminal configuration designed for the listed GM and related applications.

Key Features

• Remanufactured Vehicle Control Module for engine management repair
• 100% computerized testing for function and electrical performance
• Critical components resoldered to improve connection integrity
• Common wear components fully replaced during remanufacturing
• Engineered to meet or exceed OEM performance targets
• Guaranteed fit and function for listed applications
• Metal module housing for durable installation
• Connector/terminal configuration: Pin/Male, Pin/Male, Pin/Male, Blade/Male, Pin/Male

Detailed Description

The Cardone Vehicle Control Module product line is built for quick installation and dependable operation after replacement. Part number 77-9684F is remanufactured and validated through automated computerized testing, then finished with resoldered critical joints and replacement of common wear items to support stable electrical connections. For 1997 Chevrolet Astro, Blazer, C1500, Tahoe, GMC Jimmy, Sonoma, Yukon, and other listed applications, this module is used where the original control unit has failed and the vehicle requires a direct replacement with proper programming.

This part cross-references Chevrolet 16229684 and GMC 16229684 for the same application. It is also listed for Isuzu Hombre and Oldsmobile Bravada applications in the same model year.

What This Module Is Used For

• Replacing a failed engine control or powertrain control module
• Correcting no-start or drivability concerns tied to module failure
• Addressing intermittent electrical faults caused by worn internal connections
• Restoring communication and control functions after PCM/ECM replacement
• Supporting vehicles that require VIN, mileage, or flash programming after installation

Installation Notes and Tips

• Fits 1997 Chevrolet Astro, N/A; vehicle-specific flash programming required on or off the vehicle.
• Fits 1997 Chevrolet Blazer, N/A; accurate VIN and mileage are required.
• Fits 1997 Chevrolet C1500, N/A; on-car programming must be performed after installation.
• Fits 1997 GMC Jimmy, N/A; verify the original failure before replacing the module.
• Fits 1997 GMC Yukon, N/A; remove the knock module from the original PCM and install it in the replacement PCM where noted.

Before installation, confirm the original ECM/PCM failure was not caused by poor grounds, power supply issues, damaged wiring, or shorted solenoids and relays. Chrysler VIN-programming notes, Ford PATS reset procedures, and GM Passlock/Passkey reset steps are application-specific and should be checked against the vehicle service information when relevant to the platform.

Quality Assurance

Cardone remanufactured control modules are tested with computerized equipment and validated on vehicle to confirm form, fit, durability, and performance requirements. The 77-9684F is engineered for OEM-level operation and consistent electrical connection quality in the listed 1997 Chevrolet, GMC, Isuzu, and Oldsmobile applications.
