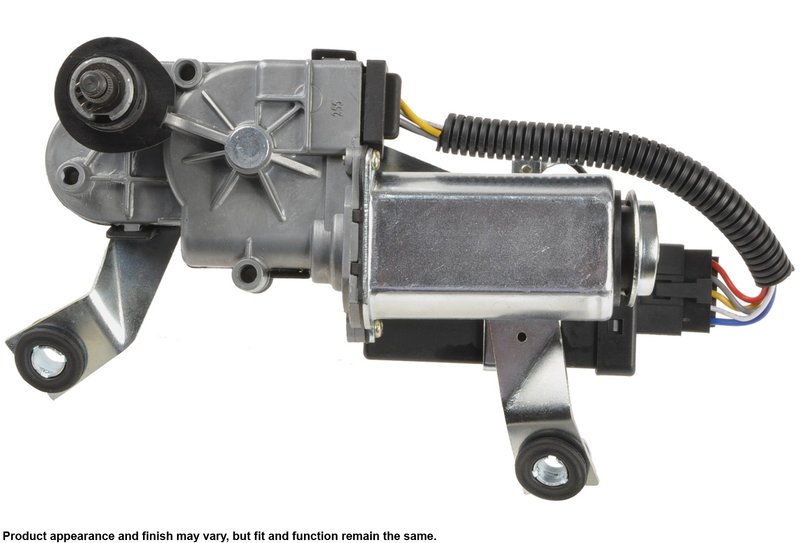

Cardone 85-1005 Windshield Wiper Motor - Rear

Rear Wiper Motor for Blazer, Jimmy, and Bravada

The Cardone 85-1005 windshield wiper motor is a new rear wiper motor built for direct bolt installation on select Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada applications. It is engineered with upgraded internal gear material and precise lubrication to support quiet operation and long service life.

Compatible With 1995-2005 Chevrolet Blazer rear, 1995-2005 GMC Jimmy rear, and 1996-2001 Oldsmobile Bravada rear.

• Direct bolt mounting for straightforward replacement
• Stronger, less brittle gear material than original design
• Load tested for reliable operation
• Precisely lubricated for quiet performance
• Magnets sized to deliver torque for demanding weather and worn linkage conditions
• Blade terminal type
• New part condition

Cardone Windshield Wiper Motor Line

Cardone’s Windshield Wiper Motor line is developed from decades of remanufacturing experience and refined as a new replacement design. The focus is on improving gear durability and consistent motor output for rear wiper service on vehicles like the Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada.

Detailed Description

Cardone 85-1005 is a rear windshield wiper motor for vehicles equipped with a rear wiper system and no washer pump at the motor. It is designed for 1995-2005 Chevrolet Blazer, 1995-2005 GMC Jimmy, and 1996-2001 Oldsmobile Bravada models. The motor uses stronger gear material to reduce premature wear, stripping, and breakage, while load testing helps verify dependable operation before installation. This part cross-references Chevrolet/GMC/Oldsmobile OE numbers such as 12365368 and 12494790 for the same application.

Common Problems This Part Can Address

• Rear wiper motor failure or no movement
• Wipers stopping mid-sweep on the rear glass
• Slow or inconsistent rear wiper operation
• Gear wear, stripping, or broken internal drive components
• Poor parking position caused by a worn motor or linkage condition

Installation Notes and Tips

Use the included instruction manual during installation. This motor mounts with a direct bolt pattern and uses blade terminals. The washer pump is not included, so confirm the vehicle’s washer system separately before replacement. If the wipers do not park correctly after installation, inspect the crank arm position on the motor shaft and reset it according to the vehicle service procedure. If the system still does not operate, bench test the wiper motor and washer pump to isolate the fault.

Quality Assurance

Cardone builds this new wiper motor with controlled lubrication, load testing, and upgraded gear material to support consistent performance in rear wiper applications. E-waste designation: yes.
