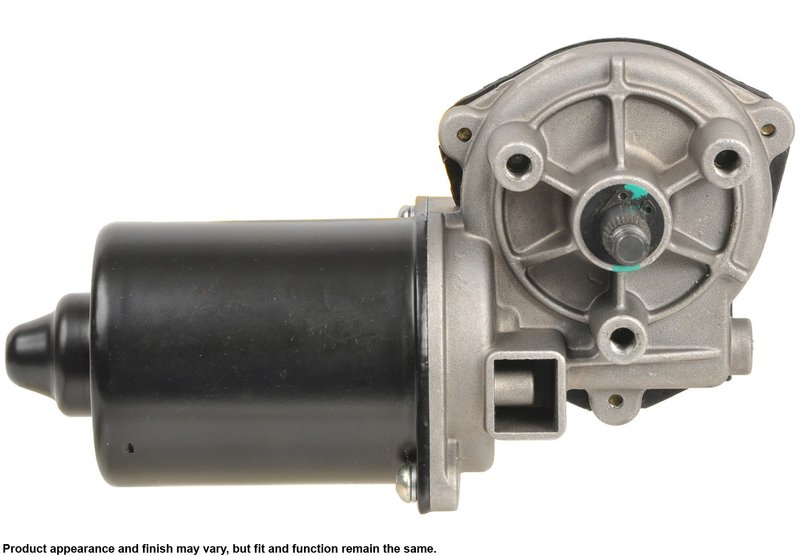

Cardone 85-1056 Windshield Wiper Motor - Front

Front Wiper Motor for Select GM and Suzuki Models

The Cardone 85-1056 windshield wiper motor is a new direct-bolt replacement built for dependable front wiper operation. It is engineered with upgraded gear material, controlled lubrication, and load testing to help deliver consistent performance in everyday driving and harsh weather.

Compatible With 2004-2006 Chevrolet Aveo, front; 2006-2008 Chevrolet Aveo5, front; 2005-2007 Pontiac Wave5, front; 2008 Pontiac Wave, front; 2004-2006 Suzuki Swift+, front; and 2007-2008 Suzuki Swift, front. This Cardone windshield wiper motor, part number 85-1056, is a practical OE-style replacement for vehicles that need reliable windshield sweep control.

Key Features

• Direct bolt mounting for straightforward replacement
• Blade terminal type
• New motor assembly with precise lubricant application for quiet operation
• Stronger gear material helps resist wear, stripping, and breakage
• Load tested for reliable operation
• Magnets are selected to provide torque for demanding weather and worn linkage conditions
• Washer pump not included

Product Details

Cardone builds this wiper motor using design improvements based on long-term remanufacturing experience and reverse engineering methods. The motor gears use a less brittle material than the original design to improve durability, while the torque output is tuned to support the wiper transmission linkage under load. Part number 85-1056 is intended for front windshield wiper service on the listed Chevrolet, Pontiac, and Suzuki applications.

This part cross-references Chevrolet/Pontiac/Suzuki OE number 96415083 for the same application.

Common Problems It Can Help Address

• Inoperative front windshield wipers
• Slow or inconsistent wiper movement
• Wipers stopping mid-sweep
• Parking misalignment caused by motor or linkage issues
• Noise from worn internal motor gears

Installation Notes

Verify the vehicle uses a front wiper motor with blade terminals and direct-bolt mounting before installation. If the vehicle has a hidden park system, adjust the crank arm position on the motor shaft to restore proper park location. If the wipers stop in the middle of the windshield, inspect the linkage and crank arm alignment as part of diagnosis.

Some vehicles will not operate the wiper motor if the washer pump has failed, so bench test both components before replacing either one. The motor does not include a washer pump.

Quality Assurance

Each Cardone new wiper motor is load tested before release and assembled with the correct lubricant amount for quiet, long-life operation. The design uses stronger internal gears to reduce premature wear and breakage, supporting dependable service in front wiper applications.
