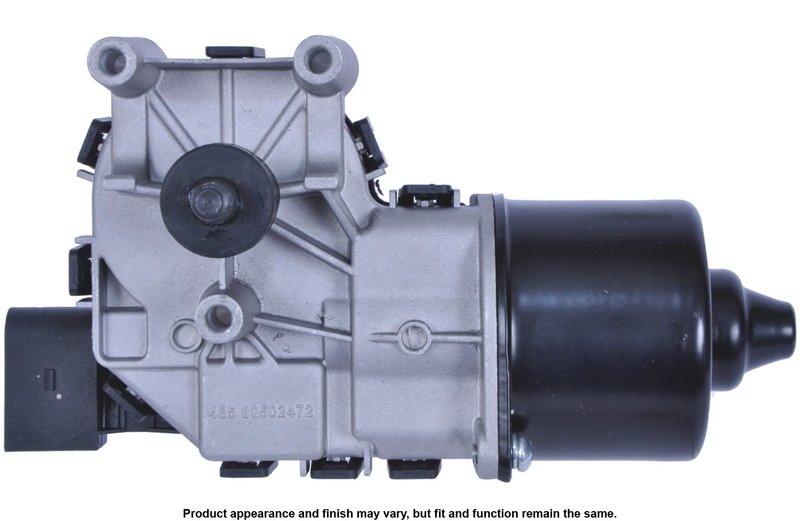

Cardone 85-1059 Wiper Motor - Front
| Brand | Cardone 85-1059 |
|---|---|
| Position | Front |
| Material | Cast aluminum |
| Terminal Type | Blade |
| Mounting Hole Quantity | 3 |
| Terminal Quantity | 4 |
| Washer Pump Included | No |
| Wiper Speeds | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Direct bolt |
| Contains Electronic Components | Electrical motor |
| Does it require SDS | No |
| E-Waste | Yes |
| FAA_A1 | If the motor does not have hidden wiper blades, the most likely c |
| FAA_A2 | The motor is not defective. there are some wiper motors that will |
| FAA_A4 | Most vehicles equipped with this feature have a rain sensor perma |
| FAA_A5 | A moisture sensor monitors rainfall accumulation on the windshiel |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is the item CARB affected | No |
| Package Contents | Wiper motor; instruction sheet |
| Product Condition | New |
| Product line | New Windshield Wiper Motor |
| Fits | Chevrolet, Pontiac, and Saturn · 19 vehicles |
New design. Engineered as an improvement over the original wiper motor design.
Stronger motor gears. Less brittle material helps resist wear, stripping, and breakage.
Direct bolt mount. Cast aluminum construction with a 4-terminal blade connection.
Cross-references 22664679 for the same application. See all 1.
Cardone New Wiper Motor for Front Applications
Restore windshield wiper operation with the Cardone New Windshield Wiper Motor, part number 85-1059. This front wiper motor is built with a cast aluminum housing, a direct bolt mounting design, and a 4-terminal blade connection for a clean OE-style replacement on select Chevrolet, Pontiac, and Saturn vehicles.
Compatible With 2005-2010 Chevrolet Cobalt, front; 2007-2010 Pontiac G5, front; 2003-2007 Saturn Ion, front; 2005-2006 Pontiac G4, front; and 2005-2006 Pontiac Pursuit, front. This part number 85-1059 is also cross-referenced to 22664679 for the same application.
Key Features
- Brand: Cardone New Windshield Wiper Motor
- Part number: 85-1059
- Cast aluminum construction for durable housing support
- Direct bolt mounting with 3 mounting holes
- Blade terminal type, 4 terminals, female connector, male terminals
- 2-speed wiper motor design
- Washer pump not included
- Wiring harness not included
- Package contents: wiper motor and instruction sheet
Product Details
Cardone engineers its New Wiper Motor line using lessons learned from reverse-engineered remanufacturing work, then updates the original design with stronger motor gear material to reduce wear, stripping, and breakage. The result is a new windshield wiper motor built for front wiper service on the listed Chevrolet Cobalt, Pontiac G5, Saturn Ion, Pontiac G4, and Pontiac Pursuit applications. If you are replacing a failed front wiper motor on a 2005-2010 Chevrolet Cobalt or a 2003-2007 Saturn Ion, this unit is specified for that application.
Common Problems This Part Can Address
- Front wipers stop mid-sweep or park incorrectly
- Wiper motor no longer responds to switch input
- Slow, inconsistent, or limited two-speed wiper operation
- Noise or gear wear from a failing motor assembly
- Electrical motor failure in the windshield wiper system
Installation Notes and Tips
Verify connector style, mounting points, and vehicle application before installation. If the wipers do not park at the bottom of the windshield, adjust the crank arm angle on the motor shaft and follow the vehicle-specific hidden park reset procedure. If the original washer pump was faulty, bench test both the wiper motor and washer pump before replacing either component. For vehicles with moisture-sensitive wipers, confirm the presence of the rain sensor mounted inside the windshield near the rearview mirror and review the control module operation.
Quality Assurance
Cardone New Wiper Motors are engineered as an improved replacement over the original design, with upgraded gear material selected to resist premature wear and breakage. This part is new and supplied with an instruction sheet for installation reference.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Chevrolet | Cobalt | Front | New Windshield Wiper Motor |
| 2010 | Pontiac | G5 | Front | New Windshield Wiper Motor |
| 2009 | Chevrolet | Cobalt | Front | New Windshield Wiper Motor |
| 2009 | Pontiac | G5 | Front | New Windshield Wiper Motor |
| 2008 | Chevrolet | Cobalt | Front | New Windshield Wiper Motor |
| 2008 | Pontiac | G5 | Front | New Windshield Wiper Motor |
| 2007 | Chevrolet | Cobalt | Front | New Windshield Wiper Motor |
| 2007 | Pontiac | G5 | Front | New Windshield Wiper Motor |
| 2007 | Saturn | Ion | Front | New Windshield Wiper Motor |
| 2006 | Chevrolet | Cobalt | Front | New Windshield Wiper Motor |
| 2006 | Pontiac | G4 | Front | New Windshield Wiper Motor |
| 2006 | Pontiac | Pursuit | Front | New Windshield Wiper Motor |
| 2006 | Saturn | Ion | Front | New Windshield Wiper Motor |
| 2005 | Chevrolet | Cobalt | Front | New Windshield Wiper Motor |
| 2005 | Pontiac | G4 | Front | New Windshield Wiper Motor |
| 2005 | Pontiac | Pursuit | Front | New Windshield Wiper Motor |
| 2005 | Saturn | Ion | Front | New Windshield Wiper Motor |
| 2004 | Saturn | Ion | Front | New Windshield Wiper Motor |
| 2003 | Saturn | Ion | Front | New Windshield Wiper Motor |
| No rows match your filter. | ||||
