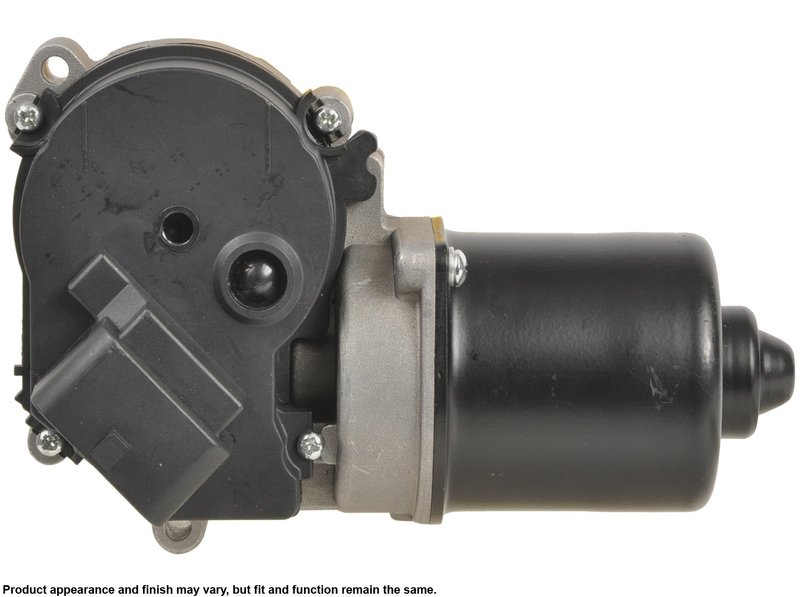

Cardone 85-1064 Wiper Motor - Front

Windshield Wiper Motor for Cadillac Front Applications

Cardone 85-1064 is a new windshield wiper motor engineered for direct bolt installation on select Cadillac front wiper systems. It is built with upgraded internal gears, precise lubrication, and load-tested performance to support consistent wiping in demanding weather.

Compatible with 2003-2007 Cadillac CTS front, 2004-2006 Cadillac SRX front, and 2005-2011 Cadillac STS front, this Cardone wiper motor is designed for vehicles that do not use an included washer pump. The Cardone Windshield Wiper Motor line focuses on durable replacement components that address common wear points in the original design.

Key Features

• New wiper motor, Part Number 85-1064
• Direct bolt mounting with 3 mounting holes
• Blade terminal type
• Motor only; washer pump not included
• Internal gears use a stronger, less brittle material than OE to reduce wear, stripping, and breakage
• Assembled with the correct lubricant for quiet operation and long service life
• Load tested for reliable performance
• Magnets provide torque for extreme weather and worn linkage conditions

Detailed Description

Cardone 85-1064 is a replacement windshield wiper motor for front applications on Cadillac CTS, Cadillac SRX, and Cadillac STS models listed below. It is engineered from Cardone’s long experience remanufacturing wiper motors and refined as a new part with design updates aimed at durability and consistent operation. The motor gears are made from a tougher material than the original design to help reduce premature wear and gear failure, while the torque output is calibrated to handle weather load and aging linkage components.

This part cross-references Cadillac OE numbers 12487632 and 88958251 for the same application.

What It Helps Fix

• Inoperative front windshield wipers
• Slow or inconsistent wiper movement
• Wipers stopping in the middle of the windshield
• Parking misalignment caused by crank arm position
• Noise or gear wear from a failing motor assembly

Installation Notes and Tips

• Fits 2003-2007 Cadillac CTS, front; connector located on left side; motor without washer pump
• Fits 2004-2006 Cadillac SRX, front; wiper motor does not include washer pump
• Fits 2005-2011 Cadillac STS, front; wiper motor does not include washer pump
• Bench test the wiper motor and washer pump before replacement if the original system stopped working
• If the motor parks in the wrong position and the vehicle does not use hidden wiper blades, adjust the crank arm angle on the motor shaft using the vehicle service procedure
• For moisture-sensitive systems, confirm the rain sensor and control module operation before replacing the motor

Quality Assurance

Cardone designs this new wiper motor as an improved replacement over the original design, using stronger gear material, controlled lubrication, and load testing to support dependable operation. E-waste compliant.
