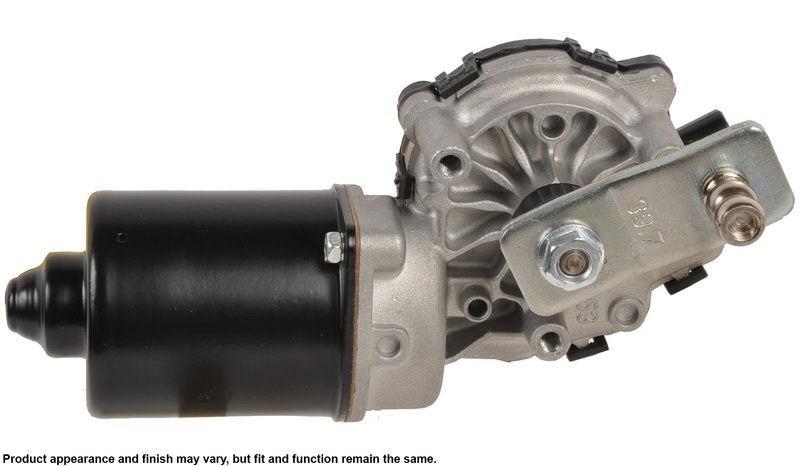

Cardone 85-20040 Windshield Wiper Motor - Front

Cardone New Wiper Motor for Front Applications

The Cardone 85-20040 windshield wiper motor is a new direct-bolt replacement built for front wiper systems that require a blade-terminal motor without an included washer pump. It is engineered for dependable operation in everyday driving and harsh weather, with design updates aimed at reducing premature gear wear and noise.

Compatible With 1997-2001 Toyota Camry, front, and 2003-2006 Mitsubishi Outlander, front. This part cross-references Toyota 85110AA020 for the same application.

Key Features

• New wiper motor assembly for front windshield applications
• Direct bolt mounting for straightforward replacement
• Blade terminal type
• Washer pump not included
• Gears use a stronger, less brittle material than original equipment designs
• Precisely lubricated during assembly for quiet operation and extended service life
• Load tested for reliable performance
• Magnets are selected to deliver torque for demanding weather and worn linkage conditions

Product Details

Cardone’s Windshield Wiper Motor line is built from extensive remanufacturing and reverse-engineering experience, then refined as a new replacement design. The 85-20040 is intended for vehicles that use a front-mounted wiper motor with a direct-bolt installation and blade-style terminals. For 1997-2001 Toyota Camry models with Nippon Denso type systems and 2003-2006 Mitsubishi Outlander models, this motor provides a focused replacement solution when the original unit has failed or is operating inconsistently.

Common Problems This Part Can Address

• Wipers stop mid-windshield
• Wipers fail to park correctly at the bottom of the glass
• Slow, weak, or intermittent wiper movement
• Noise from worn motor gears or dry internal components
• Motor failure after washer pump-related electrical issues are diagnosed

Installation Notes and Tips

Confirm the vehicle uses a front wiper motor with no washer pump included before ordering. If the wipers do not park correctly after installation and the vehicle does not use hidden wiper blades, check crank arm position on the motor shaft and reset it to the proper park angle using the vehicle service procedure. If the original motor stopped working after a washer pump issue, bench test both components before replacement. For moisture-sensitive systems, verify the rain sensor and control module operation before condemning the motor.

Quality Assurance

Each Cardone 85-20040 motor is assembled with controlled lubrication, load tested, and built with upgraded gear material to help resist wear, stripping, and breakage. The design reflects Cardone’s long experience with wiper motor engineering and replacement parts for OE-style applications.
