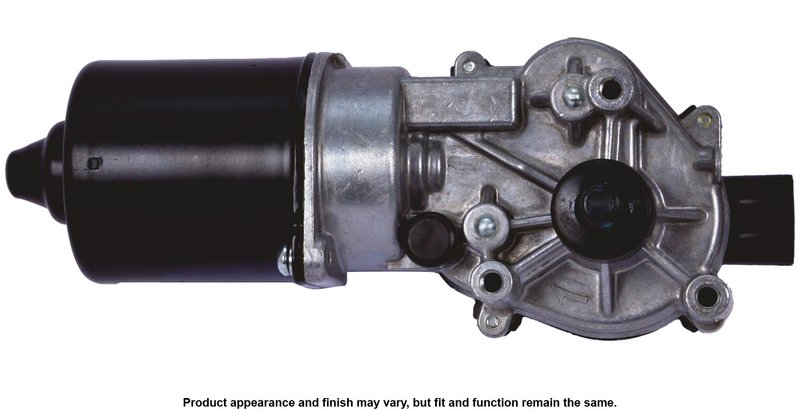

Cardone 85-4068 Windshield Wiper Motor - Front

Cardone Front Wiper Motor for Honda and Acura

Restore dependable windshield wiping with the Cardone 85-4068 windshield wiper motor. This new direct-bolt replacement is built for front applications on select Honda Pilot, Honda CR-V, and Acura TL models, with engineering focused on quiet operation, consistent torque, and long-term durability.

Key Features

• New Cardone windshield wiper motor, part number 85-4068
• Direct bolt mounting type for straightforward replacement
• Blade terminal connection
• Motor gears use a stronger, less brittle material than OE to reduce wear, stripping, and breakage
• Precisely lubricated assembly for quiet operation and extended service life
• Load tested for reliable performance
• Magnets are calibrated to deliver torque for harsh weather and worn linkage conditions
• Package contents: wiper motor and instruction manual
• Washer pump not included

Product Details

Cardone builds this wiper motor using experience gained from remanufacturing and reverse engineering automotive motors, then improves the original design with upgraded internal components. The result is a front windshield wiper motor engineered for dependable operation on 2009-2015 Honda Pilot, 2009-2014 Acura TL, and 2010-2011 Honda CR-V applications. If you are replacing a failing front wiper motor on a Honda Pilot, Acura TL, or Honda CR-V, part number 85-4068 is designed to deliver consistent wiping performance in everyday driving and severe weather.

This part cross-references Honda and Acura OE numbers 76505SWAA02 and 76505TK4A01 for the same application.

Common Problems This Part Can Address

• Front wipers stop working or operate intermittently
• Wipers move slowly or lose torque in rain, snow, or ice
• Wiper motor gears strip, wear, or break
• Wipers park incorrectly or stop mid-windshield
• Noise from a dry or worn wiper motor assembly

Installation Notes and Tips

Fits 2009-2015 Honda Pilot, front. Fits 2009-2014 Acura TL, front. Fits 2010-2011 Honda CR-V, front. Confirm the vehicle uses the correct front wiper motor configuration before installation. This motor does not include the washer pump, so transfer or diagnose the washer system separately as needed. If the wipers do not park correctly after installation, inspect crank arm position and follow the vehicle-specific hidden park reset procedure when applicable. For moisture-sensitive systems, verify the rain sensor and related control module operation before replacing the motor.

Quality Assurance

Cardone uses load testing and upgraded gear materials to improve durability and performance under demanding conditions. The motor is assembled with the proper lubricant amount to support quiet operation and long service life. E-waste: Yes.
