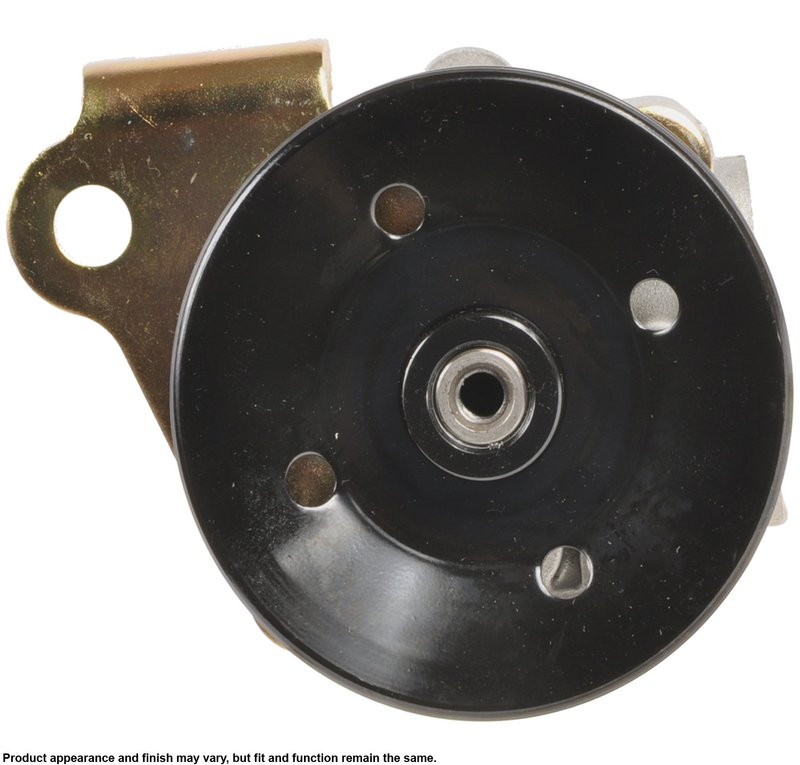

Cardone 96-5398 Power Steering Pump
Overview of Cardone Power Steering Pump 96-5398
The Cardone Power Steering Pump 96-5398 is designed for reliable steering performance in Mitsubishi vehicles. This new hydraulic pump is compatible with Mitsubishi Eclipse, Endeavor, and Galant models, providing consistent power assist for smooth handling.
- Brand: Cardone
- Brand Line: Power Steering Pump
- Part Number: 96-5398
- Compatible with Mitsubishi Eclipse, Endeavor, and Galant
- Housing Material: Aluminum for durability and heat dissipation
- Includes hydraulic pump, instruction sheet, and sealing kit
- Press-on pulley included for easy installation
- Power steering outlet thread size: 16x1.5
- Inlet attachment type: Hose barb; Outlet attachment type: Threaded
- Remote reservoir compatible; reservoir cap not included
- Mounting hardware not included
About the Cardone Power Steering Pump Line
The Cardone Power Steering Pump line focuses on delivering dependable replacement pumps that meet or exceed OEM specifications. This product line emphasizes quality materials such as aluminum housings and includes essential components like pulleys and sealing kits to facilitate installation. The 96-5398 pump is part of this line, engineered to restore proper steering assist and maintain hydraulic system integrity in select Mitsubishi models.
Product Details and Features
This power steering pump features an aluminum housing that offers strength and effective heat dissipation, helping to extend pump life. The included press-on pulley simplifies installation by matching the original equipment design. The pump uses an O-ring type hose port for secure fluid connections, with a hose barb inlet and threaded outlet attachment to fit factory steering systems. While the remote reservoir is supported, the reservoir itself and cap are not included, so these components must be sourced separately if needed.
Common Applications and Problem Resolution
- Restores power assist in Mitsubishi Eclipse, Endeavor, and Galant models
- Eliminates whining noises caused by worn or failing pumps
- Resolves hard steering issues, especially when turning in one direction
- Addresses fluid flow problems due to debris in the flow control valve bore
- Replaces pumps with damaged or cracked pulleys to ensure proper function
Installation Notes and Tips
Installation requires removal of the original pump and pulley; note that pulleys may crack if removed improperly. The included press-on pulley should be installed carefully to avoid shaft damage. Ensure all sealing components from the kit are used to prevent leaks. Since mounting hardware is not included, retain original bolts or source replacements. It is recommended to check and replace power steering fluid during installation, even if no issues are apparent, to maintain system performance.
Quality Assurance and Warranty
The Cardone Power Steering Pump 96-5398 is a new, unused part manufactured to meet OEM standards. It includes a sealing kit and instruction sheet to support proper installation. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship. For exact warranty terms, consult the product documentation or Cardone directly.
| Brand | Cardone |
| Part Number | 96-5398 |
| Position | Power Steering Pump |
| E-Waste | No |
| Hose Port Type | O-ring |
| Housing Material | Aluminum |
| Mounting Hardware Included | No |
| Package Contents | Hydraulic Pump; Instruction Sheet; Sealing Kit |
| Power Steering Outlet Thread Size | 16x1.5 |
| Power Steering Pump Inlet Attachement Type | Hose Barb |
| Power Steering Pump Outlet Attachment Type | Threaded |
| Power Steering Reservoir Cap Included | No |
| Product Condition | New |
| Pulley Attachement Type | Press-On |
| Pulley Included | Yes |
| Remote Reservoir | Yes |
| Reservoir Included | No |
This part fits 21 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
| 2011 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
| 2011 | Mitsubishi | Endeavor | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump | ||
| 2010 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
| 2010 | Mitsubishi | Endeavor | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump | ||
| 2009 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
| 2009 | Mitsubishi | Endeavor | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump | ||
| 2009 | Mitsubishi | Galant | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
| 2008 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
| 2008 | Mitsubishi | Endeavor | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump | ||
| 2008 | Mitsubishi | Galant | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
| 2007 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
| 2007 | Mitsubishi | Endeavor | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump | ||
| 2007 | Mitsubishi | Galant | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
| 2006 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
| 2006 | Mitsubishi | Endeavor | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump | ||
| 2006 | Mitsubishi | Galant | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
| 2005 | Mitsubishi | Endeavor | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump | ||
| 2005 | Mitsubishi | Galant | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
| 2004 | Mitsubishi | Endeavor | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump | ||
| 2004 | Mitsubishi | Galant | 3.8L | V6 | N/A | Reservoir not included; in-line filter and seal kit included; always install filter, use OE fluid, and flush system for warranty.; Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
