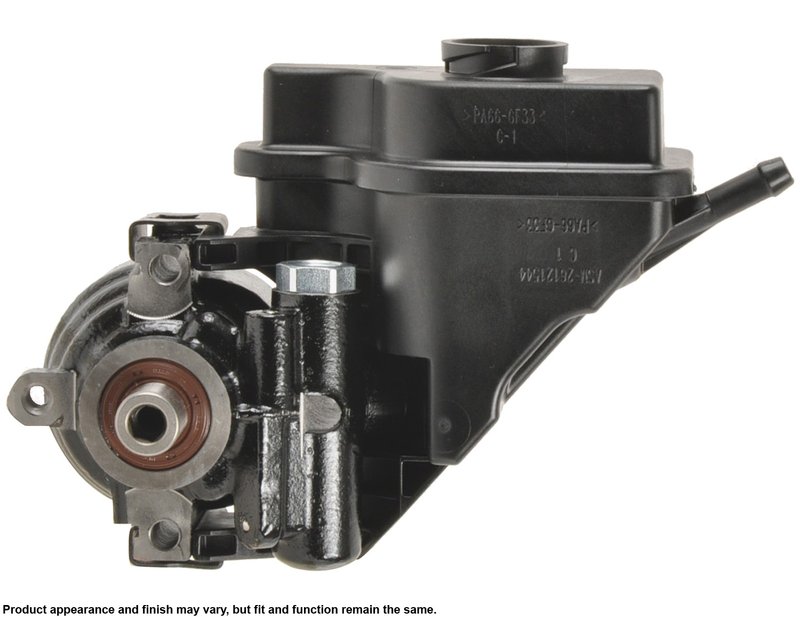

Cardone 96-71996 Power Steering Pump
Overview of Cardone Power Steering Pump 96-71996
The Cardone Power Steering Pump 96-71996 is designed specifically for Buick and Cadillac models, including the DTS and Lucerne. This new power steering pump ensures reliable hydraulic performance to maintain smooth steering control.
- Brand: Cardone
- Brand Line: Power Steering Pump
- Part Number: 96-71996
- Compatible with Buick DTS and Cadillac Lucerne
- Housing Material: Durable cast iron construction
- Includes hydraulic pump, instruction sheet, and sealing kit
- Power steering outlet thread size: 16x1.5
- Inlet attachment type: Hose barb; outlet attachment type: threaded
- O-ring type hose port for secure connections
- Reservoir included; pulley not included (press-on pulley attachment)
- Mounting hardware not included
About the Cardone Power Steering Pump Line
The Cardone Power Steering Pump product line focuses on delivering dependable replacement pumps engineered to meet or exceed original equipment specifications. This line emphasizes quality materials such as cast iron housings and precise attachment fittings to ensure compatibility and durability. The 96-71996 pump is part of this line, providing a direct-fit solution for select Buick and Cadillac vehicles.
Product Details and Specifications
This power steering pump features a cast iron housing for strength and longevity. It includes a hydraulic pump, an instruction sheet for installation guidance, and a sealing kit to ensure leak-free operation. The pump uses an O-ring type hose port and has a 16x1.5 threaded outlet for secure fluid connections. The inlet uses a hose barb attachment, while the outlet is threaded, facilitating straightforward integration with existing steering systems. The reservoir is included with the pump, but the pulley is not included and attaches via a press-on method. Mounting hardware is not provided, so reusing existing hardware or sourcing separately is necessary.
Common Applications and Problem Resolution
- Replacement for failing or leaking power steering pumps on Buick DTS and Cadillac Lucerne
- Addresses issues with hard or inconsistent steering assist
- Resolves whining or unusual noises from the power steering pump
- Fixes fluid flow problems caused by debris or worn components in the steering unit
- Restores proper hydraulic pressure for smooth steering response
Installation Notes and Tips
When installing the Cardone 96-71996 power steering pump, ensure the pulley is inspected or replaced as it is not included. Use the provided sealing kit to prevent leaks and verify that hose connections match the O-ring and threaded fittings. Since mounting hardware is not included, retain original bolts or acquire compatible replacements. Follow the instruction sheet carefully to avoid damage to the pump shaft or pulley during installation.
Quality Assurance and Warranty
This Cardone power steering pump is supplied new and built to meet OEM standards. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship. For exact warranty terms, consult the product documentation or Cardone directly.
| Brand | Cardone |
| Part Number | 96-71996 |
| Position | Power Steering Pump |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Housing Material | Cast Iron |
| Mounting Hardware Included | No |
| Package Contents | Hydraulic Pump; Instruction Sheet; Sealing Kit |
| Power Steering Outlet Thread Size | 16x1.5 |
| Power Steering Pump Inlet Attachement Type | Hose Barb |
| Power Steering Pump Outlet Attachment Type | Threaded |
| Power Steering Reservoir Cap Included | No |
| Product Condition | New |
| Pulley Attachement Type | Press-On |
| Pulley Included | No |
| Remote Reservoir | No |
| Reservoir Included | Yes |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Buick | Lucerne | 4.6L | V8 | N/A | Reservoir included, optional in-line filter must be installed for warranty, system must be flushed with seal kit and OE fluid used.; Power Steering Pump |
| 2011 | Cadillac | DTS | N/A | Reservoir included, optional in-line filter must be installed for warranty, system must be flushed with seal kit and OE fluid used.; Power Steering Pump | ||
| 2010 | Buick | Lucerne | 4.6L | V8 | N/A | Reservoir included, optional in-line filter must be installed for warranty, system must be flushed with seal kit and OE fluid used.; Power Steering Pump |
| 2010 | Cadillac | DTS | N/A | Reservoir included, optional in-line filter must be installed for warranty, system must be flushed with seal kit and OE fluid used.; Power Steering Pump | ||
| 2009 | Buick | Lucerne | 4.6L | V8 | N/A | Reservoir included, optional in-line filter must be installed for warranty, system must be flushed with seal kit and OE fluid used.; Power Steering Pump |
| 2009 | Cadillac | DTS | N/A | Reservoir included, optional in-line filter must be installed for warranty, system must be flushed with seal kit and OE fluid used.; Power Steering Pump | ||
| 2008 | Buick | Lucerne | 4.6L | V8 | N/A | Reservoir included, optional in-line filter must be installed for warranty, system must be flushed with seal kit and OE fluid used.; Power Steering Pump |
| 2008 | Cadillac | DTS | N/A | Reservoir included, optional in-line filter must be installed for warranty, system must be flushed with seal kit and OE fluid used.; Power Steering Pump | ||
| 2007 | Buick | Lucerne | 4.6L | V8 | N/A | Reservoir included, optional in-line filter must be installed for warranty, system must be flushed with seal kit and OE fluid used.; Power Steering Pump |
| 2007 | Cadillac | DTS | N/A | Reservoir included, optional in-line filter must be installed for warranty, system must be flushed with seal kit and OE fluid used.; Power Steering Pump | ||
| 2006 | Buick | Lucerne | 4.6L | V8 | N/A | Reservoir included, optional in-line filter must be installed for warranty, system must be flushed with seal kit and OE fluid used.; Power Steering Pump |
| 2006 | Cadillac | DTS | N/A | Reservoir included, optional in-line filter must be installed for warranty, system must be flushed with seal kit and OE fluid used.; Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
