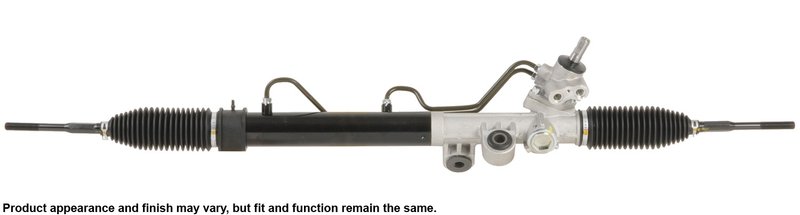

Cardone 97-1117 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 97-1117
The Cardone Rack and Pinion Assembly 97-1117 is designed specifically for the Hummer H3, providing reliable steering performance. This new steering gear component features durable aluminum casting and includes essential parts for a complete installation.
- Constructed with lightweight aluminum casting material
- Includes rack and pinion, seal kit, instruction sheet, tag, and tie rod ends
- Input shaft diameter of 0.66 inches (16.8 mm) and length of 1.59 inches (40.5 mm)
- Rack length measures 47.56 inches (1208 mm) for precise fitment
- Two mounting holes spaced 2.32 inches (59 mm) apart
- Black steering rack color with O-ring type hose ports
- Total turns lock to lock: 3.25 for responsive steering control
Detailed Product Description
This Cardone Rack and Pinion Assembly 97-1117 is engineered to meet the steering requirements of the Hummer H3. The assembly features an aluminum casting that balances strength and weight, contributing to overall vehicle handling. The input shaft diameter and length are designed to match OEM specifications, ensuring compatibility and ease of installation. The included tie rod ends and seal kit provide a comprehensive solution for steering system repairs or replacements.
The Rack and Pinion Assembly product line from Cardone focuses on delivering reliable steering components that maintain vehicle safety and performance. This assembly is built to precise dimensions, including a rack length of 47.56 inches and mounting hole spacing of 2.32 inches, which are critical for proper fitment on the Hummer H3.
Common Applications and Problem Solving
- Restores precise steering response on Hummer H3 models
- Replaces worn or leaking rack and pinion assemblies
- Eliminates steering play and improves vehicle handling
- Addresses fluid leaks from pressure or return ports
- Resolves noise or stiffness in steering operation
Installation Notes and Tips
- Verify mounting hole spacing and input shaft dimensions before installation
- Use the included seal kit to ensure leak-free connections
- Follow the instruction sheet carefully for torque specifications and alignment
- Check tie rod ends for proper fit and secure attachment
- Bleed the power steering system after installation to remove air
Quality Assurance and Warranty
This Cardone Rack and Pinion Assembly 97-1117 is a new, unused part manufactured to meet or exceed OEM standards. Cardone provides quality assurance through rigorous testing and material selection. While specific warranty details are not provided here, Cardone typically offers limited warranties on their steering components to cover defects in materials and workmanship.
| Brand | Cardone |
|---|---|
| Part Number | 97-1117 |
| Position | Rack and Pinion Assembly |
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 2.32 |
| Distance Between Mounting Holes (mm) | 59 |
| E-Waste | No |
| Hose Port Type | O-ring |
| Input Shaft Diameter (in) | 0.66 |
| Input Shaft Diameter (mm) | 16.8 |
| Input Shaft Length (in) | 1.59 |
| Input Shaft Length (mm) | 40.5 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Instricution Sheet, Tag, Seal Kit |
| Pressure Port ID Size | 12 |
| Product Condition | New |
| Rack Length (in) | 47.56 |
| Rack Length (mm) | 1208 |
| Return Port ID Size | 11.12 |
| Steering Rack Color | Black |
| Thread Length (in) | 1.97 |
| Thread Length (mm) | 50 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.25 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Hummer | H3 | N/A | with 14 mm Diameter Tie Rod; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2007 | Hummer | H3 | N/A | with 14 mm Diameter Tie Rod; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2006 | Hummer | H3 | N/A | with 14 mm Diameter Tie Rod; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
