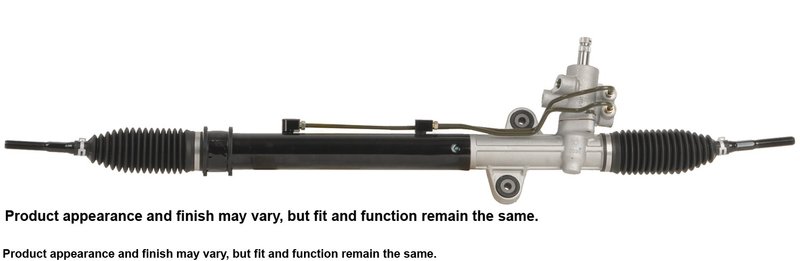

Cardone 97-2722 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 97-2722
The Cardone Rack and Pinion Assembly 97-2722 is designed specifically for Acura MDX models, providing reliable steering performance. This new aluminum casting assembly ensures precise handling and durability for your vehicle's steering system.
- Compatible with Acura MDX
- Durable aluminum casting material
- Includes tie rod ends for complete installation
- Black steering rack color for corrosion resistance
- Input shaft diameter of 0.68 inches (17.3 mm)
- Rack length of 43.85 inches (1114 mm)
- Two mounting holes spaced 4.04 inches (102.8 mm) apart
- Pressure and return port thread size M16 x 1.5
- Total turns lock to lock: 3.3
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on delivering complete steering gear solutions that meet OEM specifications. This assembly includes all necessary components such as the rack and pinion unit, tie rod ends, and installation instructions. Designed for durability and precise steering response, the Rack and Pinion Assembly line supports professional-grade repairs and replacements for compatible vehicles like the Acura MDX.
Detailed Product Description
This Cardone Rack and Pinion Assembly 97-2722 features a robust aluminum casting that balances strength and weight reduction. The assembly includes a 43.85-inch rack length and a 0.68-inch diameter input shaft with a length of 1.81 inches, ensuring proper fit and function. The two mounting holes are spaced 4.04 inches apart, facilitating secure installation. Both pressure and return ports use M16 x 1.5 thread sizes with a thread length of 1.96 inches, compatible with standard hydraulic steering systems. The black finish on the steering rack provides corrosion resistance, extending the service life of the component. Tie rod ends are included, allowing for a more straightforward installation process.
Common Applications and Problem Solving
- Restores precise steering control for Acura MDX vehicles
- Replaces worn or damaged rack and pinion assemblies causing steering play
- Eliminates steering noise and vibration issues
- Addresses hydraulic leaks from pressure or return ports
- Improves overall vehicle handling and safety
Installation Notes and Tips
Ensure the mounting holes align correctly with the vehicle’s frame using the 4.04-inch spacing as a guide. Verify the input shaft diameter and length match the steering column specifications of the Acura MDX. Use the included instruction sheet for step-by-step guidance. Check all hydraulic connections at the M16 x 1.5 pressure and return ports for proper sealing to prevent leaks. It is recommended to perform a wheel alignment after installation to maintain optimal steering performance.
Quality Assurance and Warranty
The Cardone Rack and Pinion Assembly 97-2722 is a new product built to meet or exceed OEM standards. Manufactured with high-quality aluminum casting and precision components, it undergoes rigorous quality control to ensure durability and reliable performance. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use conditions.
| Brand | Cardone |
|---|---|
| Part Number | 97-2722 |
| Position | Rack and Pinion Assembly |
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 4.04 |
| Distance Between Mounting Holes (mm) | 102.8 |
| E-Waste | No |
| Hose Port Type | Seat |
| Input Shaft Diameter (in) | 0.68 |
| Input Shaft Diameter (mm) | 17.3 |
| Input Shaft Length (in) | 1.81 |
| Input Shaft Length (mm) | 46 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Instruction Sheet, Tag, Insert |
| Pressure Port Thread Size | M16 x 1.5 |
| Product Condition | New |
| Rack Length (in) | 43.85 |
| Rack Length (mm) | 1114 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 1.96 |
| Thread Length (mm) | 50 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.3 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Acura | MDX | N/A | Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Seal Kit; with Hydraulic Power; Rack and Pinion Assembly |
| 2005 | Acura | MDX | N/A | Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Seal Kit; with Hydraulic Power; Rack and Pinion Assembly |
| 2004 | Acura | MDX | N/A | Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Seal Kit; with Hydraulic Power; Rack and Pinion Assembly |
| 2003 | Acura | MDX | N/A | Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Seal Kit; with Hydraulic Power; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
