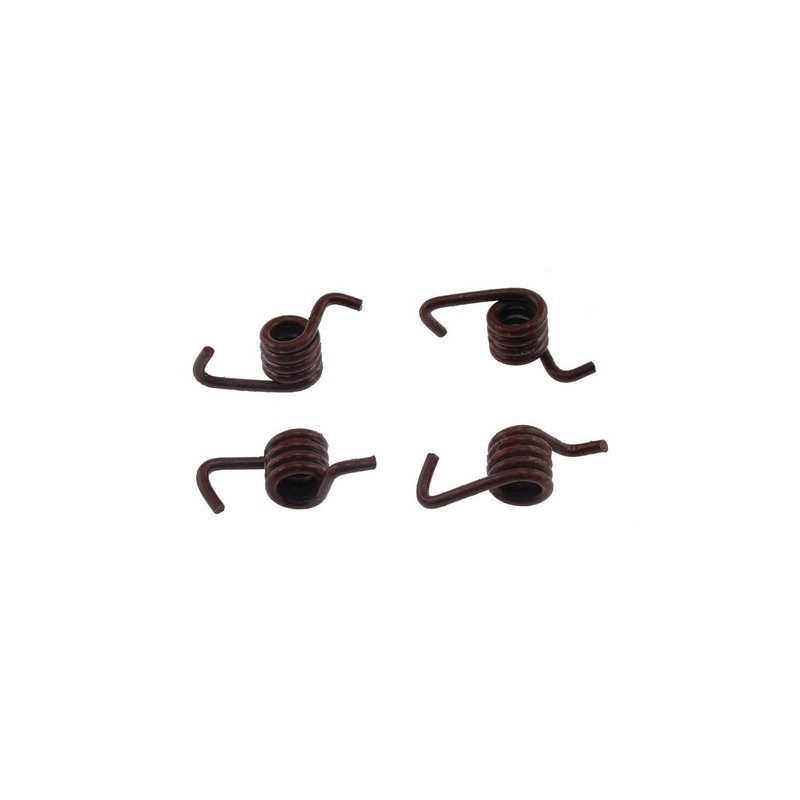

Carlson H1164-2 Drum Brake Shoe Hold Down Spring

Brake Shoe Hold Down Spring

Carlson H1164-2 is a drum brake shoe hold down spring for rear drum brake service. It secures the brake shoes to the backing plate while still allowing the shoes to move properly during braking.

Key Features

• Hold down spring for drum brake hardware service
• Helps retain brake shoes against the backing plate
• Supports controlled brake shoe movement
• Brake hardware should be inspected and replaced regularly
• Compatible with rear drum brake applications across Ford, Dodge, and Plymouth platforms

Detailed Description

This Carlson brake hardware part is built for drum brake assemblies that need a reliable shoe retention component. The H1164-2 is used in rear applications on a wide range of Ford F-350, Ford E-250 Econoline, Ford E-350 Econoline, Dodge Ram 2500, Dodge Ram 3500, and related models with drum brake configurations. Fitment varies by brake size, shoe width, and adjusting lever or spring kit reference, so the exact application should be matched to the vehicle listing.

The H1164-2 part number is useful when sourcing replacement brake hardware for drum brake maintenance. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Loose or weakened brake shoe retention
• Brake shoe movement that is no longer controlled properly
• Worn drum brake hardware during routine service
• Restoration of drum brake assembly function after inspection

Installation Notes and Tips

Confirm the brake shoe width, drum size, and adjusting lever or spring kit reference before ordering. Match the vehicle position and notes in the fitment table exactly, since this part is listed across multiple rear drum brake configurations. Replace related brake hardware during service when wear or corrosion is present.

Quality Assurance

Carlson recommends regular inspection and replacement of brake hardware to maintain reliable drum brake performance. Use the H1164-2 part number to verify the correct hold down spring for your application.
