Carlson H131 Drum Brake Shoe Return Spring Kit - Front or RearOE Quality 60-Day Returns
Part #: H131

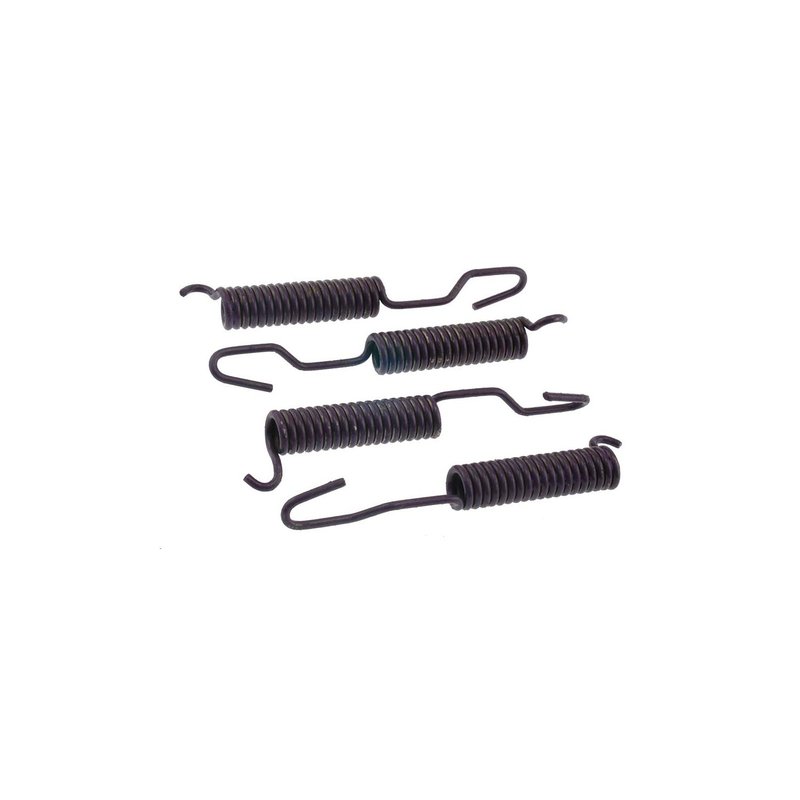

Carlson H131 Drum Brake Shoe Return Spring Kit - Front or Rear

Front
40 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$17.32Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
Out of Stock
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Ford, Mercury, and Chevrolet, F-100, Custom, Custom 500, Country Sedan, Country Squire, Galaxie 500, LTD, Marquis, Monterey, Montclair, Galaxie, Brougham, and Impala
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Drum Brake Shoe Return Spring Kit options

Reliable Drum Brake Shoe Return Spring Kit for Chevrolet, Ford, and Mercury

The Carlson H131 Drum Brake Shoe Return Spring Kit is designed to restore proper brake function on select Chevrolet, Ford, and Mercury vehicles. This kit provides the necessary components to maintain optimal drum brake performance on models like the Chevrolet Impala, Ford F-100, and Mercury Marquis.

Key Features of the Carlson H131 Brake Spring Kit

  • Complete set of drum brake shoe return springs
  • Compatible with Chevrolet Impala, Ford F-100, Mercury Marquis, and Ford LTD
  • Durable construction for consistent brake shoe retraction
  • Part number H131 ensures correct fitment and replacement
  • Designed to meet or exceed OEM specifications

Detailed Description of the H131 Drum Brake Shoe Return Spring Kit

The Carlson H131 kit includes all necessary return springs to replace worn or damaged components in drum brake assemblies. Proper return spring tension is critical for the brake shoes to retract after braking, preventing drag and uneven wear. This kit is specifically engineered for use on Chevrolet Impala, Ford F-100, Mercury Marquis, and Ford LTD models, ensuring precise fit and reliable operation. Using the correct part number H131 guarantees compatibility and helps maintain the integrity of the vehicle's braking system.

Common Applications and Issues Addressed

  • Restores proper brake shoe retraction to prevent brake drag
  • Eliminates noise caused by loose or broken return springs
  • Prevents premature brake shoe wear due to improper spring tension
  • Improves overall drum brake responsiveness and safety
  • Addresses sticking or binding brake shoes in Chevrolet, Ford, and Mercury drum brakes

Installation Notes and Tips for the H131 Kit

  • Ensure the vehicle is securely lifted and supported before brake service
  • Remove old return springs carefully to avoid damage to brake components
  • Compare new springs to old ones to verify correct length and tension
  • Use appropriate brake spring tools for safe and efficient installation
  • Inspect other drum brake components for wear during installation

Quality Assurance and Warranty Information

Carlson brake components are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The H131 Drum Brake Shoe Return Spring Kit undergoes rigorous quality control to ensure consistent fit and function. While specific warranty details may vary, Carlson products typically include coverage against defects in materials and workmanship to support long-term use.

This part fits 40 vehicles. Search below:

YearMakeModelPositionNotes
1975FordF-100FrontFits drum brake adjusting screw assembly for 11" x 2" brakes, model 282.
1974FordF-100FrontFits drum brake adjusting screw assembly for 11" x 2" brakes, model 282.
1973FordF-100FrontFits drum brake adjusting screw assembly for 11" x 2" brakes, model 282.
1972FordF-100FrontDrum Brake Adjusting Spring Kit fits vehicles with 11" x 2" brakes, 4WD, and 282.
1971FordF-100FrontDrum Brake Adjusting Spring Kit fits vehicles with 11" x 2" brakes, 4WD, and 282.
1970FordF-100FrontDrum Brake Adjusting Spring Kit fits vehicles with 11" x 2" brakes, 4WD, and 282.
1970FordLTDRearCompatible with a variety of vehicles, this Drum Brake Adjusting Spring Kit is designed to improve drum brake shoe hold down performance.
1970FordLTDFrontDrum Brake Shoe Hold Down Spring fits Drum Brake Self-Adjuster Cable Guide with 3" Shoes and 265 dimensions
1970FordLTDFrontCompatible with drum brake self-adjuster featuring 2.5-inch shoes and a 264 size.
1970MercuryMarquisFront11.03" X 3"; 265
1970MercuryMarquisFront2-1/2" Shoe; 11.03" x 2.5"; 264
1969FordF-100FrontDrum Brake Adjusting Spring Kit fits vehicles with 11" x 2" brakes, 4WD, and 282.
1969FordLTDRearCompatible with a variety of vehicles, this Drum Brake Adjusting Spring Kit is designed to improve drum brake shoe hold down performance.
1969FordLTDFrontCompatible with drum brake self-adjuster featuring 2.5-inch shoes and a 264 size.
1969FordLTDFrontDrum Brake Shoe Hold Down Spring fits Drum Brake Self-Adjuster Cable Guide with 3" Shoes and 265 dimensions
1969MercuryMarquisFront11.03" X 3"; 265
1969MercuryMarquisFront2-1/2" Shoe; 11.03" x 2.5"; 264
1968FordF-100FrontDrum Brake Adjusting Spring Kit fits vehicles with 11" x 2" brakes, 4WD, and 282.
1968FordLTDRearCompatible with a variety of vehicles, this Drum Brake Adjusting Spring Kit is designed to improve drum brake shoe hold down performance.
1968FordLTDFrontDrum Brake Shoe Hold Down Spring fits Drum Brake Self-Adjuster Cable Guide with 3" Shoes and 265 dimensions
1968FordLTDFrontCompatible with drum brake self-adjuster featuring 2.5-inch shoes and a 264 size.
1968MercuryMarquisFront2-1/2" Shoe; 11.03" x 2.5"; 264
1968MercuryMarquisFrontFitment: 3" Shoe with a 11.03" x 3" size for drum brake adjusting spring kit installation on 265 vehicles.
1967FordLTDRearCompatible with a variety of vehicles, this Drum Brake Adjusting Spring Kit is designed to improve drum brake shoe hold down performance.
1967FordLTDFrontDrum Brake Shoe Hold Down Spring fits Drum Brake Self-Adjuster Cable Guide with 3" Shoes and 265 dimensions
1967FordLTDFrontCompatible with drum brake self-adjuster featuring 2.5-inch shoes and a 264 size.
1967MercuryMarquisFrontFitment: 3" Shoe with a 11.03" x 3" size for drum brake adjusting spring kit installation on 265 vehicles.
1967MercuryMarquisFront2-1/2" Shoe; 11.03" x 2.5"; 264
1966FordLTDRearCompatible with a variety of vehicles, this Drum Brake Adjusting Spring Kit is designed to improve drum brake shoe hold down performance.
1966FordLTDFrontDrum Brake Shoe Hold Down Spring fits Drum Brake Self-Adjuster Cable Guide with 3" Shoes and 265 dimensions
1966FordLTDFrontCompatible with drum brake self-adjuster featuring 2.5-inch shoes and a 264 size.
1965FordLTDRearCompatible with a variety of vehicles, this Drum Brake Adjusting Spring Kit is designed to improve drum brake shoe hold down performance.
1965FordLTDFrontDrum Brake Shoe Hold Down Spring fits Drum Brake Self-Adjuster Cable Guide with 3" Shoes and 265 dimensions
1965FordLTDFrontCompatible with drum brake self-adjuster featuring 2.5-inch shoes and a 264 size.
1962ChevroletImpalaRearDrum Brake Self-Adjuster Repair Kit - Fits 228 Models
1962ChevroletImpalaFrontDrum Brake Self-Adjuster Repair Kit - Fits 227 models.
1961ChevroletImpalaRearDrum Brake Self-Adjuster Repair Kit - Fits 228 Models
1961ChevroletImpalaFrontDrum Brake Self-Adjuster Repair Kit - Fits 227 models.
1960ChevroletImpalaRearDrum Brake Self-Adjuster Repair Kit - Fits 228 Models
1960ChevroletImpalaFrontDrum Brake Self-Adjuster Repair Kit - Fits 227 models.

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
