Carlson H1566 Drum Brake Adjusting Screw Assembly - Rear Left

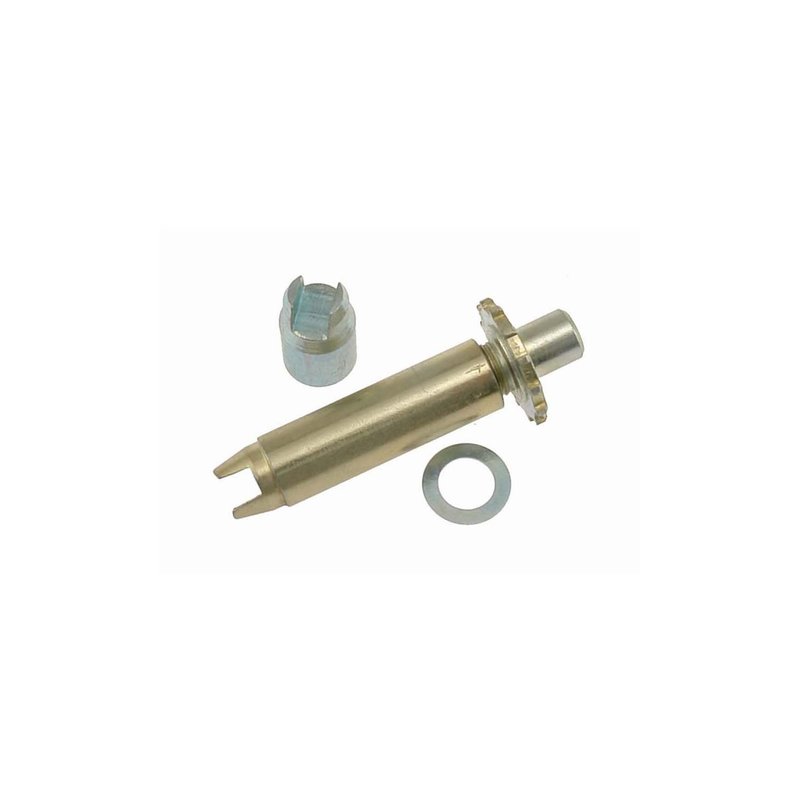

Name: Carlson H1566 Drum Brake Adjusting Screw Assembly - Rear Left
Brand: Carlson
SKU: BBVZ-H1566
Price: 16.53 USD
Availability: InStock

Rear Left

⚙️ 139 vehicles fit this part

🔍

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

$16.53Free Shipping

🚚Free ShippingNo Cost to Continental U.S.

🔄Free Returns*Wrong fit? No cost

🛡️60-Day ReturnsMoney back guarantee

*Free return shipping only qualifies if our fitment verification tool is used.

🔥

✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.

✅OE Direct Replacement — Bolt-on fit, no modifications needed

🚗Fitment: Chevrolet, Isuzu, Pontiac, GMC, Oldsmobile, and Buick, Astro, Hombre, Camaro, Firebird, Blazer, Caprice, S10, Jimmy, Sonoma, Bravada, LLV, S10 Blazer, Typhoon, S15 Jimmy, Syclone, S15, Safari, Monte Carlo, Cutlass Supreme, Regal, El Camino, Caballero, Cutlass, Grand Prix, Bonneville, Parisienne, LeSabre, 98, Custom Cruiser, and Delta 88

🔄Easy Returns — Return within 60 days for a full refund

🚚Fast Shipping — Most orders ship same business day before 1pm CST

Not what you need? Click here for all Drum Brake Adjusting Screw Assembly options

Reliable Drum Brake Adjusting Screw Assembly for Select GM and Isuzu Models

The Carlson H1566 Drum Brake Adjusting Screw Assembly is designed to provide precise adjustment and reliable performance for drum brake systems. Compatible with a range of Buick, Chevrolet, GMC, Isuzu, Oldsmobile, and Pontiac vehicles, this part ensures proper brake shoe positioning and consistent braking response.

Compatible with Buick, Chevrolet, GMC, Isuzu, Oldsmobile, and Pontiac models including Astro, Blazer, Camaro, Firebird, and more
Part number H1566 for accurate identification and fitment
Durable construction to withstand brake system stresses
Ensures proper drum brake shoe adjustment for optimal braking performance
Direct replacement part designed to meet OEM specifications

Product Details and Compatibility

The Carlson H1566 Drum Brake Adjusting Screw Assembly is engineered to fit a variety of vehicles such as the Chevrolet S10, GMC Jimmy, Pontiac Grand Prix, Buick LeSabre, and Isuzu Hombre. This assembly plays a critical role in maintaining the correct clearance between the brake shoes and drum, which is essential for effective braking and even wear. The part number H1566 corresponds to a precise fit for these models, ensuring straightforward installation and reliable operation.

Common Applications and Problem Resolution

Corrects brake shoe misalignment causing uneven wear
Resolves issues with brake drag or insufficient shoe expansion
Addresses noisy or inconsistent drum brake operation
Prevents premature brake component failure due to improper adjustment
Restores proper brake pedal feel and responsiveness

Installation Notes and Tips

When installing the Carlson H1566 adjusting screw assembly, ensure the brake drum and shoes are clean and free of debris. Use appropriate brake tools to adjust the screw assembly to the manufacturer’s specifications. Verify that the brake shoes expand evenly within the drum and that the parking brake mechanism functions correctly after installation. It is recommended to inspect related hardware and replace any worn components during service.

Quality Assurance and Warranty Information

Carlson parts are manufactured to meet or exceed OEM standards for fit, form, and function. The H1566 Drum Brake Adjusting Screw Assembly undergoes quality checks to ensure durability and performance. While specific warranty details may vary, Carlson typically offers coverage against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
