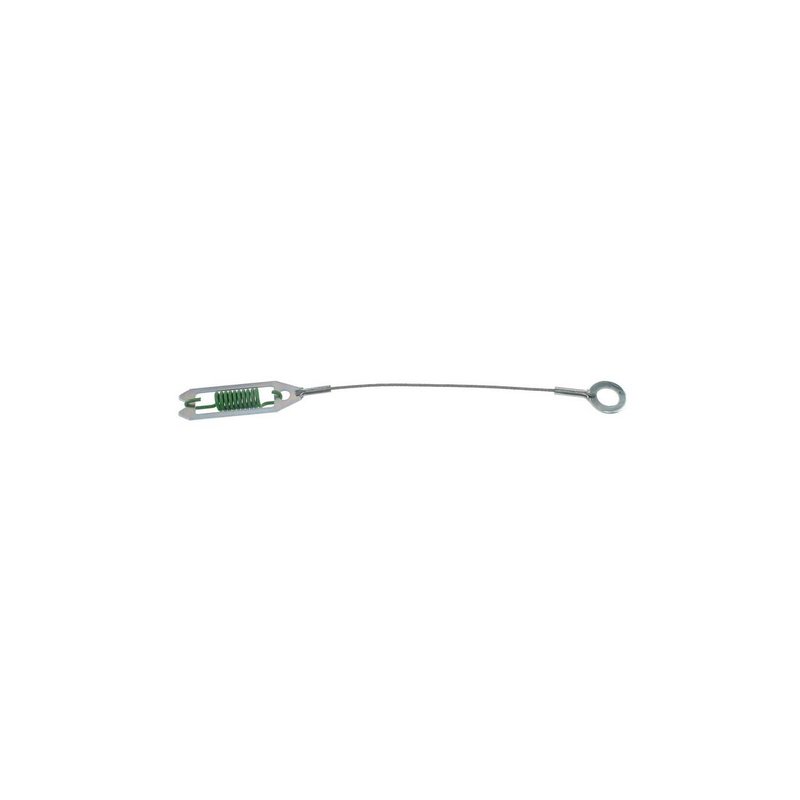

Carlson H2109 Drum Brake Self-Adjuster Cable - Front or Rear

Carlson H2109 Drum Brake Self-Adjuster Cable

Carlson H2109 is a drum brake self-adjuster cable for rear drum brake service on a wide range of Chrysler, Dodge, and Jeep applications. It is used in brake systems that rely on proper cable action to keep the self-adjuster mechanism working as the shoes wear.

• Drum brake self-adjuster cable for rear brake service
• Designed for 9" x 2.5" drum brake applications listed in the fitment data
• Used on Jeep Wrangler, Jeep TJ, Jeep Cherokee, and Dodge Dakota rear drum brake setups
• Also listed for Chrysler Voyager, Town & Country, Grand Voyager, and Dodge Caravan/Grand Caravan rear applications
• Part number H2109 for brake hardware identification and ordering

Fitment Details

• Fits 2003-2006 Jeep TJ, rear, brake backing plate dust hole cover for 9" x 2.5" drums with a 769 return spring kit.
• Fits 2003-2006 Jeep Wrangler, rear, brake backing plate dust hole cover for 9" x 2.5" drums with a 769 return spring kit.
• Fits 1993-2002 Dodge Dakota, rear, brake bleeder screw fits vehicles with 9" brakes and part number 538.
• Fits 1987-1990 Dodge Dakota, rear, brake bleeder screw fits vehicles with 9" brakes and part number 538.
• Fits 1997-2002 Jeep TJ, rear, for use with 9" drum brakes measuring 9" x 2.5" and compatible with application 769.
• Fits 1997-2002 Jeep Wrangler, rear, for use with 9" drum brakes measuring 9" x 2.5" and compatible with application 769.
• Fits 1999-2001 Jeep Cherokee, rear, for use with 9" drum brakes measuring 9" x 2.5" and compatible with application 769.
• Fits 1997-1998 Jeep Cherokee, rear, fits 9" x 2.5" drum brake adjusting spring kit 538.
• Fits 1990-1996 Jeep Cherokee, rear, fits 9" x 2.5" drum brakes, 538 model.
• Fits 1995 Chrysler Grand Voyager, rear, drum brake adjusting spring kit suitable for various models and years.
• Fits 1990-1995 Chrysler Town & Country, rear, drum brake adjusting spring kit suitable for various models and years.
• Fits 1994-1995 Chrysler Voyager, rear, fits 9" x 2.5" drum brake adjusting spring kit 538.
• Fits 1984-1995 Dodge Caravan, rear, drum brake adjusting spring kit suitable for various models and years.
• Fits 1987-1995 Dodge Grand Caravan, rear, drum brake adjusting spring kit suitable for various models and years.
• Fits 1990-1995 Jeep Wrangler, rear, fits 9" x 2.5" drum brake adjusting spring kit 538.
• Fits 1988-1995 Plymouth Grand Voyager, rear, fits 9" x 2.5" drum brake adjusting spring kit 538.
• Fits 1984-1995 Plymouth Voyager, rear, fits 9" x 2.5" drum brake adjusting spring kit 538.
• Fits 1991-1994 Chrysler Grand Voyager, rear, fits 9" x 2.5" drum brake adjusting spring kit 538.
• Fits 1991-1992 Dodge Dakota, rear, drum brake adjusting spring kit suitable for various models and years.
• Fits 1990-1992 Jeep Comanche, rear, fits 9" x 2.5" drum brakes, 538 model.
• Fits 1990 Jeep Wagoneer, rear, fits 9" x 2.5" drum brakes, 538 model.
• Fits 1976 Dodge Dart, rear, w/9" brake; 329.
• Fits 1969-1975 Dodge Dart, rear, w/9" x 2" brakes; 329.
• Fits 1973-1975 Dodge Dart, front, 9" x 2.5" brakes, 330 - drum brake shoe return spring kit.
• Fits 1969-1972 Dodge Dart, front, w/9" brake; 330.

What It Helps Address

• Broken or stretched drum brake self-adjuster cable
• Inconsistent self-adjuster operation in rear drum brakes
• Brake shoe adjustment issues on 9" x 2.5" drum systems
• Wear-related service needs on Jeep, Dodge, Chrysler, and Plymouth drum brake hardware
• Restoration or maintenance of older rear drum brake assemblies

Installation Notes

Verify the brake size, axle/brake hardware configuration, and application notes before installation. This part number H2109 is listed across multiple rear drum brake setups, including Jeep Wrangler, Jeep TJ, and Dodge Dakota applications, so matching the exact drum and hardware package is important for correct fitment.

For best results, inspect the surrounding brake hardware for wear, corrosion, or damage before reassembly. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

Carlson brake hardware is built for brake system service where proper component interaction matters. The braking system depends on each part working correctly, and H2109 is intended to support that requirement in listed drum brake applications.
