Carlson H2509 Drum Brake Self-Adjuster Repair Kit - Front Right or Rear Right

Name: Carlson H2509 Drum Brake Self-Adjuster Repair Kit - Front Right or Rear Right
Brand: Carlson
SKU: BBVZ-H2509
Price: 32.04 USD
Availability: OutOfStock

Rear Right and Front Right

146 vehicles fit this part

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

$32.04Free Shipping

Free ShippingNo Cost to Continental U.S.

Free Returns*Wrong fit? No cost

60-Day ReturnsMoney back guarantee

*Free return shipping only qualifies if our fitment verification tool is used.

Out of Stock

OE Direct Replacement — Bolt-on fit, no modifications needed

Fitment: Chevrolet and GMC, Bel Air, Blazer, C10, C10 Suburban, C20, C20 Suburban, Caprice, Corvette, G10, G15, G15/G1500 Van, G20, G25, G25/G2500 Van, Impala, Jimmy, K10, K10 Suburban, K20, K20 Suburban, K5 Blazer, P10, and P20

Easy Returns — Return within 60 days for a full refund

Fast Shipping — Most orders ship same business day before 1pm CST

Not what you need? See all Drum Brake Self-Adjuster Repair Kit options

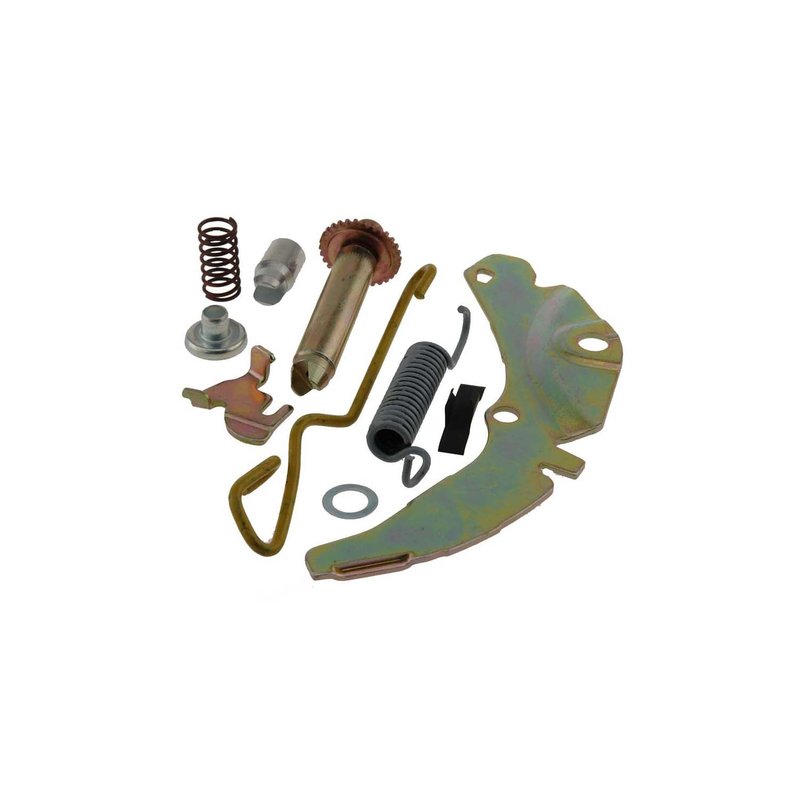

Carlson H2509 Drum Brake Self-Adjuster Repair Kit

Carlson H2509 is a drum brake self-adjuster repair kit for rear right and front right drum brake applications on select Chevrolet and GMC vehicles. It is built for restoring proper brake adjuster function in older drum brake systems where consistent shoe adjustment is critical to braking performance.

Key Features

Drum brake self-adjuster repair kit for service on select rear right and front right applications
Designed for drum brake systems used on Chevrolet C10, C20, K10, K20, Blazer, Corvette, Impala, Caprice, and GMC Jimmy models
Fits multiple OE-style drum brake configurations, including 11" x 2" and 11.15" x 2.75" brake setups
Supports applications identified with 227, 228, 248, and 280 model references in the fitment data
Carlson H2509 is listed across 1963-1975 vehicle applications

Detailed Description

Brakes work as a system, and the self-adjuster is part of the mechanism that helps maintain correct shoe-to-drum clearance as the lining wears. Carlson H2509 is intended for drum brake service on a wide range of classic Chevrolet and GMC platforms, including Chevrolet Bel Air, Impala, Caprice, Corvette, C10, C20, K10, K20, Blazer, and GMC Jimmy. This part number, H2509, appears in rear right and front right fitments depending on the vehicle and brake configuration.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

Loose or inconsistent drum brake adjustment
Excessive brake pedal travel caused by worn adjuster components
Uneven rear brake response on drum-equipped vehicles
Brake shoe clearance issues after normal wear
Service needs on older Chevrolet and GMC drum brake assemblies

Installation Notes and Tips

Verify the brake shoe width, drum size, and model reference before ordering. Fitment varies by year, make, model, and position, so confirm whether your application is rear right or front right. For example, Carlson H2509 fits 1975 Chevrolet C10, rear right; 1975 Chevrolet K10, rear right; and 1970 Chevrolet Impala, front right, among other listed applications. On classic drum brake systems, inspect related wear points in the adjuster mechanism and brake hardware during service.

Quality Assurance

Carlson manufactures brake service components for OE-style repair applications, and this kit is cataloged for direct use in the listed vehicle fitments. Always confirm the brake configuration against the vehicle’s drum size and model reference before installation.
