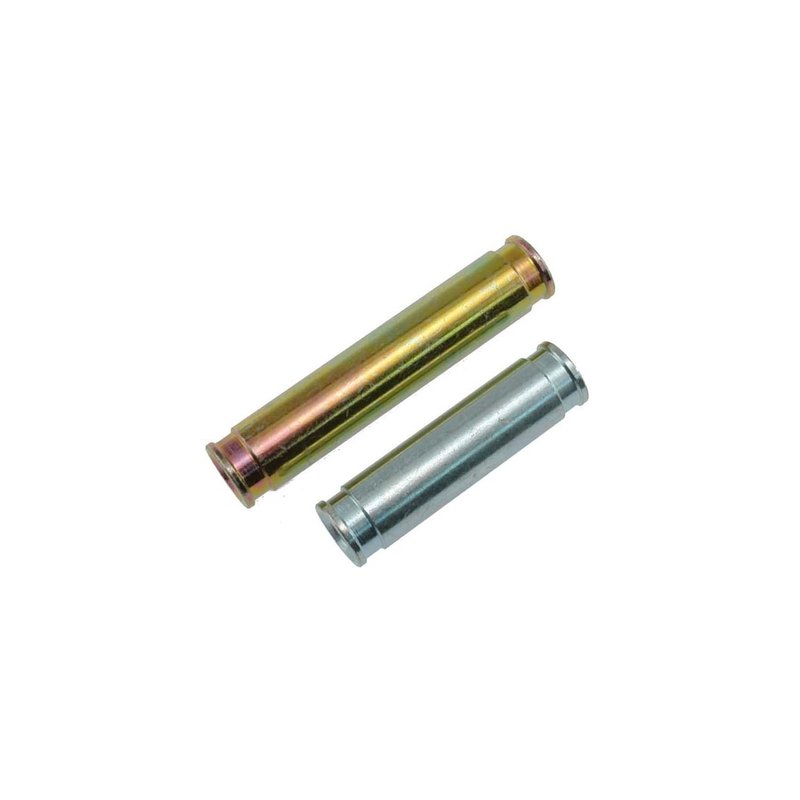

Carlson H5121 Disc Brake Caliper Pin Sleeve - Front or Rear
OE Quality 60-Day Returns
Carlson

Carlson H5121 Disc Brake Caliper Pin Sleeve - Front or Rear

Brand Carlson H5121
Position Front
Fits Toyota, Geo, and Chevrolet · 59 vehicles

Caliper guide pin sleeves. Help the brake hardware work together for consistent braking performance.

Brake service hardware. Replace worn hardware when friction materials are serviced.

$18.66Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $18.66
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Caliper Pin Sleeve options

Carlson H5121 Disc Brake Caliper Pin Sleeve

Carlson H5121 is a disc brake caliper pin sleeve for brake hardware service on select Toyota, Geo, and Chevrolet applications. It is used in caliper repair work where guide pin sleeve wear can affect brake feel and caliper movement.

Key Features

  • Disc brake caliper pin sleeve for brake hardware replacement
  • Supports caliper guide pin service on front and rear disc brake applications
  • Built for select D242 and D501 brake configurations
  • Fits Toyota Corolla, Toyota Tercel, Toyota Paseo, Toyota Previa, Geo Prizm, and Chevrolet Nova applications
  • Carlson H5121 part number for brake hardware identification

Detailed Description

Brakes work as a system, and worn hardware can affect how the caliper slides and releases. Carlson H5121 is a disc brake caliper pin sleeve made for repair service on specific front and rear disc brake setups, including D242 and D501 applications. It is a direct-fit hardware service part for vehicles such as Toyota Corolla, Toyota Tercel, Toyota Paseo, Toyota Previa, Geo Prizm, and Chevrolet Nova.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Is Used For

  • Replacing worn caliper guide pin sleeves during brake service
  • Restoring smooth caliper movement on disc brake systems
  • Addressing brake drag caused by worn hardware
  • Correcting uneven pad wear linked to guide pin sleeve wear
  • Servicing front or rear brake hardware on listed Toyota, Geo, and Chevrolet models

Installation Notes and Tips

Verify brake configuration before ordering. This part fits 1999 Toyota Paseo, front, non-ABS, disc, D242; 1996-1998 Toyota Paseo, front, disc brakes with size D242; 1991-1998 Toyota Tercel, front, disc brakes with size D242; 1991-1997 Toyota Previa, rear, disc, D501; 1989-1992 Geo Prizm, front, disc brake caliper pin boot kit model D242; 1988-1992 Toyota Corolla, front, disc brakes with size D242; and 1985-1988 Chevrolet Nova, front, disc brake caliper pin boot kit model D242.

Inspect related brake hardware and caliper components during service so the replacement matches the existing brake setup.

Quality Assurance

Carlson brake hardware is engineered for service applications where caliper movement and brake system consistency matter. H5121 is identified for specific OE-style repair use on the listed vehicles and brake configurations.

This part fits 59 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypePositionNotes
1999ToyotaPaseo——FrontNon-ABS; Disc; D242
1998ToyotaPaseo——FrontFits disc brakes with size D242 for caliper repair.
1998ToyotaTercel——FrontFits disc brakes with size D242 for caliper repair.
1997ToyotaPaseo——FrontFits disc brakes with size D242 for caliper repair.
1997ToyotaPrevia——RearCaliper Pin Boot Kit; Disc; D501
1997ToyotaTercel——FrontFits disc brakes with size D242 for caliper repair.
1996ToyotaPaseo——FrontFits disc brakes with size D242 for caliper repair.
1996ToyotaPrevia——RearCaliper Pin Boot Kit; Disc; D501
1996ToyotaTercel——FrontFits disc brakes with size D242 for caliper repair.
1995ToyotaPrevia——RearCaliper Pin Boot Kit; Disc; D501
1995ToyotaTercel——FrontFits disc brakes with size D242 for caliper repair.
1994ToyotaPrevia——RearCaliper Pin Boot Kit; Disc; D501
1994ToyotaTercel——FrontFits disc brakes with size D242 for caliper repair.
1993ToyotaPrevia——RearCaliper Pin Boot Kit; Disc; D501
1993ToyotaTercel——FrontFits disc brakes with size D242 for caliper repair.
1992GeoPrizm——FrontDisc Brake Caliper Pin Boot Kit fits model D242.
1992ToyotaCorollaSR5FWDFrontFits disc brakes with size D242 for caliper repair.
1992ToyotaCorollaLSXFWDFrontFits disc brakes with size D242 for caliper repair.
1992ToyotaCorollaLEFWDFrontFits disc brakes with size D242 for caliper repair.
1992ToyotaCorollaDLXFWDFrontFits disc brakes with size D242 for caliper repair.
1992ToyotaCorollaDLX All TracAWDFrontFits disc brakes with size D242 for caliper repair.
1992ToyotaCorollaBaseFWDFrontFits disc brakes with size D242 for caliper repair.
1992ToyotaPrevia——RearCaliper Pin Boot Kit; Disc; D501
1992ToyotaTercel——FrontFits disc brakes with size D242 for caliper repair.
1991GeoPrizm——FrontDisc Brake Caliper Pin Boot Kit fits model D242.
1991ToyotaCorollaSR5FWDFrontFits disc brakes with size D242 for caliper repair.
1991ToyotaCorollaLEFWDFrontFits disc brakes with size D242 for caliper repair.
1991ToyotaCorollaGTS—FrontFits disc brakes with size D242 for caliper repair.
1991ToyotaCorollaDLXFWDFrontFits disc brakes with size D242 for caliper repair.
1991ToyotaCorollaDLX All TracAWDFrontFits disc brakes with size D242 for caliper repair.
1991ToyotaCorollaBaseFWDFrontFits disc brakes with size D242 for caliper repair.
1991ToyotaPrevia——RearCaliper Pin Boot Kit; Disc; D501
1991ToyotaTercel——FrontFits disc brakes with size D242 for caliper repair.
1990GeoPrizm——FrontDisc Brake Caliper Pin Boot Kit fits model D242.
1990ToyotaCorollaSR5FWDFrontFits disc brakes with size D242 for caliper repair.
1990ToyotaCorollaSR5 All TracAWDFrontFits disc brakes with size D242 for caliper repair.
1990ToyotaCorollaLEFWDFrontFits disc brakes with size D242 for caliper repair.
1990ToyotaCorollaGTS—FrontFits disc brakes with size D242 for caliper repair.
1990ToyotaCorollaDLXFWDFrontFits disc brakes with size D242 for caliper repair.
1990ToyotaCorollaDLX All TracAWDFrontFits disc brakes with size D242 for caliper repair.
1990ToyotaCorollaBaseFWDFrontFits disc brakes with size D242 for caliper repair.
1989GeoPrizm——FrontDisc Brake Caliper Pin Boot Kit fits model D242.
1989ToyotaCorollaSR5—FrontFits disc brakes with size D242 for caliper repair.
1989ToyotaCorollaSR5 All Trac—FrontFits disc brakes with size D242 for caliper repair.
1989ToyotaCorollaLE—FrontFits disc brakes with size D242 for caliper repair.
1989ToyotaCorollaGTS—FrontFits disc brakes with size D242 for caliper repair.
1989ToyotaCorollaDLX—FrontFits disc brakes with size D242 for caliper repair.
1989ToyotaCorollaDLX All Trac—FrontFits disc brakes with size D242 for caliper repair.
1989ToyotaCorollaBase—FrontFits disc brakes with size D242 for caliper repair.
1988ChevroletNova——FrontDisc Brake Caliper Pin Boot Kit fits model D242.
1988ToyotaCorollaSR5—FrontFits disc brakes with size D242 for caliper repair.
1988ToyotaCorollaSR5 All Trac—FrontFits disc brakes with size D242 for caliper repair.
1988ToyotaCorollaLE—FrontFits disc brakes with size D242 for caliper repair.
1988ToyotaCorollaGTS—FrontFits disc brakes with size D242 for caliper repair.
1988ToyotaCorollaDLX—FrontFits disc brakes with size D242 for caliper repair.
1988ToyotaCorollaDLX All Trac—FrontFits disc brakes with size D242 for caliper repair.
1987ChevroletNova——FrontDisc Brake Caliper Pin Boot Kit fits model D242.
1986ChevroletNova——FrontDisc Brake Caliper Pin Boot Kit fits model D242.
1985ChevroletNova——FrontDisc Brake Caliper Pin Boot Kit fits model D242.
