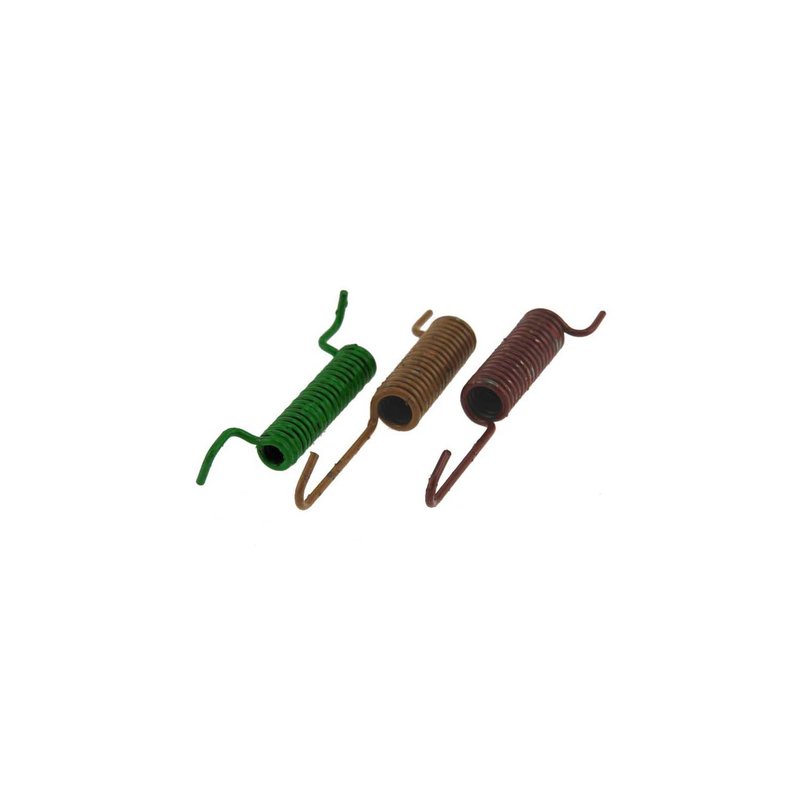

Carlson H9259 Parking Brake Hardware Kit - Rear
OE Quality 60-Day Returns
Carlson

Carlson H9259 Parking Brake Hardware Kit - Rear

Brand Carlson H9259
Position Rear
Fits GMC and Chevrolet · 22 vehicles

Parking brake hardware kit. Keeps the parking brake system working together for reliable holding power.

System-matched components. Built to help the brake parts work together for consistent performance.

$20.24Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $20.24
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Parking Brake Hardware Kit options

Carlson H9259 Parking Brake Hardware Kit

Carlson H9259 is a parking brake hardware kit for rear brake service on select Chevrolet and GMC C3500 applications. It is built for vehicles that use a transmission-mounted parking brake setup with a 9" x 3" brake configuration, helping restore proper parking brake function on the C3500 platform.

Key Features

  • Parking brake hardware kit for rear service applications
  • Designed for 1990-2000 GMC C3500 rear, transmission mounted, 9" x 3", 647
  • Designed for 1990-1995 Chevrolet C3500 rear, transmission mounted, 9" x 3", 647
  • Designed for 1996-2000 Chevrolet C3500 rear, S647 parking brake hardware kit application
  • Carlson H9259 part number for direct catalog identification

Product Details

Parking brakes are part of the vehicle’s braking system and need the correct hardware to operate consistently. Carlson H9259 is a service kit for rear parking brake applications on Chevrolet C3500 and GMC C3500 trucks, with fitment listed for the years shown below. If you are servicing a 1990-2000 GMC C3500 or a 1990-2000 Chevrolet C3500, this part number provides a cataloged match for the specified rear parking brake setup. Carlson H9259 is also referenced as H9259 for ordering and lookup.

Common Issues This Part Can Address

  • Parking brake hardware wear during brake service
  • Loose or inconsistent parking brake operation
  • Corrosion in rear parking brake components
  • Noise from worn parking brake service parts
  • Reduced parking brake hold on C3500 applications

Installation Notes and Tips

  • Verify rear brake configuration before ordering, including transmission-mounted 9" x 3" notes where listed.
  • Match the vehicle year, make, model, and brake setup to the fitment data for Carlson H9259.
  • Inspect related parking brake components during service so the system operates correctly after repair.

Quality Assurance

Carlson catalogs this part as a parking brake hardware kit within its brake service kit line, with application-specific fitment for Chevrolet and GMC C3500 rear parking brake service.

  • Fits 1990-2000 GMC C3500, rear, transmission mounted; 9" x 3"; 647
  • Fits 1990-1995 Chevrolet C3500, rear, transmission mounted; 9" x 3"; 647
  • Fits 1996-2000 Chevrolet C3500, rear, S647; Parking Brake Hardware Kit

Related reading

This part fits 22 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2000ChevroletC3500RearS647; Parking Brake Hardware Kit
2000GMCC3500RearTransmission Mounted; 9" X 3"; 647
1999ChevroletC3500RearS647; Parking Brake Hardware Kit
1999GMCC3500RearTransmission Mounted; 9" X 3"; 647
1998ChevroletC3500RearS647; Parking Brake Hardware Kit
1998GMCC3500RearTransmission Mounted; 9" X 3"; 647
1997ChevroletC3500RearS647; Parking Brake Hardware Kit
1997GMCC3500RearTransmission Mounted; 9" X 3"; 647
1996ChevroletC3500RearS647; Parking Brake Hardware Kit
1996GMCC3500RearTransmission Mounted; 9" X 3"; 647
1995ChevroletC3500RearTransmission Mounted; 9" X 3"; 647
1995GMCC3500RearTransmission Mounted; 9" X 3"; 647
1994ChevroletC3500RearTransmission Mounted; 9" X 3"; 647
1994GMCC3500RearTransmission Mounted; 9" X 3"; 647
1993ChevroletC3500RearTransmission Mounted; 9" X 3"; 647
1993GMCC3500RearTransmission Mounted; 9" X 3"; 647
1992ChevroletC3500RearTransmission Mounted; 9" X 3"; 647
1992GMCC3500RearTransmission Mounted; 9" X 3"; 647
1991ChevroletC3500RearTransmission Mounted; 9" X 3"; 647
1991GMCC3500RearTransmission Mounted; 9" X 3"; 647
1990ChevroletC3500RearTransmission Mounted; 9" X 3"; 647
1990GMCC3500RearTransmission Mounted; 9" X 3"; 647
