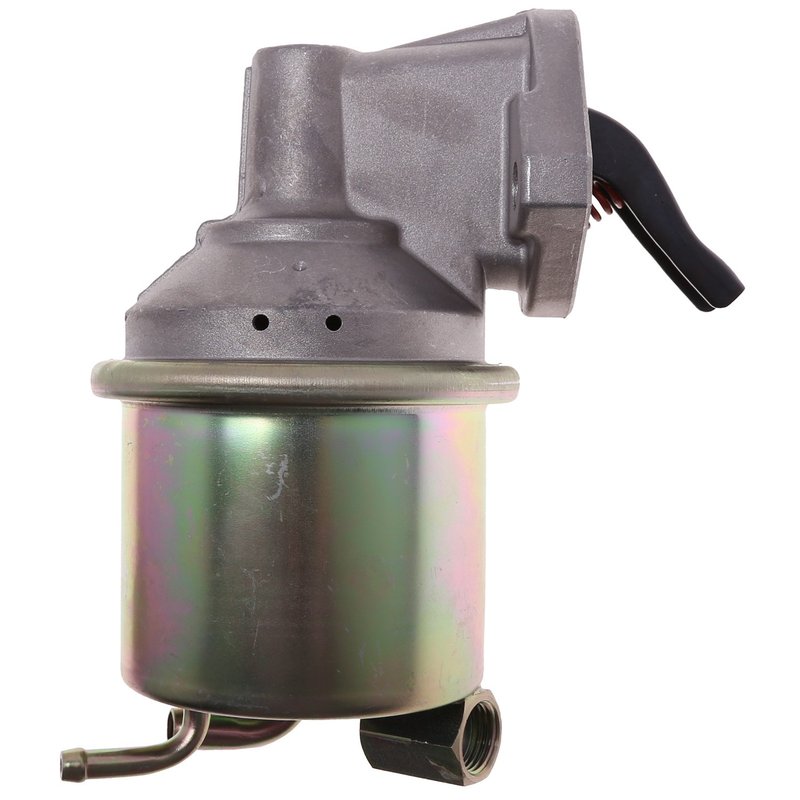

Carter M6101 Mechanical Fuel Pump

Carter M6101 Mechanical Fuel Pump

The Carter M6101 is a mechanical fuel pump built for OE-style fit, form, and function on select Chevrolet, Pontiac, and Buick applications. It uses a hose inlet, a threaded outlet, and a gasket or seal is included for service replacement work.

Key Features

• Mechanical fuel pump design for carbureted fuel delivery systems
• Hose inlet with one threaded outlet for a direct-style connection
• Outlet fitting thread size: 5/8-18 UNF-2B
• Minimum flow rating: 40
• Operating pressure range: 7.5 to 9
• Gasket or seal included
• OE fit, form, and function focus from Carter Fuel Systems

Detailed Description

Carter M6101 is a mechanical fuel pump for classic GM vehicles that require a long pump housing and a 3-line pump configuration. It is listed for 1970-1981 Chevrolet Camaro, 1978 and 1981 Pontiac Firebird, 1980 Chevrolet Malibu, 1984 Buick Regal with police/taxi packages, 1982-1984 Chevrolet Monte Carlo with police package, 1982-1983 Chevrolet Impala with police package, 1985 Chevrolet Impala, 1984-1988 Chevrolet Monte Carlo, 1985-1988 Chevrolet Caprice, 1985 Pontiac Parisienne, and 1986 Pontiac Bonneville, Grand Prix, and Parisienne with 2nd design requirements. This part cross-references Airtex Fuel Pumps 40777 and Delphi MF0013 for the same application. The Carter M6101 is a practical replacement choice when restoring fuel delivery on a Camaro, Monte Carlo, or Firebird with the correct pump housing and line setup.

What It Helps Address

• Hard starting caused by weak fuel delivery
• Fuel starvation under normal engine operation
• Low fuel pressure in carbureted systems
• Fuel leakage at a worn pump seal area
• Replacement needs on long-housing, 3-line pump applications

Installation Notes and Tips

Verify the vehicle uses a long pump housing and the correct 3-line pump configuration before ordering. Confirm the outlet thread size, hose inlet layout, and application notes such as police/taxi package or 2nd design requirements where listed. Use the included gasket or seal during installation and inspect fuel lines, mounting surfaces, and the fuel tank pickup for wear or contamination before final assembly.

Quality Assurance

Carter Fuel Systems positions this pump as an OE-style replacement with premium fit, form, and function, along with broad vehicle coverage and problem-solving design details for service work on classic GM fuel systems.
