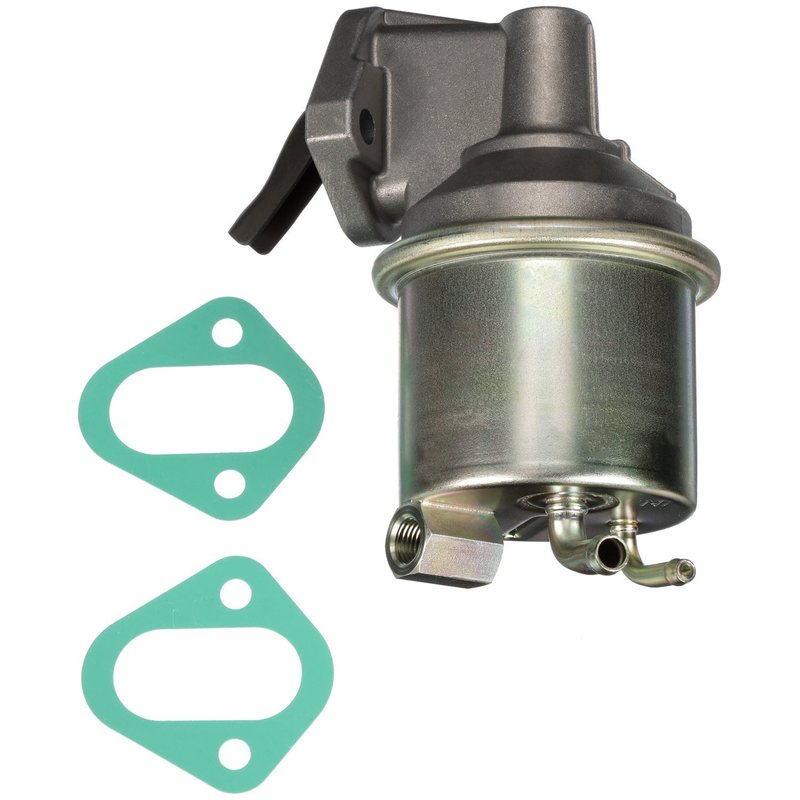

Carter M6955 Mechanical Fuel Pump
| Brand | Carter M6955 |
|---|---|
| Gasket Or Seal Included | Yes |
| Inlet Outside Diameter | 9.5 |
| Inlet Quantity | 1 |
| Inlet Type | Hose |
| Maximum Pressure | 10 |
| Minimum Flow Rating | 51 |
| Minimum Pressure | 7.5 |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Outlet Fitting Thread Size | 1/4-18 NPSF |
| Outlet Quantity | 1 |
| Outlet Type | Threaded |
| Pump Type | Mechanical |
| Fits | Chevrolet · 13 vehicles |
OE fit, form, and function. Built for a direct replacement with dependable performance.
Gasket or seal included. Helps simplify installation and reduce extra parts sourcing.
Mechanical pump design. Delivers fuel with a simple, engine-driven setup.
Cross-references Airtex Fuel Pumps 41240, Delphi MF0026 and GMB 530-8110 for the same application. See all 13.
Carter M6955 Mechanical Fuel Pump for Corvette
The Carter M6955 is a mechanical fuel pump built for OE-style fit, form, and function on select Chevrolet Corvette applications. It is engineered for consistent fuel delivery with a hose inlet, threaded outlet, and a 1/4-18 NPSF outlet fitting thread size.
Compatible with 1970-1981 Chevrolet Corvette applications, including 1977-1981 Chevrolet Corvette with 3 Line Pump, this pump supports factory-style mechanical fuel system service. The Carter M6955 is a direct-fit option for Corvette owners replacing a worn mechanical fuel pump.
Key Features
- Mechanical fuel pump design for carbureted fuel system applications
- Hose inlet with 9.5 mm outside diameter
- Threaded outlet with 1/4-18 NPSF fitting thread size
- One inlet and one outlet for straightforward fuel routing
- Minimum flow rating of 51
- Operating pressure range of 7.5 to 10
- Gasket or seal included for service replacement
- Two mounting holes for OE-style installation
Product Details
Carter Fuel Systems focuses on premium OE fit, form, and function with broad vehicle coverage and problem-solving design features. The M6955 follows that approach with a mechanical pump layout suited to Chevrolet Corvette fuel system service, including 1970-1976 Corvette and 1977-1981 Corvette with 3 Line Pump configurations. This part cross-references Airtex Fuel Pumps 41240 and Delphi MF0026 for the same application.
What This Fuel Pump Helps Address
- Hard starting caused by weak fuel delivery
- Fuel starvation under normal driving conditions
- Low fuel pressure at the carburetor
- Erratic engine operation from an aging mechanical pump
- Fuel system service needs on classic Chevrolet Corvette models
Installation Notes and Tips
Verify the inlet and outlet orientation before installation and confirm the outlet thread size matches the fuel line connection. Use the included gasket or seal during installation, and inspect the mounting surface for cleanliness and flatness before tightening the pump to the engine.
Because this is a mechanical fuel pump, confirm that the vehicle uses a compatible mechanical fuel system and that the application matches the listed Corvette fitment, including the 3 Line Pump note where specified.
Quality Assurance
Carter positions this fuel pump within its OE-fit replacement program, with attention to vehicle coverage, form, and function for service-ready replacement on classic Chevrolet Corvette applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1981 | Chevrolet | Corvette | — | 5.7L | V8 | — | N/A | with 3 Line Pump |
| 1980 | Chevrolet | Corvette | — | 5.0L | V8 | — | N/A | with 3 Line Pump |
| 1980 | Chevrolet | Corvette | — | 5.7L | V8 | — | N/A | with 3 Line Pump |
| 1979 | Chevrolet | Corvette | — | 5.7L | V8 | — | N/A | with 3 Line Pump |
| 1978 | Chevrolet | Corvette | — | 5.7L | V8 | — | N/A | with 3 Line Pump |
| 1977 | Chevrolet | Corvette | — | 5.7L | V8 | — | N/A | with 3 Line Pump |
| 1976 | Chevrolet | Corvette | Stingray | 5.7L | V8 | GAS | N/A | — |
| 1975 | Chevrolet | Corvette | Stingray | 5.7L | V8 | GAS | N/A | — |
| 1974 | Chevrolet | Corvette | Base | 5.7L | V8 | GAS | N/A | — |
| 1973 | Chevrolet | Corvette | Base | 5.7L | V8 | GAS | N/A | — |
| 1972 | Chevrolet | Corvette | Base | 5.7L | V8 | GAS | N/A | — |
| 1971 | Chevrolet | Corvette | Base | 5.7L | V8 | GAS | N/A | — |
| 1970 | Chevrolet | Corvette | Base | 5.7L | V8 | GAS | N/A | — |
