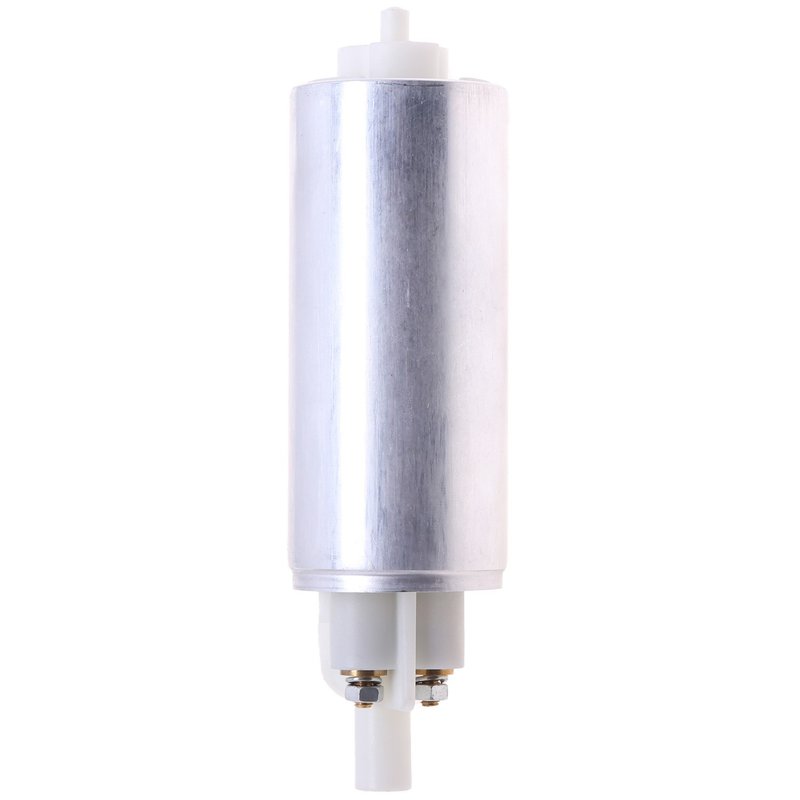

Carter P72206 Electric Fuel Pump - In-Tank
| Brand | Carter P72206 |
|---|---|
| Position | In-Tank |
| Fuel Pump Inlet Type | Strainer |
| Fuel Sending Unit Included | No |
| Negative Ground | Yes |
| Inlet Outside Diameter | 5.0 |
| Length | 126.0 |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Terminal Type | Threaded |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 2 |
| Connector Shape | Post |
| Gasket Or Seal Included | No |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Maximum Flow Rating | 42.3 |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose connection |
| Outlet Quantity | 1 |
| In Tank or External | In tank |
| Mounting Bracket Included | No |
| Maximum Pressure | 10.0 |
| Outlet Outside Diameter | 9.5 |
| Pump Type | Electric |
| Voltage | 12v |
| Fits | Volvo · 31 vehicles |
OE fit, form, function. Built for a specific fit with the right balance of installation and performance.
Electric fuel pump. Delivers gas with an internal, in-tank design for dependable fuel delivery.
Threaded terminals. Male post connections and a 2-wire setup simplify electrical hookup.
Cross-references Airtex Fuel Pumps E8186, Walker Products 590-1010 and 820132 for the same application. See all 10.
Carter P72206 Electric Fuel Pump for Volvo
The Carter P72206 is a 12V in-tank electric fuel pump built for specific-fit Volvo applications. It is a gas fuel pump with a threaded terminal design, male post connector, and a hose connection outlet for direct replacement use in the correct vehicle platform.
Key Features
- Specific-fit electric fuel pump for selected Volvo models
- In-tank design for gas fuel systems
- 12V operation with negative ground
- Maximum flow rating of 42.3 and maximum pressure of 10.0
- Threaded terminal type with 2-wire, 2-terminal configuration
- Hose connection outlet and strainer inlet type
- Internal pump construction for in-tank mounting
Product Details
Carter fuel systems are built around OE fit, form, and function, with coverage aimed at direct replacement applications. The P72206 electric fuel pump is engineered for in-tank installation and is listed for Volvo 740, 760, 780, 850, 940, 960, S90, and V90 applications with the correct two-pump system configuration. This part number, P72206, is a direct-fit option for drivers servicing Volvo fuel delivery concerns where the original in-tank pump needs replacement.
This part cross-references Airtex Fuel Pumps E8186 for the same application.
Common Issues This Pump Can Address
- Hard starting caused by weak fuel delivery
- Engine stalling from insufficient fuel pressure
- Fuel starvation under load or during acceleration
- Loss of prime in an aging in-tank pump assembly
- Poor drivability related to inconsistent pump output
Installation Notes and Tips
Verify the vehicle uses the listed in-tank, two-pump system before ordering. Confirm connector style, terminal layout, inlet and outlet orientation, and pump length against the original unit. This pump does not include a fuel sending unit, regulator, gasket or seal, lock ring, wiring harness, mounting hardware, or strainer, so reuse or source the required related components as needed for the repair.
Compatible With 1986-1990 Volvo 760, In-Tank; 1988-1992 Volvo 740, In-Tank; 1989-1991 Volvo 780, In-Tank; 1991-1995 Volvo 940, In-Tank; 1992-1997 Volvo 960, In-Tank; 1995-1997 Volvo 850, In-Tank; 1998 Volvo S90, In-Tank; and 1998 Volvo V90, In-Tank. For Volvo fuel pump replacement searches, Carter P72206 matches the specified in-tank applications and two-pump system notes.
Quality Assurance
Carter positions this fuel pump line around OE-style fitment and application coverage for dependable replacement service. The P72206 is built as a specific-fit electric fuel pump for the listed Volvo applications and follows the brand’s focus on form, fit, and function.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1998 | Volvo | S90 | 2.9L | L6 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1998 | Volvo | V90 | 2.9L | L6 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1997 | Volvo | 850 | 2.3L | L5 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1997 | Volvo | 850 | 2.4L | L5 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1997 | Volvo | 960 | 2.9L | L6 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1996 | Volvo | 850 | 2.3L | L5 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1996 | Volvo | 960 | 2.9L | L6 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1995 | Volvo | 850 | 2.3L | L5 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1995 | Volvo | 940 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1995 | Volvo | 960 | 2.9L | L6 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1994 | Volvo | 940 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1994 | Volvo | 960 | 2.9L | L6 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1993 | Volvo | 940 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1993 | Volvo | 960 | 2.9L | L6 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1992 | Volvo | 740 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1992 | Volvo | 940 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1992 | Volvo | 960 | 2.9L | L6 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1991 | Volvo | 740 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1991 | Volvo | 780 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1991 | Volvo | 940 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1990 | Volvo | 740 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1990 | Volvo | 760 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1990 | Volvo | 780 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1989 | Volvo | 740 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1989 | Volvo | 760 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1989 | Volvo | 780 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1988 | Volvo | 740 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1988 | Volvo | 760 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1987 | Volvo | 760 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1986 | Volvo | 760 | 2.3L | L4 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
| 1986 | Volvo | 760 | 2.8L | V6 | In-Tank | 2 Pump System Requires In-Tank & In-Line Pump |
