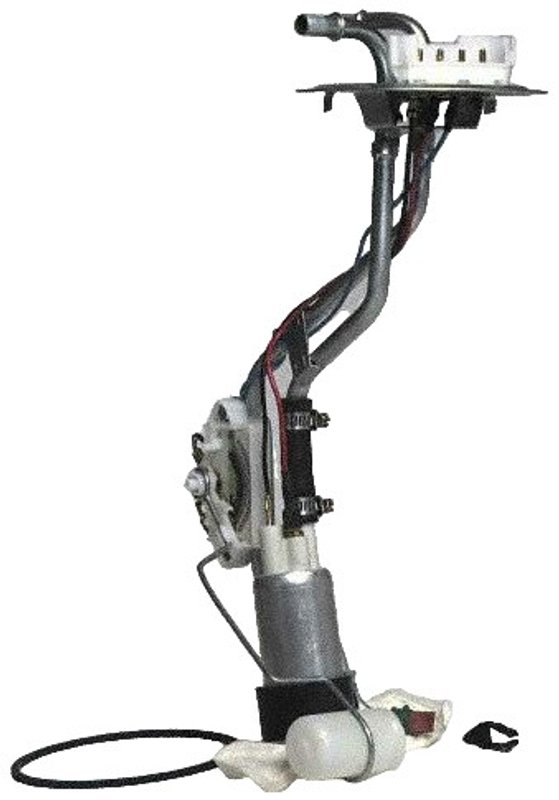

Carter P74528S Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Ford and Mazda Trucks

The Carter P74528S fuel pump hanger assembly is designed specifically for Ford Ranger and Mazda B2300, B3000, and B4000 models. This in-tank electric fuel pump hanger ensures consistent fuel delivery with a durable steel construction and integrated fuel sending unit.

• Constructed from durable steel for long-lasting performance
• Includes fuel sending unit and strainer for accurate fuel level readings and filtration
• Designed for negative ground electrical systems with 12V operation
• Features a 300-inch wiring harness with 20-gauge wire and pin terminals
• Oval-shaped female connector with four male terminals for secure connections
• Includes gasket or seal to maintain tank integrity
• Specific fit for Ford Ranger and Mazda B-series trucks (B2300, B3000, B4000)
• Electric pump type with minimum flow rating between 18 and 26 GPH and minimum pressure of 40 PSI

Detailed Product Description

The Carter P74528S fuel pump hanger assembly is engineered for precise fitment in Ford Ranger and Mazda B-series trucks, including B2300, B3000, and B4000 models. This assembly features a steel construction that provides strength and resistance to corrosion inside the fuel tank. The included fuel sending unit allows for accurate fuel level monitoring, while the integrated strainer helps prevent debris from entering the fuel system. The electric pump operates at 12 volts with a minimum flow rating between 18 and 26 gallons per hour and maintains a minimum pressure of 40 PSI, ensuring reliable fuel delivery under various driving conditions.

Common Applications and Issues Addressed

• Replacement for faulty or worn fuel pump hangers in Ford Ranger and Mazda B-series trucks
• Resolves inconsistent fuel gauge readings due to sending unit failure
• Prevents fuel delivery interruptions caused by clogged strainers or damaged pumps
• Addresses low fuel pressure issues affecting engine performance
• Suitable for in-tank electric fuel pump upgrades or repairs

Installation Notes and Tips

Installation of the Carter P74528S requires removal of the fuel tank to access the in-tank assembly. Ensure the wiring harness length of 300 inches and 20-gauge wire are compatible with your vehicle’s electrical system. The assembly includes a gasket or seal to prevent leaks but does not come with mounting hardware or a lock ring, so reuse existing components if possible. Verify connector compatibility with the oval female connector and four-pin male terminals before installation. Proper grounding is essential as this unit is designed for negative ground systems.

Quality Assurance and Warranty

Carter manufactures the P74528S fuel pump hanger assembly to meet OEM specifications for Ford and Mazda trucks. The steel construction and included components such as the fuel sending unit and strainer are tested for durability and performance. While specific warranty details are not provided, Carter products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or contact the manufacturer for warranty information.
