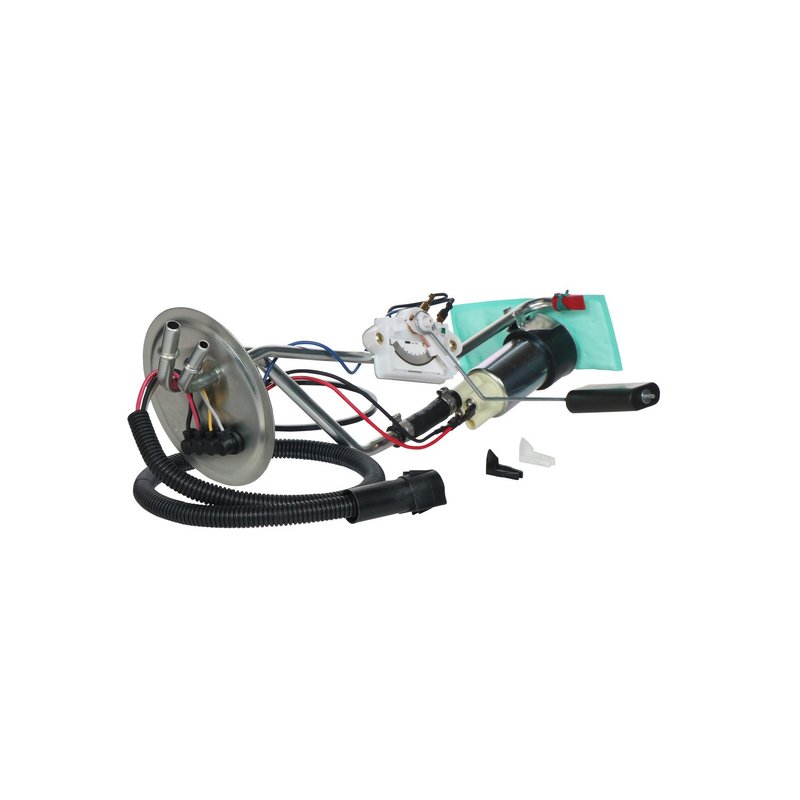

Carter P74611S Fuel Pump Hanger Assembly
| Brand | Carter P74611S |
|---|---|
| Connector Gender | Female |
| Connector Shape | Round |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Included | No |
| Grade Type | Regular |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Lock Ring Included | No |
| Material | Steel |
| Minimum Flow Rating | 18 |
| Minimum Pressure | 45.0 |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Quantity | 1 |
| Outlet Type | Hose Connection |
| Pump Type | Electric |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Universal Or Specific Fit | Specific |
| Voltage | 12V |
| Wire Gauge Measurement | 20 |
| Wire Harness Included | No |
| Wire Quantity | 4 |
| Wiring Harness Length | 300.0 |
| Fits | Ford and Mazda · 8 vehicles |
OE fit, form, and function. Built for a specific fit with problem-solving features.
Steel construction. Durable material for dependable fuel system service.
Fuel sending unit included. Adds an important component to simplify replacement.
Cross-references Airtex Fuel Pumps E2144S, Delphi HP10142 and GMB 525-2010 for the same application. See all 21.
Carter P74611S Fuel Pump Hanger Assembly
The Carter P74611S fuel pump hanger assembly is a specific-fit, in-tank electric fuel delivery component for select Ford Explorer and Mazda Navajo applications. It combines a steel hanger with an included fuel sending unit and strainer to support accurate fuel delivery and fuel level reporting.
Built for 12V negative-ground systems, this assembly is engineered for OE fit, form, and function in the 1991-1994 Ford Explorer and 1991-1994 Mazda Navajo.
Key Features
- Steel fuel pump hanger assembly for in-tank installation
- Includes fuel sending unit and external strainer
- Electric pump design for 12V negative-ground systems
- Specific fit for select Ford Explorer and Mazda Navajo models
- Round female connector with 4-pin terminal layout
- 300.0 wiring harness length with 20-gauge wire
- Hose connection outlet with one outlet port
- Minimum pressure rating of 45.0 and minimum flow rating of 18
Detailed Description
Carter P74611S is a fuel pump hanger assembly designed for direct replacement in select 1991-1994 Ford Explorer and 1991-1994 Mazda Navajo vehicles. The steel construction, integrated sending unit, and included strainer support fuel system service where the original hanger assembly has worn, corroded, or lost proper electrical or fuel delivery performance. This part cross-references Airtex Fuel Pumps E2144S for the same application.
As a specific-fit assembly, the P74611S is built around the vehicle’s original in-tank fuel system layout and uses a round female connector with four terminals, a hose connection outlet, and a 12V electric pump configuration. The Carter fuel systems program focuses on OE-style fit and vehicle coverage, making this a practical replacement for Explorer and Navajo fuel system repairs.
Common Repair Applications
- Hard starting caused by weak or inconsistent fuel delivery
- Fuel gauge inaccuracies from a failing sending unit
- Fuel starvation from a worn in-tank pump hanger assembly
- Corrosion or damage to the original steel hanger
- Poor pump operation in 1991-1994 Ford Explorer and Mazda Navajo fuel systems
Installation Notes and Tips
Verify vehicle year, make, model, and fuel system connector style before installation. Because this assembly is specific fit, confirm the in-tank configuration, terminal layout, and hose connection match the original unit on the vehicle. Replace any worn tank-side components during service and inspect the fuel tank for contamination before installing the new assembly.
Quality Assurance
Carter designs its fuel system components around OE fit, form, and function, with coverage aimed at direct replacement applications. The P74611S follows that approach for select Ford Explorer and Mazda Navajo fuel system service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1994 | Ford | Explorer | 4.0L | V6 | N/A | — |
| 1994 | Mazda | Navajo | 4.0L | V6 | N/A | — |
| 1993 | Ford | Explorer | 4.0L | V6 | N/A | — |
| 1993 | Mazda | Navajo | 4.0L | V6 | N/A | — |
| 1992 | Ford | Explorer | 4.0L | V6 | N/A | — |
| 1992 | Mazda | Navajo | 4.0L | V6 | N/A | — |
| 1991 | Ford | Explorer | 4.0L | V6 | N/A | — |
| 1991 | Mazda | Navajo | 4.0L | V6 | N/A | — |
