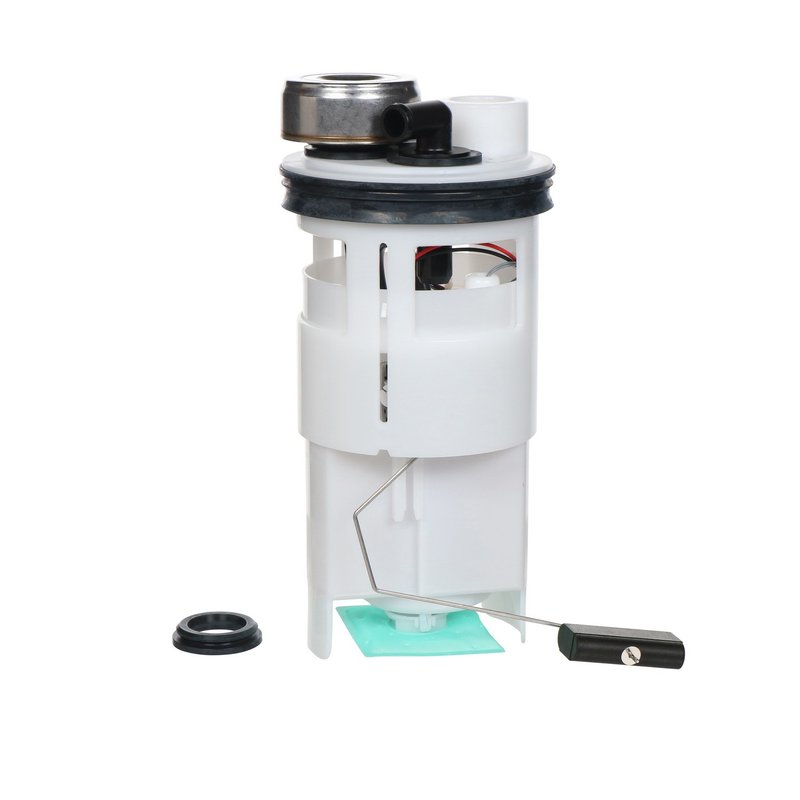

Carter P74658M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge B-Series Trucks

The Carter P74658M fuel pump module assembly is designed specifically for Dodge B150, B250, B350, B1500, B2500, and B3500 models. This electric fuel pump module ensures consistent fuel delivery with integrated components tailored to your vehicle's requirements.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical connection
• Pin-type terminals with 5 male terminals for secure wiring
• Oval connector shape for precise fitment
• External strainer inlet type with hose connection outlet
• Gasket or seal included to prevent leaks
• Electric pump operating at 12 volts with minimum flow rating of 25 and minimum pressure of 40.0 psi
• Specific fitment for Dodge B-Series trucks ensuring compatibility

Detailed Product Description

The Carter P74658M fuel pump module assembly is engineered to meet the fuel delivery demands of Dodge B150, B250, B350, B1500, B2500, and B3500 trucks. This module includes a fuel sending unit for accurate fuel level monitoring and an external strainer inlet to protect the pump from debris. The electric pump operates at 12 volts, providing a minimum flow rating of 25 and a minimum pressure of 40.0 psi, which supports consistent engine performance. The assembly features pin-type terminals with five male connections and an oval-shaped connector to ensure a secure and precise electrical fit. A gasket or seal is included to maintain a leak-free installation. Note that mounting hardware, regulator, lock ring, wire harness, and fuel filter are not included with this module.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Dodge B-Series trucks
• Resolves inaccurate fuel level readings due to faulty sending units
• Eliminates fuel delivery interruptions caused by clogged strainers
• Addresses low fuel pressure issues affecting engine performance
• Prevents fuel leaks with included gasket or seal

Installation Notes and Tips

Installation of the Carter P74658M fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is properly grounded as this module is designed for negative ground systems. Verify the oval connector and pin-type terminals match your vehicle’s wiring harness. Since mounting hardware and wire harness are not included, retain original components or source compatible parts. Use the included gasket or seal to prevent leaks during reassembly. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

Carter fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The P74658M is tested for electrical performance and durability to ensure reliable operation in Dodge B-Series trucks. While specific warranty details are not provided here, Carter typically offers limited warranties on their fuel delivery components. Consult product documentation or authorized sources for warranty terms.
