Carter P74706M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chrysler, Dodge, and Plymouth

The Carter P74706M fuel pump module assembly is designed specifically for Chrysler, Dodge, and Plymouth vehicles including Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager models. This electric fuel pump module ensures consistent fuel delivery and accurate fuel level readings for your vehicle's fuel system.

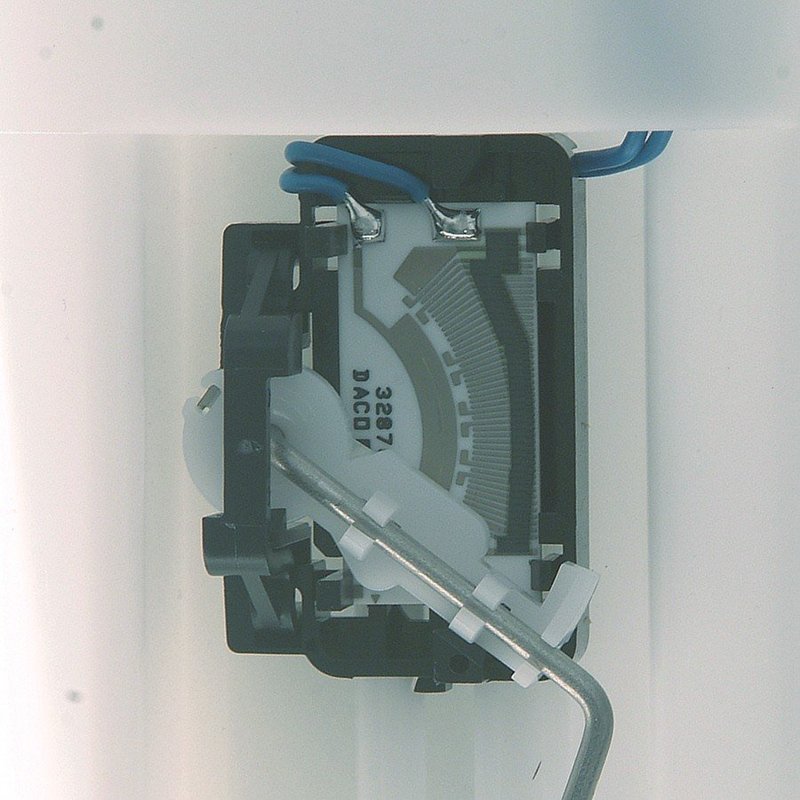

• Fuel sending unit included for precise fuel level monitoring
• Negative ground compatible for proper electrical connection
• Grey rectangular female connector with three male blade terminals
• Internal strainer inlet with quick connect outlet for efficient fuel flow
• Pom housing material with gasket/seal included for secure installation
• Top mount diameter of 112.5 mm and height of 190 mm for specific fitment
• Regular grade type fuel pump with a minimum flow rating of 29

Detailed Product Features and Specifications

The Carter P74706M fuel pump module assembly is engineered with a durable Pom housing and includes a fuel sending unit to provide accurate fuel level data to your vehicle’s gauge. It features a negative ground design and a grey rectangular female connector with three male blade terminals, ensuring compatibility with the original wiring harness of Chrysler, Dodge, and Plymouth Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager models. The module’s internal strainer inlet and quick connect outlet optimize fuel filtration and flow, while the included gasket or seal helps maintain a leak-free installation. This specific fit fuel pump module has a top mount diameter of 112.5 mm and a height of 190 mm, matching OEM dimensions for a direct replacement.

Compatible Vehicles and Common Applications

• Chrysler Caravan and Town & Country fuel delivery system maintenance
• Dodge Grand Caravan and Grand Voyager fuel pump replacement
• Plymouth Voyager fuel system repair and fuel level sensor upgrade
• Resolving fuel delivery issues such as inconsistent fuel pressure or engine stalling
• Replacing faulty fuel sending units causing inaccurate fuel gauge readings

Installation Notes and Tips

Installation of the Carter P74706M fuel pump module assembly requires removal of the fuel tank to access the existing pump module. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The included gasket or seal should be properly seated to avoid fuel leaks. Since mounting hardware and wire harness are not included, reuse the original components or source compatible parts. Verify the connector color and terminal type match your vehicle’s wiring to ensure proper electrical connections. This module is designed for specific fitment, so confirm compatibility with your Chrysler, Dodge, or Plymouth model before installation.

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet or exceed OEM specifications for durability and performance. The P74706M part number undergoes rigorous quality control to ensure reliable operation within the fuel delivery system. While mounting hardware and regulator are not included, the module’s design supports straightforward integration with existing vehicle components. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
