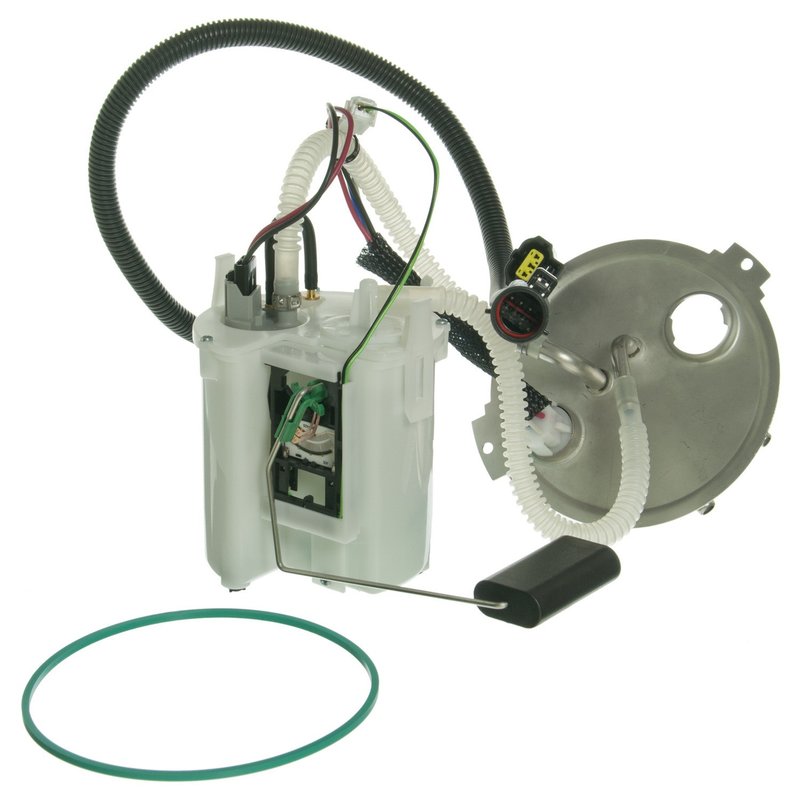

Carter P74749M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Windstar

The Carter P74749M fuel pump module assembly is designed specifically for Ford Windstar models, providing a precise fit and dependable fuel delivery. This electric fuel pump module includes essential components to maintain optimal engine performance and fuel efficiency.

Key Features of Carter P74749M Fuel Pump Module

• Fuel sending unit included for accurate fuel level readings
• Negative ground electrical system compatibility
• Pin-type terminal and round connector shape for secure connections
• External strainer inlet type with hose connection outlet
• Includes gasket or seal and wire harness for installation
• Electric pump type operating at 12 volts with a minimum flow rating of 20
• Minimum pressure rating of 45.0 psi ensures consistent fuel delivery
• Specific fitment designed exclusively for Ford Windstar vehicles

Detailed Description of Carter Fuel Pump Module Assembly

The Carter P74749M fuel pump module assembly is engineered to meet the exact specifications of Ford Windstar models, ensuring compatibility and reliable operation. This module features an electric pump that operates at 12 volts, delivering a minimum flow rating of 20 and maintaining a minimum pressure of 45 psi. The assembly includes a fuel sending unit for precise fuel level monitoring and a wire harness to facilitate straightforward electrical connections. The external strainer inlet and hose connection outlet are designed to optimize fuel flow while protecting the pump from contaminants. Although the regulator and fuel filter are not included, the module comes with a gasket or seal to ensure a proper fit and prevent leaks during installation.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure in Ford Windstar vehicles
• Inaccurate fuel level readings due to faulty sending units
• Low fuel pressure causing engine performance problems
• Electrical connection issues related to terminal or connector types
• Fuel pump noise or overheating from worn-out components

Installation Notes and Tips

Installation of the Carter P74749M fuel pump module assembly requires removal of the fuel tank or access through the service panel, depending on the Ford Windstar model year. Ensure the vehicle’s battery is disconnected before beginning installation to prevent electrical hazards. The included gasket or seal must be properly seated to avoid fuel leaks. Since mounting hardware and lock ring are not included, reuse the original components or source compatible parts. Verify that the pin-type terminals and round connector shape align correctly with the vehicle’s wiring harness for a secure connection.

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The P74749M part number undergoes rigorous quality control to ensure durability and reliable performance in Ford Windstar vehicles. While specific warranty details may vary, Carter typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
