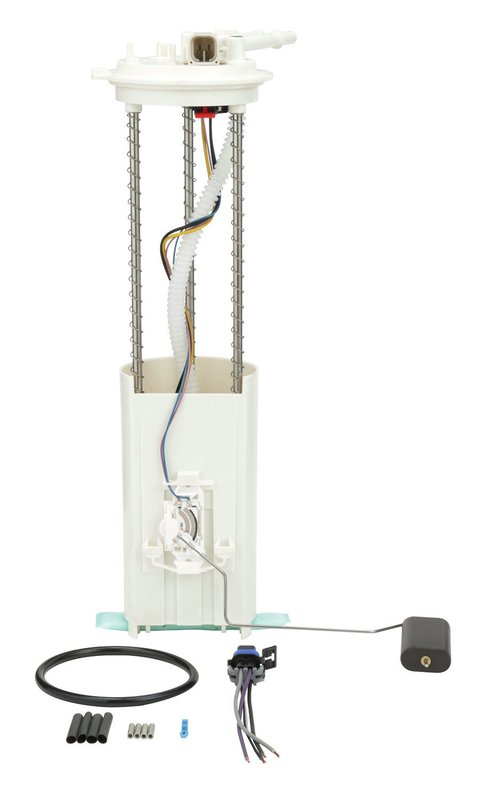

Carter P74768M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Trucks

The Carter P74768M fuel pump module assembly is designed specifically for Chevrolet and GMC heavy-duty trucks, including C2500, C3500, K2500, and K3500 models. This fuel pump module ensures consistent fuel delivery and integrates essential components for optimal engine performance.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical connection
• 445 mm wiring harness length with white oval female connector
• Internal strainer inlet type with hose connection outlet
• Includes gasket or seal and wire harness for installation
• Spade terminal type with four terminals and four wires
• Pom housing material with a top mount diameter of 104 mm and height of 337 mm
• Designed for specific fitment on Chevrolet and GMC C2500, C3500, K2500, and K3500 trucks

Detailed Product Description

The Carter P74768M fuel pump module assembly is engineered to meet the fuel delivery requirements of Chevrolet and GMC heavy-duty trucks. Featuring a fuel sending unit, this module provides accurate fuel level data to the vehicle’s gauge. The assembly includes an internal strainer inlet and a single hose connection outlet with an outside diameter of 9.49 mm, ensuring clean fuel flow. The wiring harness, measuring 445 mm in length, terminates in a white oval female connector with spade terminals, facilitating straightforward electrical connections. Constructed with durable Pom housing material, the module is designed for a specific fit, matching the mounting dimensions of the original equipment with a top mount diameter of 104 mm and a height of 337 mm. The included gasket or seal helps maintain a secure and leak-free installation.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Chevrolet and GMC C2500, C3500, K2500, and K3500 trucks
• Resolves inaccurate fuel gauge readings due to faulty fuel sending units
• Addresses fuel delivery interruptions caused by clogged or damaged internal strainers
• Eliminates electrical connection problems with properly matched wiring harness and connectors
• Prevents fuel leaks with included gasket or seal for secure mounting

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to avoid electrical hazards
• Verify compatibility with Chevrolet and GMC C2500, C3500, K2500, and K3500 models prior to installation
• Use the included gasket or seal to prevent fuel leaks during mounting
• Check wiring harness connections for secure fit with the white oval female connector and spade terminals
• Do not reuse mounting hardware; new hardware is not included and should be sourced separately if needed

Quality Assurance and Warranty

The Carter P74768M fuel pump module assembly is manufactured to meet OEM specifications for fit and function. It includes a fuel sending unit and internal strainer to maintain fuel system integrity. While mounting hardware and regulator are not included, the assembly is designed for direct replacement on specified Chevrolet and GMC truck models. Warranty coverage details should be confirmed with the product documentation or manufacturer.
