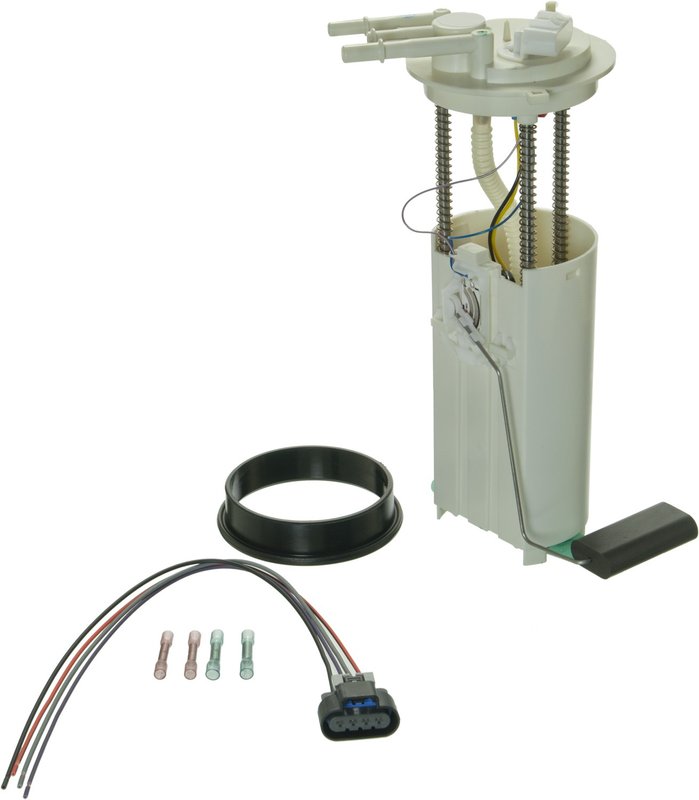

Carter P74770M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Cadillac, Chevrolet, and GMC

The Carter P74770M fuel pump module assembly is designed specifically for select Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon models. This fuel pump module ensures consistent fuel delivery with integrated components tailored to your vehicle's requirements.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical grounding
• White oval connector with four spade terminals for secure wiring
• Internal strainer inlet and quick connect outlet for efficient fuel flow
• Pom housing material with included gasket or seal for durability and leak prevention
• Wire harness included with 445 mm length for easy installation
• Specific fitment for Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon

Detailed Product Features and Specifications

The Carter P74770M fuel pump module assembly features a 9.49 mm outlet outside diameter and a top mount diameter of 94.0 mm, designed to fit precisely in the fuel tank of compatible vehicles. The module includes a fuel sending unit to provide accurate fuel level data to the dashboard. It uses a negative ground electrical system and comes with a white oval-shaped female connector housing four male spade terminals, ensuring reliable electrical connections. The internal strainer inlet and quick connect outlet support efficient fuel filtration and delivery, while the included gasket or seal helps maintain a secure, leak-free installation. The housing is made from durable POM material, and the assembly includes a wire harness measuring 445 mm in length to facilitate proper wiring integration.

Compatible Vehicles and Applications

• Cadillac Escalade fuel pump replacement
• Chevrolet Tahoe fuel pump module upgrade
• GMC Yukon fuel delivery system repair
• Replacement for fuel sending unit failures
• Addressing fuel pump electrical connection issues

Installation Notes and Tips

When installing the Carter P74770M fuel pump module assembly, ensure the vehicle's battery is disconnected to prevent electrical hazards. The included wire harness and connector are designed for a direct fit, but verify connector compatibility before installation. The gasket or seal must be properly seated to avoid fuel leaks. This module does not include mounting hardware or a regulator, so retain original components if necessary. Follow manufacturer torque specifications for the top mount diameter of 94.0 mm to secure the assembly correctly.

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The P74770M part number undergoes rigorous quality control to ensure reliable performance in Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon vehicles. This product includes a warranty covering defects in materials and workmanship, providing confidence in its durability and operational integrity.
