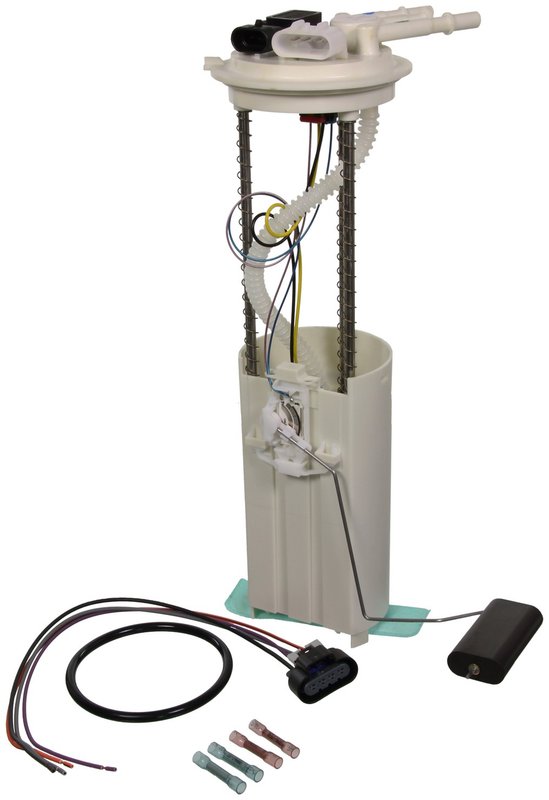

Carter P74773M Fuel Pump Module Assembly
| Brand | Carter P74773M |
|---|---|
| Connector Color | White |
| Connector Gender | Female |
| Connector Shape | Oval |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | Yes |
| Gasket Or Seal Included | Yes |
| Grade Type | Regular |
| Height | 382 |
| Housing Material | POM |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Lock Ring Included | No |
| Minimum Flow Rating | 20 |
| Minimum Pressure | 60.0 |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Outside Diameter | 9.5 |
| Outlet Quantity | 1 |
| Outlet Type | Hose Connection |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 40.0 |
| Resistance Ohms Full | 250.0 |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Terminal Type | Spade |
| Top Mount Diameter | 104.0 |
| Universal Or Specific Fit | Specific |
| Voltage | 12V |
| Wire Harness Included | Yes |
| Wire Quantity | 4 |
| Wiring Harness Length | 445.0 |
| Fits | Chevrolet and GMC · 26 vehicles |
OE fit, form, and function. Specific-fit fuel pump module assembly for straightforward replacement.
Electric pump. 12V design delivers dependable fuel delivery performance.
Complete module. Includes sending unit, strainer, gasket, and wire harness.
Cross-references Airtex Fuel Pumps E3963M, Bosch 67382 and Delphi FG0088 for the same application. See all 34.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Carter P74773M Fuel Pump Module Assembly
The Carter P74773M fuel pump module assembly is a specific-fit replacement built for OE-style fuel delivery and sender integration. It includes the fuel sending unit, gasket or seal, strainer, wire harness, and fuel tank pressure sensor for service on select Chevrolet and GMC trucks and SUVs.
Fits 1998-1999 Chevrolet C1500 Suburban, N/A; Fits 1998-1999 Chevrolet C2500 Suburban, N/A; Fits 1998-1999 Chevrolet K1500 Suburban, N/A; Fits 1998-1999 Chevrolet K2500 Suburban, N/A; Fits 1998-1999 Chevrolet Tahoe, N/A; Fits 1998-1999 GMC C1500 Suburban, N/A; Fits 1998-1999 GMC C2500 Suburban, N/A; Fits 1998-1999 GMC K1500 Suburban, N/A; Fits 1998-1999 GMC K2500 Suburban, N/A.
Key Features
- Specific-fit fuel pump module assembly for direct replacement service
- Electric 12V pump with minimum pressure rating of 60.0
- Fuel sending unit included for fuel level reporting
- Fuel tank pressure sensor included
- Strainer and gasket or seal included
- Wire harness included with 4-wire, female oval connector
- Negative ground design with blade and spade terminals
- POM housing material with hose connection outlet
- OE-style coverage for Chevrolet Tahoe and GMC Suburban applications
Detailed Description
Carter P74773M is a fuel pump module assembly engineered for select 1998-1999 Chevrolet Tahoe, Chevrolet C1500 Suburban, Chevrolet C2500 Suburban, Chevrolet K1500 Suburban, Chevrolet K2500 Suburban, and matching GMC Suburban applications. It is built as a specific-fit module with OE-style fit, form, and function, and it includes the sender, strainer, seal, harness, and pressure sensor needed for a complete fuel delivery service. The module uses a 12V electric pump, a hose connection outlet, and a POM housing for dependable in-tank operation.
This part cross-references Airtex Fuel Pumps E3963M and Bosch 67382 for the same application. The Carter P74773M is a practical replacement choice when servicing fuel delivery and tank-level signal issues on Chevrolet Tahoe and GMC Suburban platforms.
Common Problems This Part Can Address
- Hard starting caused by weak or failing in-tank fuel pressure
- Fuel gauge inaccuracies from a worn sending unit
- Fuel delivery interruptions from a restricted or failing pump module
- Check engine concerns related to tank pressure sensor faults
- Fuel odor or seepage at the module seal area
Installation Notes and Tips
Verify the module code on the original unit and confirm the vehicle’s emissions and tank configuration before installation. This assembly is listed for 1998-1999 Chevrolet and GMC applications with notes including tank seal, connectors, wire harness, and turbine pump technology on select models. Inspect the tank, electrical connector, and fuel lines before installing the new module, and replace any damaged sealing surfaces to help ensure proper fitment.
Quality Assurance
Carter positions this fuel systems program around OE fit, form, and function with broad vehicle coverage and problem-solving design features. Part number P74773M is built to meet the needs of specific-fit fuel pump module replacement on the listed Chevrolet and GMC applications.
| Year | Make | Model | # Doors | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1999 | Chevrolet | C1500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with Code # GFL, GFN on Module |
| 1999 | Chevrolet | C2500 Suburban | — | 7.4L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1999 | Chevrolet | C2500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1999 | Chevrolet | K1500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with Code # GFL, GFN on Module |
| 1999 | Chevrolet | K2500 Suburban | — | 7.4L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1999 | Chevrolet | K2500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1999 | Chevrolet | Tahoe | 2 Door | 5.7L | V8 | N/A | — |
| 1999 | GMC | C1500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with Code # GFL, GFN on Module |
| 1999 | GMC | C2500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1999 | GMC | C2500 Suburban | — | 7.4L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1999 | GMC | K1500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with Code # GFL, GFN on Module |
| 1999 | GMC | K2500 Suburban | — | 7.4L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1999 | GMC | K2500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1998 | Chevrolet | C1500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with Code # GFL, GFN on Module |
| 1998 | Chevrolet | C2500 Suburban | — | 7.4L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1998 | Chevrolet | C2500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1998 | Chevrolet | K1500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with Code # GFL, GFN on Module |
| 1998 | Chevrolet | K2500 Suburban | — | 7.4L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1998 | Chevrolet | K2500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1998 | Chevrolet | Tahoe | 2 Door | 5.7L | V8 | N/A | — |
| 1998 | GMC | C1500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with Code # GFL, GFN on Module |
| 1998 | GMC | C2500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1998 | GMC | C2500 Suburban | — | 7.4L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1998 | GMC | K1500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with Code # GFL, GFN on Module |
| 1998 | GMC | K2500 Suburban | — | 7.4L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
| 1998 | GMC | K2500 Suburban | — | 5.7L | V8 | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with California Emissions System; with Code # GFL, GFN on Module |
