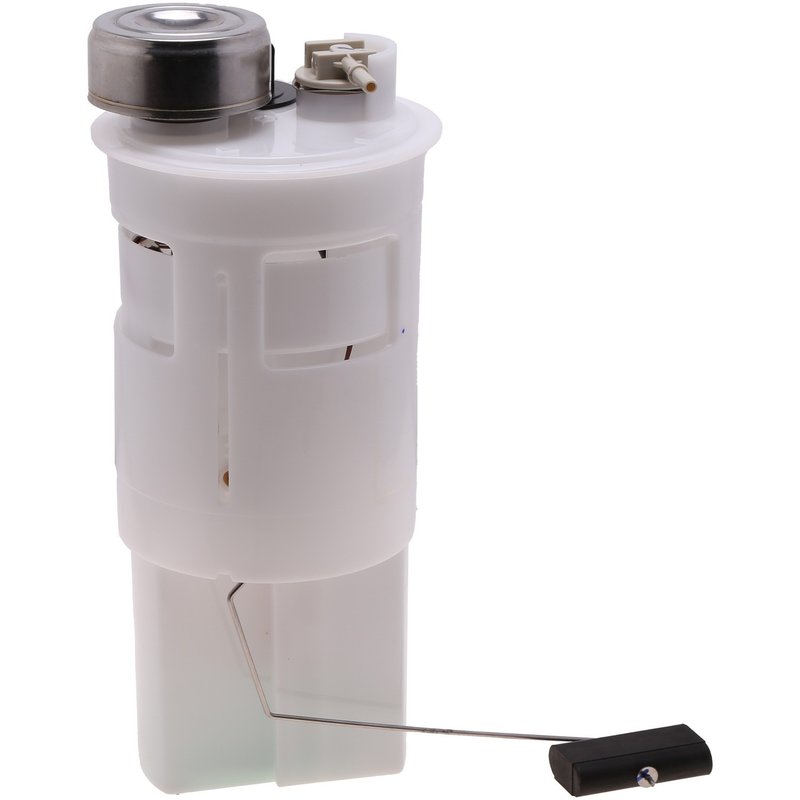

Carter P74801M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Ram Trucks

The Carter P74801M fuel pump module assembly is designed specifically for Dodge Ram 1500, Ram 2500, and Ram 3500 models. This electric fuel pump module ensures consistent fuel delivery with integrated components tailored to your vehicle's requirements.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical connection
• External strainer inlet type for effective fuel filtration
• Quick connect outlet for secure fuel line attachment
• Rectangle-shaped connector with male spade terminals
• Gasket or seal included to prevent leaks
• Minimum flow rating between 32-33 GPH and minimum pressure of 50 PSI
• Designed for specific fitment on Dodge Ram 1500, 2500, and 3500
• Operates on standard 12-volt electrical systems

Detailed Features and Specifications

The Carter P74801M fuel pump module assembly is engineered to meet the precise fuel delivery needs of Dodge Ram trucks. It includes a fuel sending unit for accurate fuel gauge readings and an external strainer inlet to protect the pump from debris. The module uses a quick connect outlet fitting with a 3/8-inch thread size, ensuring a secure and leak-free connection to the fuel line. The rectangular connector with male spade terminals supports reliable electrical connections, compatible with negative ground systems. Although mounting hardware and lock ring are not included, the assembly comes with a gasket or seal to maintain a tight fit and prevent fuel leaks. This electric pump operates at 12 volts and provides a minimum flow rating of 32 to 33 gallons per hour with a minimum pressure of 50 PSI, suitable for regular grade fuel.

Compatible Vehicles and Applications

• Replacement fuel pump module for Dodge Ram 1500 models
• Fuel delivery solution for Dodge Ram 2500 trucks
• Fuel pump module assembly for Dodge Ram 3500 vehicles
• Ideal for addressing fuel delivery issues such as inconsistent fuel pressure
• Resolves fuel gauge inaccuracies due to faulty sending units

Installation Notes and Tips

Installation of the Carter P74801M requires removal of the fuel tank to access the existing fuel pump module. Ensure the vehicle’s battery is disconnected before beginning work to avoid electrical hazards. Since mounting hardware and wire harness are not included, retain original components or source compatible parts. Verify the gasket or seal is properly seated to prevent leaks. The quick connect outlet and spade terminals facilitate straightforward electrical and fuel line connections. Professional installation is recommended for optimal performance and safety.

Quality Assurance and Warranty

Carter fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The P74801M is built with durable materials to withstand the demands of daily driving and fuel system pressures. While specific warranty details are not provided here, Carter typically offers limited warranties on their fuel delivery components. Consult product documentation or authorized sources for warranty coverage information.
