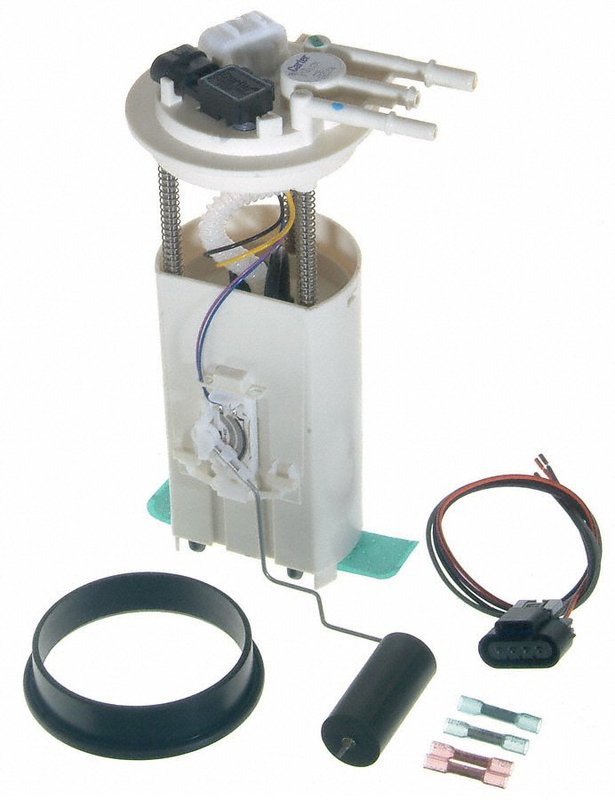

Carter P74832M Fuel Pump Module Assembly
| Brand | Carter P74832M |
|---|---|
| Connector Color | White |
| Connector Gender | Female |
| Connector Shape | Oval |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | Yes |
| Gasket Or Seal Included | Yes |
| Grade Type | Regular |
| Height | 234 |
| Housing Material | POM |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Lock Ring Included | No |
| Minimum Flow Rating | 25 |
| Minimum Pressure | 60.0 |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 3/8 |
| Outlet Outside Diameter | 9.49 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 40.0 |
| Resistance Ohms Full | 250.0 |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Spade |
| Top Mount Diameter | 94.0 |
| Universal Or Specific Fit | Specific |
| Voltage | 12V |
| Wire Harness Included | Yes |
| Fits | Cadillac, Chevrolet, and GMC · 23 vehicles |
OE fit, form, and function. Specific-fit fuel pump module assembly for straightforward replacement.
Fuel sending unit included. Built with a gasket, strainer, and wire harness for a complete install.
Electric pump design. 12V operation with quick-connect outlet and 60.0 minimum pressure.
Cross-references Airtex Fuel Pumps E3508M, Autobest F2519A and Bosch 67307 for the same application. See all 26.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Carter P74832M Fuel Pump Module Assembly
The Carter P74832M fuel pump module assembly delivers OE-style fit, form, and function for select Cadillac, Chevrolet, and GMC applications. It includes the fuel sending unit, gasket or seal, strainer, wire harness, and fuel tank pressure sensor for a complete in-tank fuel delivery service.
Compatible with 2000-2003 Chevrolet Tahoe, 2000-2003 GMC Yukon, and 2002-2003 Cadillac Escalade, this electric 12V module is built for specific-fit replacement service. The Carter P74832M is a direct-fit option for vehicles that require a quick-connect outlet, female connector, and integrated tank pressure sensor.
Key Features
- Fuel pump module assembly with electric 12V pump
- Specific fit for select Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon models
- Fuel sending unit included for accurate fuel level reporting
- Gasket or seal included for tank service
- Strainer included with external strainer design
- Wire harness included for vehicle-specific connection
- Fuel tank pressure sensor included
- Quick-connect outlet with 3/8 in. outlet fitting thread size
- Negative ground design with 4-terminal configuration
- White connector with oval shape and female connector gender
Detailed Description
Carter builds the P74832M as a premium OE-style fuel pump module assembly for in-tank fuel system replacement. The housing uses POM material, and the module is configured with a spade terminal type, male terminal gender, and a single outlet arrangement. It is a regular-grade replacement part with a minimum pressure rating of 60.0 and a minimum flow rating of 25, supporting consistent fuel delivery in the applications listed below. This part cross-references Bosch 67307 and Delphi FG0324 for the same application.
Fits 2000 Chevrolet Tahoe, N/A; Fits 2001-2003 Chevrolet Tahoe, N/A; Fits 2000 GMC Yukon, N/A; Fits 2001-2003 GMC Yukon, N/A; Fits 2002-2003 Cadillac Escalade, N/A. Notes for listed applications include tank seal, connectors, and wire harness, with tag code requirements shown in the fitment data.
Common Problems This Part Can Address
- Hard starting caused by weak or failing in-tank fuel pump performance
- Inaccurate fuel level readings from a worn sending unit
- Fuel delivery interruptions from a damaged module assembly
- Fuel tank pressure sensor faults in supported applications
- Connector or harness issues during fuel system service
Installation Notes and Tips
Confirm the vehicle tag code and model-year application before installation, since the listed fitment includes specific notes for TCB and TDB configurations. Inspect the tank opening, electrical connectors, and fuel lines before installing the module. Because the gasket or seal and wire harness are included, verify all mating surfaces are clean and undamaged before reassembly.
Quality Assurance
Carter positions this fuel systems program around OE fit, form, and function with broad vehicle coverage and problem-solving features. The P74832M is built as a specific-fit replacement for the listed Cadillac, Chevrolet, and GMC applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2003 | Cadillac | Escalade | 5.3L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2003 | Cadillac | Escalade | 6.0L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2003 | Chevrolet | Tahoe | 4.8L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2003 | Chevrolet | Tahoe | 5.3L | V8 | GAS | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2003 | GMC | Yukon | 4.8L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2003 | GMC | Yukon | 6.0L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2003 | GMC | Yukon | 5.3L | V8 | GAS | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2002 | Cadillac | Escalade | 5.3L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2002 | Cadillac | Escalade | 6.0L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2002 | Chevrolet | Tahoe | 4.8L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2002 | Chevrolet | Tahoe | 5.3L | V8 | GAS | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2002 | GMC | Yukon | 4.8L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2002 | GMC | Yukon | 6.0L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2002 | GMC | Yukon | 5.3L | V8 | GAS | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2001 | Chevrolet | Tahoe | 5.3L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2001 | Chevrolet | Tahoe | 4.8L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2001 | GMC | Yukon | 4.8L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2001 | GMC | Yukon | 6.0L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2001 | GMC | Yukon | 5.3L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; with Tag Code Marked TCB |
| 2000 | Chevrolet | Tahoe | 4.8L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; Except Export; with Tag Code Marked TDB |
| 2000 | Chevrolet | Tahoe | 5.3L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; Except Export; with Tag Code Marked TDB |
| 2000 | GMC | Yukon | 5.3L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; Except Export; with Tag Code Marked TDB |
| 2000 | GMC | Yukon | 4.8L | V8 | — | N/A | Includes Tank Seal, Connectors, and Wire Harness; Except Export; with Tag Code Marked TDB |
