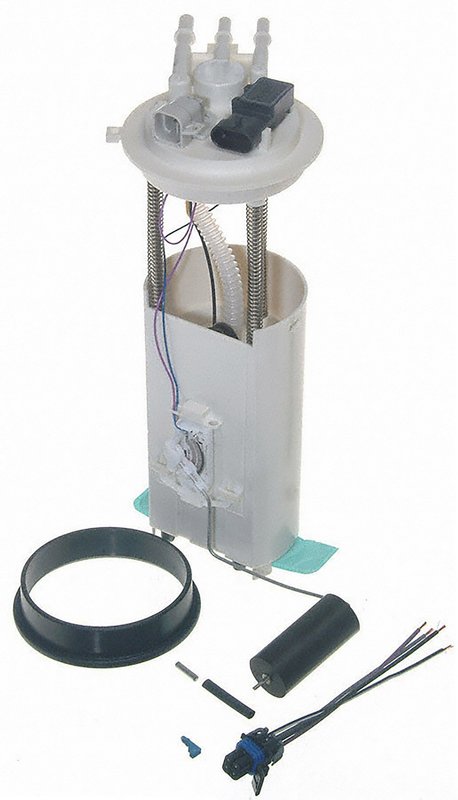

Carter P74834M Fuel Pump Module Assembly

Brand Carter P74834M
Connector Color White
Connector Gender Female
Connector Shape Oval
Fuel Filter Included No
Fuel Sending Unit Included Yes
Fuel Tank Pressure Sensor Included No
Gasket Or Seal Included Yes
Grade Type Regular
Height 282
Housing Material POM
Inlet Type Strainer
Internal Or External Strainer External
Lock Ring Included No
Minimum Flow Rating 20
Minimum Pressure 60.0
Mounting Hardware Included No
Negative Ground Yes
Outlet Fitting Thread Size 3/8
Outlet Outside Diameter 9.49
Outlet Quantity 1
Outlet Type Quick Connect
Pump Type Electric
Regulator Included No
Resistance Ohms Empty 40.0
Resistance Ohms Full 250.0
Strainer Included Yes
Terminal Gender Male
Terminal Quantity 4
Terminal Type Spade
Top Mount Diameter 94.0
Universal Or Specific Fit Specific
Voltage 12V
Wire Harness Included Yes
Wire Quantity 4
Wiring Harness Length 445.0
Fits Chevrolet, GMC, and Oldsmobile · 19 vehicles

OE fit, form, function. Built for a specific fit with straightforward installation.

Fuel pump module assembly. Combines the pump, sending unit, and strainer in one unit.

Electric 12V pump. Delivers consistent fuel delivery with a quick-connect outlet.

Cross-references Airtex Fuel Pumps E3992M, Delphi FG0052 and Delphi FG0287 for the same application. See all 34.

$145.37Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $145.37
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Carter P74834M Fuel Pump Module Assembly

The Carter P74834M fuel pump module assembly is a specific-fit replacement built for select Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada applications. It combines OE-style fit, form, and function with a turbine pump design, a fuel sending unit, and a wire harness for a direct replacement approach.

Key Features

  • Specific-fit fuel pump module assembly for select 1998-2005 GM SUVs
  • Electric 12V pump with minimum pressure rated at 60.0
  • Fuel sending unit included for accurate fuel level signal output
  • External strainer included with gasket or seal included
  • Quick-connect outlet with one outlet and 3/8 outlet fitting thread size
  • Wire harness included; 4-wire, female oval connector with white connector color
  • Negative ground design with male spade terminals
  • POM housing material for the module assembly

Detailed Description

The Carter P74834M is a fuel pump module assembly engineered for direct replacement in select Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada models. It is built as a specific-fit unit and includes the fuel sending unit, external strainer, gasket or seal, and wire harness to match the original system layout. The module uses an electric 12V pump with a quick-connect outlet and a 3/8 outlet fitting thread size, supporting OE-style fuel delivery and tank-level reporting.

This part cross-references Airtex Fuel Pumps E3992M and Delphi FG0052 for the same application. For shoppers searching by vehicle, this is a fitment-based replacement for 1998-2005 Chevrolet Blazer, 1998-2004 GMC Jimmy, and 1998-2001 Oldsmobile Bravada fuel pump module assembly applications. The Carter P74834M is a practical choice when replacing a worn in-tank fuel pump module on these GM platforms.

Vehicle Fitment

  • Fits 1999-2005 Chevrolet Blazer, N/A. Fuel Pump Module Assembly with Turbine Pump Technology includes Tank Seal, Connectors, and Wire Harness.
  • Fits 1999-2004 GMC Jimmy, N/A. Fuel Pump Module Assembly includes Tank Seal, Connectors, Wire Harness, Turbine Pump Technology, Excluding Export markets.
  • Fits 1999-2001 Oldsmobile Bravada, N/A. Fuel Pump Module Assembly with Turbine Pump Technology includes Tank Seal, Connectors, and Wire Harness.
  • Fits 1998 Chevrolet Blazer, N/A. Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with 18 Gallon Tank.
  • Fits 1998 GMC Jimmy, N/A. Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with 18 Gallon Tank.
  • Fits 1998 Oldsmobile Bravada, N/A. Includes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with 18 Gallon Tank.

Common Replacement Reasons

  • Hard starting caused by weak or failing in-tank fuel delivery
  • Fuel gauge inaccuracies from a worn sending unit
  • Intermittent engine hesitation from inconsistent pump output
  • Fuel pressure loss in GM Blazer, Jimmy, or Bravada applications
  • Noise or drivability issues related to a deteriorated module assembly

Installation Notes and Tips

Confirm tank configuration, connector style, and model-year fitment before installation. This module uses a quick-connect outlet, a female oval connector, and a 4-wire harness layout, so matching the original electrical and fuel line connections is important. Replace the tank seal during service and verify fuel pressure and fuel level operation after installation.

Quality Assurance

Carter Fuel Systems focuses on OE fit, form, and function with broad vehicle coverage and problem-solving design features. The P74834M follows that approach with application-specific construction for select Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada fuel system service.

This part fits 19 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModel# DoorsLitersCylindersPositionNotes
2005ChevroletBlazer4 Door4.3LV6N/AFuel Pump Module Assembly with Turbine Pump Technology includes Tank Seal, Connectors, and Wire Harness.
2004ChevroletBlazer4 Door4.3LV6N/AFuel Pump Module Assembly with Turbine Pump Technology includes Tank Seal, Connectors, and Wire Harness.
2004GMCJimmy4 Door4.3LV6N/AFuel Pump Module Assembly includes Tank Seal, Connectors, Wire Harness, Turbine Pump Technology, Excluding Export markets
2003ChevroletBlazer4 Door4.3LV6N/AFuel Pump Module Assembly with Turbine Pump Technology includes Tank Seal, Connectors, and Wire Harness.
2003GMCJimmy4 Door4.3LV6N/AFuel Pump Module Assembly includes Tank Seal, Connectors, Wire Harness, Turbine Pump Technology, Excluding Export markets
2002ChevroletBlazer4 Door4.3LV6N/AFuel Pump Module Assembly with Turbine Pump Technology includes Tank Seal, Connectors, and Wire Harness.
2002GMCJimmy4 Door4.3LV6N/AFuel Pump Module Assembly includes Tank Seal, Connectors, Wire Harness, Turbine Pump Technology, Excluding Export markets
2001ChevroletBlazer4 Door4.3LV6N/AFuel Pump Module Assembly with Turbine Pump Technology includes Tank Seal, Connectors, and Wire Harness.
2001GMCJimmy4 Door4.3LV6N/AFuel Pump Module Assembly includes Tank Seal, Connectors, Wire Harness, Turbine Pump Technology, Excluding Export markets
2001OldsmobileBravada—4.3LV6N/AFuel Pump Module Assembly with Turbine Pump Technology includes Tank Seal, Connectors, and Wire Harness.
2000ChevroletBlazer4 Door4.3LV6N/AFuel Pump Module Assembly with Turbine Pump Technology includes Tank Seal, Connectors, and Wire Harness.
2000GMCJimmy4 Door4.3LV6N/AFuel Pump Module Assembly includes Tank Seal, Connectors, Wire Harness, Turbine Pump Technology, Excluding Export markets
2000OldsmobileBravada—4.3LV6N/AFuel Pump Module Assembly with Turbine Pump Technology includes Tank Seal, Connectors, and Wire Harness.
1999ChevroletBlazer4 Door4.3LV6N/AFuel Pump Module Assembly with Turbine Pump Technology includes Tank Seal, Connectors, and Wire Harness.
1999GMCJimmy4 Door4.3LV6N/AFuel Pump Module Assembly includes Tank Seal, Connectors, Wire Harness, Turbine Pump Technology, Excluding Export markets
1999OldsmobileBravada—4.3LV6N/AFuel Pump Module Assembly with Turbine Pump Technology includes Tank Seal, Connectors, and Wire Harness.
1998ChevroletBlazer4 Door4.3LV6N/AIncludes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with 18 Gallon Tank
1998GMCJimmy4 Door4.3LV6N/AIncludes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with 18 Gallon Tank
1998OldsmobileBravada—4.3LV6N/AIncludes Tank Seal, Connectors, and Wire Harness; with Turbine Pump Technology; with 18 Gallon Tank
Directly replaces or cross-references 34 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E3992MDelphi — FG0052Delphi — FG0287Dorman - OE Solutions — 2630305GMB — 530-2320Spectra Premium — SP6085MUS Motor Works — USEP3992M402-P3992M953-0021953-512515001923771129200541917722019179591193312691933127425176789253140672534481825347147A30026AFS0481SC0373MC8007C11111007TGFEP3992MM212887MPA30026MU1733MU1763P0026MRE0481STU429
