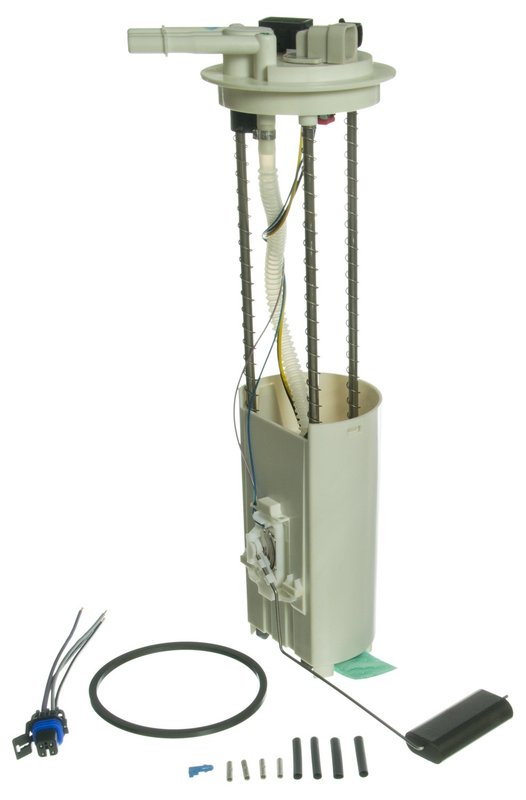

Carter P74846M Fuel Pump Module Assembly

Brand Carter P74846M
Connector Color White
Connector Gender Female
Connector Shape Oval
Fuel Filter Included No
Fuel Sending Unit Included Yes
Fuel Tank Pressure Sensor Included Yes
Gasket Or Seal Included Yes
Grade Type Regular
Height 332
Housing Material POM
Inlet Type Strainer
Internal Or External Strainer External
Lock Ring Included No
Minimum Flow Rating 20
Minimum Flow Rating 29
Minimum Pressure 60.0
Mounting Hardware Included No
Negative Ground Yes
Outlet Fitting Thread Size 3/8
Outlet Outside Diameter 9.49
Outlet Quantity 1
Outlet Type Hose Connection
Pump Type Electric
Regulator Included No
Resistance Ohms Empty 40.0
Resistance Ohms Full 250.0
Strainer Included Yes
Terminal Gender Male
Terminal Quantity 4
Terminal Type Spade
Top Mount Diameter 112.5
Universal Or Specific Fit Specific
Voltage 12V
Wire Harness Included Yes
Wire Quantity 4
Fits Chevrolet and GMC · 12 vehicles

OE fit, form, function. Built as a specific-fit fuel pump module assembly for straightforward replacement.

Complete module design. Includes the sending unit, strainer, gasket, harness, and tank pressure sensor.

Electric 12V pump. Delivers 60.0 minimum pressure with a hose connection outlet.

Cross-references Autobest F2517A, Bosch 67465 and Delphi FG0127 for the same application. See all 27.

$103.82Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $103.82
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Carter P74846M Fuel Pump Module Assembly

The Carter P74846M fuel pump module assembly is a specific-fit replacement for select Chevrolet Astro and GMC Safari applications. It combines the fuel pump, fuel sending unit, strainer, gasket or seal, wire harness, and fuel tank pressure sensor in one assembly for a direct-service fuel delivery repair.

  • Specific-fit fuel pump module assembly for 2000-2005 Chevrolet Astro and 2000-2005 GMC Safari
  • Electric 12V pump with negative ground design
  • Fuel sending unit included for fuel level signal replacement
  • Strainer included with external strainer design
  • Gasket or seal included for tank service
  • Fuel tank pressure sensor included
  • White female oval connector with 4-wire harness and 4 terminals
  • Outlet hose connection with 3/8 in. outlet fitting thread size
  • POM housing material with regular grade construction

Detailed Product Overview

Carter builds this module to match OE fit, form, and function for the listed Chevrolet Astro and GMC Safari applications. The assembly includes the fuel sending unit, wire harness, strainer, gasket or seal, and pressure sensor, helping restore fuel delivery and fuel level reporting from a single service part. It uses a 12V electric pump, a 60.0 minimum pressure rating, and a hose connection outlet for the fuel system layout used on these vehicles. This part cross-references Bosch 67465 for the same application.

Common Repair Uses

  • Hard starting caused by a weak or failing in-tank fuel pump
  • Inaccurate fuel gauge readings from a worn sending unit
  • Fuel delivery loss under load in Chevrolet Astro and GMC Safari vans
  • Fuel tank pressure sensor faults tied to module wear
  • Fuel system service after tank removal or module replacement

Installation Notes

Verify the tank opening, connector style, outlet connection, and pressure sensor configuration before installation. This module uses a specific fit design for 2000-2005 Chevrolet Astro and 2000-2005 GMC Safari models with robust fuel sender assembly applications. Replace the seal during service and confirm all electrical and fuel line connections are secure before returning the vehicle to operation.

Quality Assurance

Carter Fuel Systems focuses on OE-style fit, form, and function with broad vehicle coverage and problem-solving features for fuel delivery service. The P74846M is built as a direct replacement module for the listed applications.

This part fits 12 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2005ChevroletAstro4.3LV6N/Awith Robust Fuel Sender Assembly
2005GMCSafari4.3LV6N/Awith Robust Fuel Sender Assembly
2004ChevroletAstro4.3LV6N/Awith Robust Fuel Sender Assembly
2004GMCSafari4.3LV6N/Awith Robust Fuel Sender Assembly
2003ChevroletAstro4.3LV6N/Awith Robust Fuel Sender Assembly
2003GMCSafari4.3LV6N/Awith Robust Fuel Sender Assembly
2002ChevroletAstro4.3LV6N/Awith Robust Fuel Sender Assembly
2002GMCSafari4.3LV6N/Awith Robust Fuel Sender Assembly
2001ChevroletAstro4.3LV6N/Awith Robust Fuel Sender Assembly
2001GMCSafari4.3LV6N/Awith Robust Fuel Sender Assembly
2000ChevroletAstro4.3LV6N/Awith Robust Fuel Sender Assembly
2000GMCSafari4.3LV6N/Awith Robust Fuel Sender Assembly
Directly replaces or cross-references 27 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Autobest — F2517ABosch — 67465Delphi — FG0127Delphi — FG0288GMB — 530-2040Spectra Premium — SP61065MUS Motor Works — USEP3506M402-P3506M953-00291500052378742920058191800921933125188965573A30043AFS0755SB11111990TGC0172MC8012FEP3506MM312872MPA30043MU1380P0043MRE0755STU439
