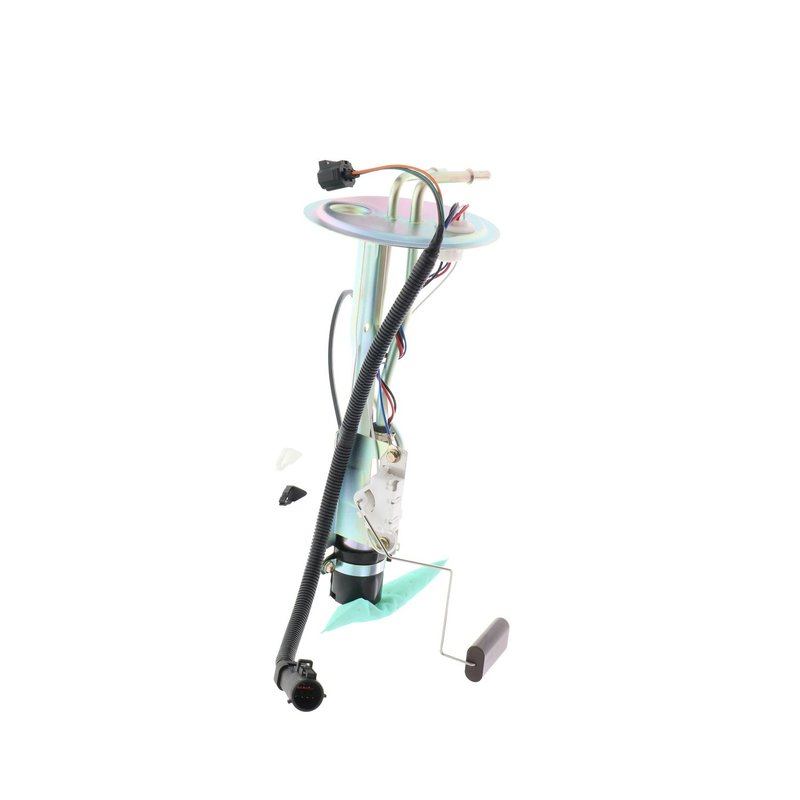

Carter P74874S Fuel Pump Hanger Assembly
| Brand | Carter P74874S |
|---|---|
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Included | Yes |
| Grade Type | Regular |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Lock Ring Included | No |
| Minimum Flow Rating | 28.9 |
| Minimum Pressure | 43.5 |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Strainer Included | Yes |
| Terminal Type | Pin |
| Universal Or Specific Fit | Specific |
| Voltage | 12V |
| Wire Harness Included | Yes |
| Fits | Ford and Lincoln · 12 vehicles |
OE fit, form, function. Built as a specific-fit fuel pump hanger assembly.
Complete assembly. Includes the fuel sending unit, gasket or seal, strainer, and wire harness.
Electric pump. 12V operation with quick-connect outlet and pin terminals.
Cross-references Delphi HP10074, Spectra Premium SP2297H and 150263 for the same application. See all 12.
Carter P74874S Fuel Pump Hanger Assembly
The Carter P74874S fuel pump hanger assembly is a specific-fit, in-tank fuel delivery component for select Ford Expedition and Lincoln Navigator applications. It combines the fuel pump, sending unit, strainer, gasket/seal, and wiring harness in one OE-style assembly for direct replacement service.
Key Features
- Specific-fit fuel pump hanger assembly for in-tank installation
- Electric 12V pump with negative ground and pin terminal type
- Fuel sending unit included for fuel level signal restoration
- Quick-connect outlet with one outlet connection
- Strainer included with external strainer design
- Gasket or seal included for tank sealing service
- Wire harness included for electrical connection support
- Minimum flow rating of 28.9 and minimum pressure of 43.5
Detailed Description
Built for OE fit, form, and function, the Carter P74874S is a fuel pump hanger assembly engineered for direct replacement in select 1999-2002 Ford Expedition and 1999-2002 Lincoln Navigator models. It is an in-tank electric fuel pump assembly with a fuel sending unit, quick-connect outlet, and included strainer to support proper fuel delivery and fuel level reporting. The Carter P74874S is a practical choice when replacing a worn hanger assembly, pump, or sender on these applications.
This part cross-references Delphi HP10074 for the same application.
Vehicle Fitment
- Fits 1999-2002 Ford Expedition, N/A
- Fits 1999-2002 Lincoln Navigator, N/A
Common Uses
- Restores fuel delivery when the original in-tank pump is weak or failing
- Addresses inaccurate fuel gauge readings caused by a worn sending unit
- Replaces a leaking or damaged hanger assembly seal at the tank
- Helps correct hard-start, stalling, or fuel starvation conditions
- Supports proper fuel pressure and flow in the fuel system
Installation Notes
Verify tank compatibility, connector style, and outlet routing before installation. Replace the tank seal during service, and inspect the fuel lines, electrical connector, and tank opening for wear or contamination. Because mounting hardware is not included, reuse or source any required vehicle-specific hardware separately.
Quality Assurance
Carter fuel system components are built around OE-style fitment and application coverage, with attention to factory-style function for direct replacement service. The P74874S is a specific-fit assembly intended for the listed Ford Expedition and Lincoln Navigator model years.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2002 | Ford | Expedition | 4WD | 5.4L | V8 | N/A | — |
| 2002 | Ford | Expedition | 4WD | 4.6L | V8 | N/A | — |
| 2002 | Lincoln | Navigator | 4WD | 5.4L | V8 | N/A | — |
| 2001 | Ford | Expedition | 4WD | 5.4L | V8 | N/A | — |
| 2001 | Ford | Expedition | 4WD | 4.6L | V8 | N/A | — |
| 2001 | Lincoln | Navigator | 4WD | 5.4L | V8 | N/A | — |
| 2000 | Ford | Expedition | 4WD | 5.4L | V8 | N/A | — |
| 2000 | Ford | Expedition | 4WD | 4.6L | V8 | N/A | — |
| 2000 | Lincoln | Navigator | 4WD | 5.4L | V8 | N/A | — |
| 1999 | Ford | Expedition | 4WD | 5.4L | V8 | N/A | — |
| 1999 | Ford | Expedition | 4WD | 4.6L | V8 | N/A | — |
| 1999 | Lincoln | Navigator | 4WD | 5.4L | V8 | N/A | — |
| No rows match your filter. | |||||||
