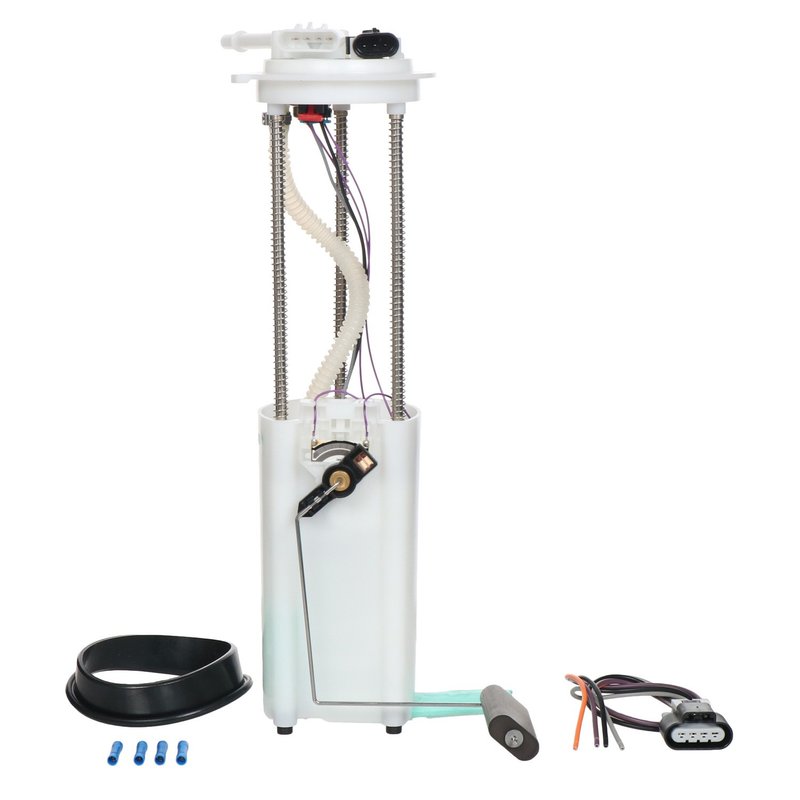

Carter P74902M Fuel Pump Module Assembly

Brand Carter P74902M
Fuel Sending Unit Included Yes
Negative Ground Yes
Connector Color White
Regulator Included No
Terminal Type Blade
Mounting Hardware Included No
Universal Or Specific Fit Specific
Wire Quantity 4
Grade Type Regular
Connector Shape Oval
Gasket Or Seal Included Yes
Housing Material Pom
Terminal Quantity 4
Lock Ring Included No
Connector Gender Male
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick connect
Fuel Filter Included No
Internal Or External Strainer External
Wire Harness Included Yes
Fuel Tank Pressure Sensor Included Yes
Minimum Flow Rating 20
Pump Type Electric
Minimum Pressure 60.0
Outlet Fitting Thread Size 3/8
Voltage 12v
Fits Chevrolet and GMC · 4 vehicles

OE fit, form, function. Built for a specific fit with premium replacement performance.

Electric fuel pump module. Combines the pump, sending unit, and pressure sensor in one assembly.

POM housing. Durable construction with a gasket, strainer, and wire harness included.

Cross-references Autobest F2577A, Delphi FG0285 and Delphi FG0432 for the same application. See all 23.

$143.06Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $143.06
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Carter P74902M Fuel Pump Module Assembly

The Carter P74902M fuel pump module assembly is a specific-fit replacement for select Chevrolet S10 and GMC Sonoma applications. Built for 12V electric operation, it combines the fuel pump, sending unit, strainer, gasket/seal, wire harness, and fuel tank pressure sensor in one service assembly.

Key Features

  • Specific-fit fuel pump module assembly for direct replacement service
  • 12V electric pump with a minimum pressure rating of 60.0
  • Fuel sending unit included for accurate fuel level reporting
  • Wire harness included with 4-wire, blade-terminal connection
  • External strainer included; quick-connect outlet with 3/8 outlet fitting thread size
  • Gasket or seal included for tank sealing during replacement
  • Fuel tank pressure sensor included
  • White oval connector with male connector and terminal design
  • POM housing material and negative ground configuration

Detailed Description

Built for OE fit, form, and function, the Carter P74902M is a regular-grade fuel pump module assembly engineered for direct replacement in 2003-2004 Chevrolet S10 and 2003-2004 GMC Sonoma models. It is a complete in-tank service unit that includes the fuel sending unit, external strainer, wire harness, gasket/seal, and fuel tank pressure sensor, helping streamline fuel system repair on the Chevrolet S10 and GMC Sonoma platform. This part number, P74902M, is a practical choice when replacing a worn pump module, restoring fuel delivery and tank-level signal performance in one assembly.

This part cross-references Delphi FG0285 and Spectra Premium SP3566M for the same application.

What It Helps Address

  • Hard starting caused by weak or failing fuel delivery
  • Engine stalling related to inconsistent pump output
  • Incorrect fuel gauge readings from a worn sending unit
  • Fuel pressure loss from an aging in-tank module
  • Fuel tank pressure sensor faults tied to the module assembly

Installation Notes and Tips

Verify tank access, connector style, and outlet connection before installation. This module uses a specific-fit design with a white oval connector, 4-wire harness, blade terminals, and a quick-connect outlet. Mounting hardware and lock ring are not included, so reuse or replace those components as needed during service. Confirm the tank seal surface is clean before installing the included gasket or seal.

Quality Assurance

Carter fuel systems are built around OE-style fitment and application coverage, with problem-solving features aimed at dependable replacement service. The P74902M is engineered to match the original module layout for the listed Chevrolet S10 and GMC Sonoma applications.

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypeLitersCylindersPositionNotes
2004ChevroletS10—4.3LV6N/A—
2004GMCSonoma—4.3LV6N/A—
2003ChevroletS10Crew Cab Pickup4.3LV6N/A—
2003GMCSonomaCrew Cab Pickup4.3LV6N/A—
Directly replaces or cross-references 23 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Autobest — F2577ADelphi — FG0285Delphi — FG0432Spectra Premium — SP3566MUS Motor Works — USEP3566M402-P3563M530-2660953-510715014923774629202961917949525338726A30187AFS0855SC0208MD11111242TGE3566MM3496163MU1759MU1767RE0855STU430
