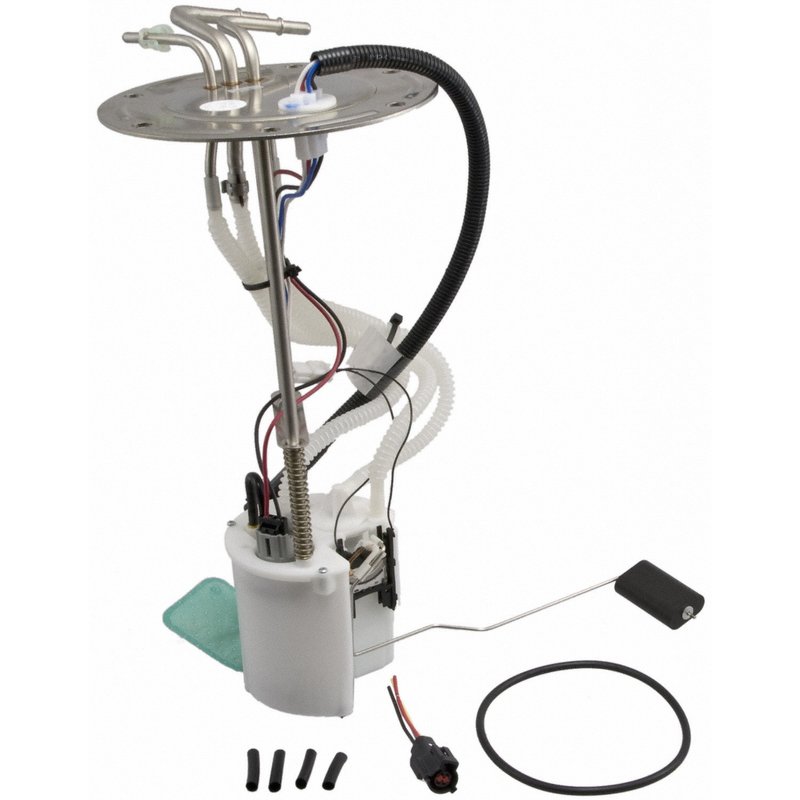

Carter P74976M Fuel Pump Module Assembly - Rear

Reliable Fuel Pump Module Assembly for Ford E-Series Vans

The Carter P74976M fuel pump module assembly is designed specifically for Ford E-150 Econoline, E-150 Econoline Club Wagon, E-250 Econoline, E-350 Econoline, and E-350 Econoline Club Wagon models. This electric fuel pump module ensures consistent fuel delivery with integrated components tailored to your vehicle's requirements.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical grounding
• Pin-type terminals with four male connectors for secure wiring
• External strainer inlet with quick connect outlet for efficient fuel flow
• Includes gasket and wire harness for installation readiness
• Designed for 12-volt electrical systems with a minimum flow rating of 25 and pressure of 45 psi
• Specific fitment for Ford E-Series Econoline vans ensures proper compatibility

Detailed Features and Specifications

The Carter P74976M fuel pump module assembly is an electric pump designed to meet the fuel delivery needs of Ford E-150 and E-350 Econoline vans. It includes a fuel sending unit for accurate fuel level monitoring and a strainer inlet to protect the pump from debris. The module features four male pin terminals with a round connector shape, facilitating a secure and reliable electrical connection. While the regulator is not included, the assembly is engineered to work seamlessly with the vehicle's existing fuel system components. The quick connect outlet and external strainer design support efficient fuel flow and ease of maintenance. This module operates on a 12-volt system and is rated for a minimum flow of 25 and pressure of 45 psi, matching the specifications required for these Ford models.

Compatible Vehicles and Applications

• Ford E-150 Econoline
• Ford E-150 Econoline Club Wagon
• Ford E-250 Econoline
• Ford E-350 Econoline
• Ford E-350 Econoline Club Wagon

This fuel pump module assembly is intended for use in fuel delivery system repairs or replacements on the specified Ford Econoline vans, ensuring proper fuel pressure and flow for optimal engine performance.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sending unit
• Fuel pump noise or failure from clogged or damaged strainer
• Electrical connection problems related to terminal corrosion or damage
• Reduced fuel pressure affecting engine performance and efficiency

Installation Notes and Tips

Installation of the Carter P74976M requires removal of the fuel tank access panel and careful disconnection of the existing fuel pump module. The included gasket and wire harness simplify the replacement process, but mounting hardware and lock ring are not included and may need to be reused or sourced separately. Ensure all electrical connections are secure and terminals are properly aligned to avoid connection issues. Always relieve fuel system pressure before beginning installation and follow vehicle-specific service manual instructions for safety and accuracy.

Quality Assurance and Warranty

Carter fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. While specific warranty details for part number P74976M should be confirmed at the point of purchase, Carter typically offers limited warranties covering defects in materials and workmanship. This ensures reliability and peace of mind when replacing critical fuel system components on your Ford Econoline van.
