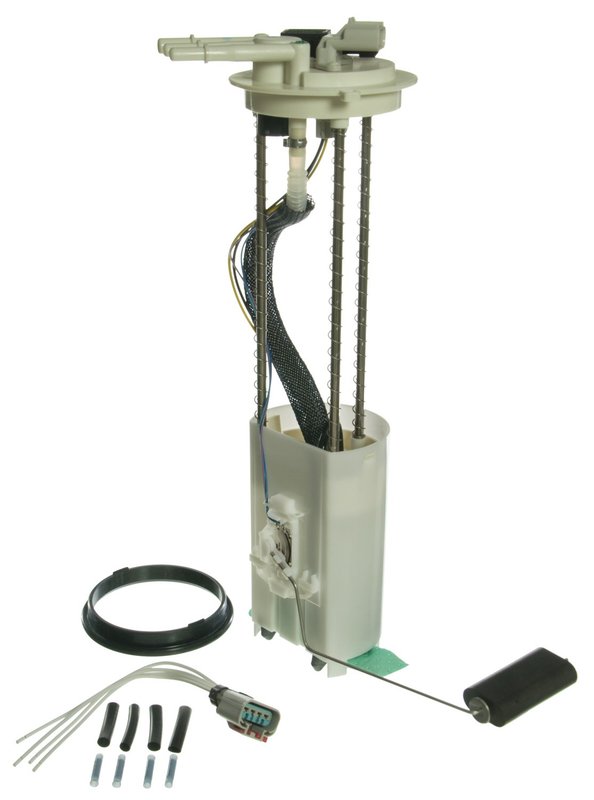

Carter P74990M Fuel Pump Module Assembly

Brand Carter P74990M
Connector Color White
Connector Gender Male
Connector Shape Rectangle
Fuel Filter Included No
Fuel Sending Unit Included Yes
Fuel Tank Pressure Sensor Included Yes
Gasket Or Seal Included Yes
Grade Type Regular
Housing Material POM
Inlet Quantity 1
Inlet Type Strainer
Internal Or External Strainer External
Lock Ring Included No
Minimum Flow Rating 20
Minimum Pressure 60.0
Mounting Hardware Included No
Negative Ground Yes
Outlet Fitting Thread Size 3/8
Outlet Type Quick Connect
Pump Type Electric
Regulator Included No
Strainer Included Yes
Terminal Gender Male
Terminal Quantity 4
Terminal Type Spade
Universal Or Specific Fit Specific
Voltage 12V
Wire Harness Included Yes
Wire Quantity 4
Fits Chevrolet and GMC · 6 vehicles

OE fit, form, and function. A specific fuel pump module assembly for straightforward replacement.

Complete module assembly. Includes the fuel sending unit, strainer, gasket, and wire harness.

Electric 12V pump. Built with a POM housing and quick-connect outlet for reliable fuel delivery.

Cross-references Airtex Fuel Pumps E3527M, Bosch 67435 and Delphi FG0376 for the same application. See all 17.

$55.60Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $55.60
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Carter P74990M Fuel Pump Module Assembly

The Carter P74990M fuel pump module assembly is a specific-fit replacement for select Chevrolet S10 and GMC Sonoma applications. Built for OE fit, form, and function, it combines the electric pump, fuel sending unit, gasket or seal, strainer, wire harness, and fuel tank pressure sensor in one service-ready assembly.

For 2000-2002 Chevrolet S10 and 2000-2002 GMC Sonoma owners, this module supports direct replacement service with the correct connector style, outlet configuration, and 12V electrical setup.

Key Features

  • Specific-fit fuel pump module assembly for select GM compact trucks
  • Electric pump with 12V operation
  • Fuel sending unit included for fuel level reporting
  • Fuel tank pressure sensor included
  • External strainer included with gasket or seal
  • Quick-connect outlet with 3/8 in. outlet fitting thread size
  • White rectangular male connector with 4 terminals and 4 wires
  • POM housing material and negative ground design

Detailed Description

Carter P74990M is a fuel pump module assembly engineered for direct replacement in the fuel tank system. It is built with a specific fit for 2000-2002 Chevrolet S10 and 2000-2002 GMC Sonoma, except export models. The assembly includes the fuel sending unit, external strainer, wire harness, gasket or seal, and fuel tank pressure sensor, helping restore proper fuel delivery and fuel level signal operation in one service part. This part cross-references Bosch 67435 and Delphi FG0376 for the same application.

As a replacement fuel pump module for Chevrolet S10 and GMC Sonoma trucks, the Carter P74990M uses a quick-connect outlet and a male rectangular connector to match the original-style electrical and fuel connections. The module is designed around regular-grade service requirements and a minimum pressure rating of 60.0 with a minimum flow rating of 20.

What It Helps Address

  • Hard starting caused by weak or failing in-tank fuel delivery
  • Engine hesitation or stalling from inconsistent fuel pressure
  • Incorrect fuel gauge readings from a worn sending unit
  • Fuel tank pressure sensor faults tied to module wear
  • Fuel starvation concerns related to a clogged or damaged strainer

Installation Notes and Tips

Verify vehicle fitment before installation: Fits 2000-2002 Chevrolet S10, N/A, except export; Fits 2000-2002 GMC Sonoma, N/A, except export. Confirm connector shape, outlet type, and sensor connections match the original module before removal. Replace the tank seal during service if the original sealing surface is worn, and inspect the fuel tank for contamination that could shorten pump life.

Quality Assurance

Carter Fuel Systems focuses on OE-style fit, form, and function with broad vehicle coverage and problem-solving features. The P74990M follows that approach with application-specific construction and the components needed for a complete module replacement.

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypePositionNotes
2002ChevroletS102.2LL4—N/AExcept Export
2002GMCSonoma2.2LL4—N/AExcept Export
2001ChevroletS102.2LL4—N/AExcept Export
2001GMCSonoma2.2LL4—N/AExcept Export
2000ChevroletS102.2LL4FLEXN/AExcept Export
2000GMCSonoma2.2LL4FLEXN/AExcept Export
Directly replaces or cross-references 17 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E3527MBosch — 67435Delphi — FG0376GMB — 530-2420Spectra Premium — SP3527MUS Motor Works — USEP3527M402-P3527M1500642920154150733371512982515748499A27015C0185MD11111095TGM21734RE0813S
